Orthodontics IPR (Interproximal Reduction) Strips set

  1. JinDELL Product Catalog | Orthodontics IPR (Interproximal Reduction) Strips
  2. Orthodontics IPR (Interproximal Reduction) Strips set

Orthodontics IPR (Interproximal Reduction) Strips set

Orthodontics IPR (Interproximal Reduction) Strips set
Detail

Premium Ortho-TORQ Contra-Angles
& Orthodontics IPR (Interproximal Reduction) Strips Set

Premium Ortho TORQ Contra-Angle Packing Set Contains:

  • Premium Ortho TORQ Contra-Angle Handpiece (4:1 Gear Ratio Reduction) x 1 set

  • Double-sided Orthodontics IPR strips, 5 models of 2 pieces each, a total of 10 pieces (Strips Model: 90HD, 60HD, 40HD, 25HD and 15HD)

  • Manual Operating Bar for Double-sided Orthodontics IPR strips x 1 bar

  • Manual Operating of Single-sided Orthodontics IPR strips x 2 pcs

  • Orthodontics IPR strips measuring ruler (0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm, 0.40mm, 0.50mm) x 1 set.

Orthodontics IPR (Interproximal Reduction) Strips & Premium Ortho-TORQ Contra-Angles Set

Manual Operating Orthodontics IPR Strips Set Contains:

  • Double-sided orthodontics IPR Strips, 5 models of 1 piece each, a total of 5 pieces (Strips Model: 90HD, 60HD, 40HD, 25HD and 15HD)

  • Manual Operating Bar for Double-sided Orthodontics IPR Strips x 1 bar

  • Manual Operating of Single-sided Orthodontics IPR Strips x 1 pcs



Orthodontics IPR Strips Measuring Ruler:
(0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm, 0.40mm, 0.50mm)






with Contra Angle & Manual Operating Bar usage:

Double Sided Orthodontics IPR strips include:
* 90 micron - for use as a saw for opening contacts and Separation
* 60 micron - for Reduction
* 40 micron - for Contouring
* 25 micron - for Finishing
* 15 micron - for Pre-Polishing

Features:

  • Flexible strips, diamond-coated on both sides

  • Proximal contouring, finishing, and polishing of both adjacent teeth in a single procedure

  • No injuries to patient (lips) or dentist (fingers)

  • Available singly or in a set

  • Fully autoclavable strips.

IPR Strips Slice Size

Fillion D. Apport de la sculpture amélaire interproximale à l'orthodontie de l'​adulte (deuxième partie). Rev Orthop Dento Faciale 27 : 189-214, 1993.

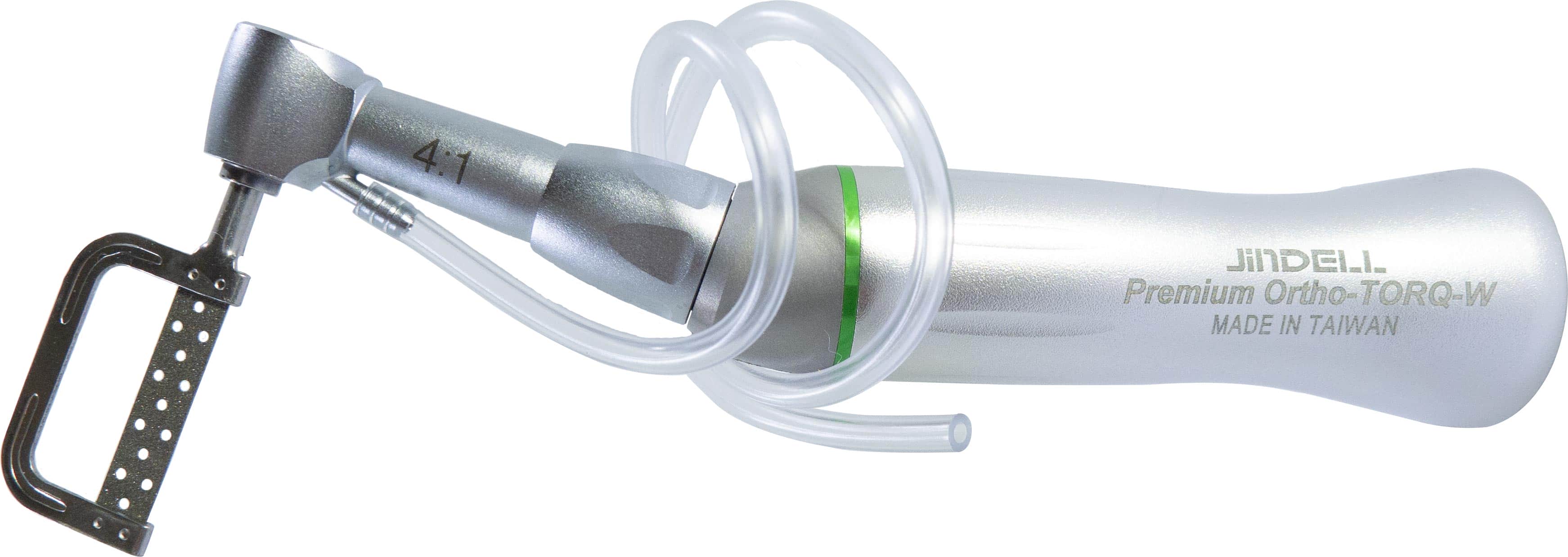

4:1 IPR Contra-Angles Handpiece (External Cooling)
Model Name: Premium Ortho-TORQ-W
Premium Ortho TORQ-W

Features:

  • JinDELL's Premium Ortho-Torq-W is a 4:1 gear ratio reduction without illumination Contra-Angles, with a pedo head, Vertical Reciprocating Motion, Stroke Length 1.4 mm, Aluminum material, and External irrigation. This Contra-Angles handpiece works with electrical or air-driven motors and uses a universal "E" type connection.

  • Speed Type / Ratio: Low Speed / 4:1 Reduction (Green Ring).

  • Chuck Type: With Tip Lock Mechanism.

  • Maximum Speed: 10,000 min-1.

  • Irrigation Type: External Irrigation on models compatible.

  • Motion: Vertical Reciprocating.

  • Stroke Length: 1.4 mm.

  • Shape: Contra Angle.

  • Compatible Profin / EVA Tips / Orthodontics Strips.

  • Sterilization: Autoclavable.

  • Power Type: Pneumatic / Electric.

  • Motor Connection Type: ISO E-Type.

  • 12 months Limited warranty.

*Orthodontics IPR strips not included*

Premium IPR Orthodontic Strips Set





It is important to proceed systematically following a coarse to fine sequence in selecting grits. Unlike manual strips, the Ortho-Strip system provides rapid, controlled enamel reduction followed by polishing without unnecessary removal of healthy tooth substance.
