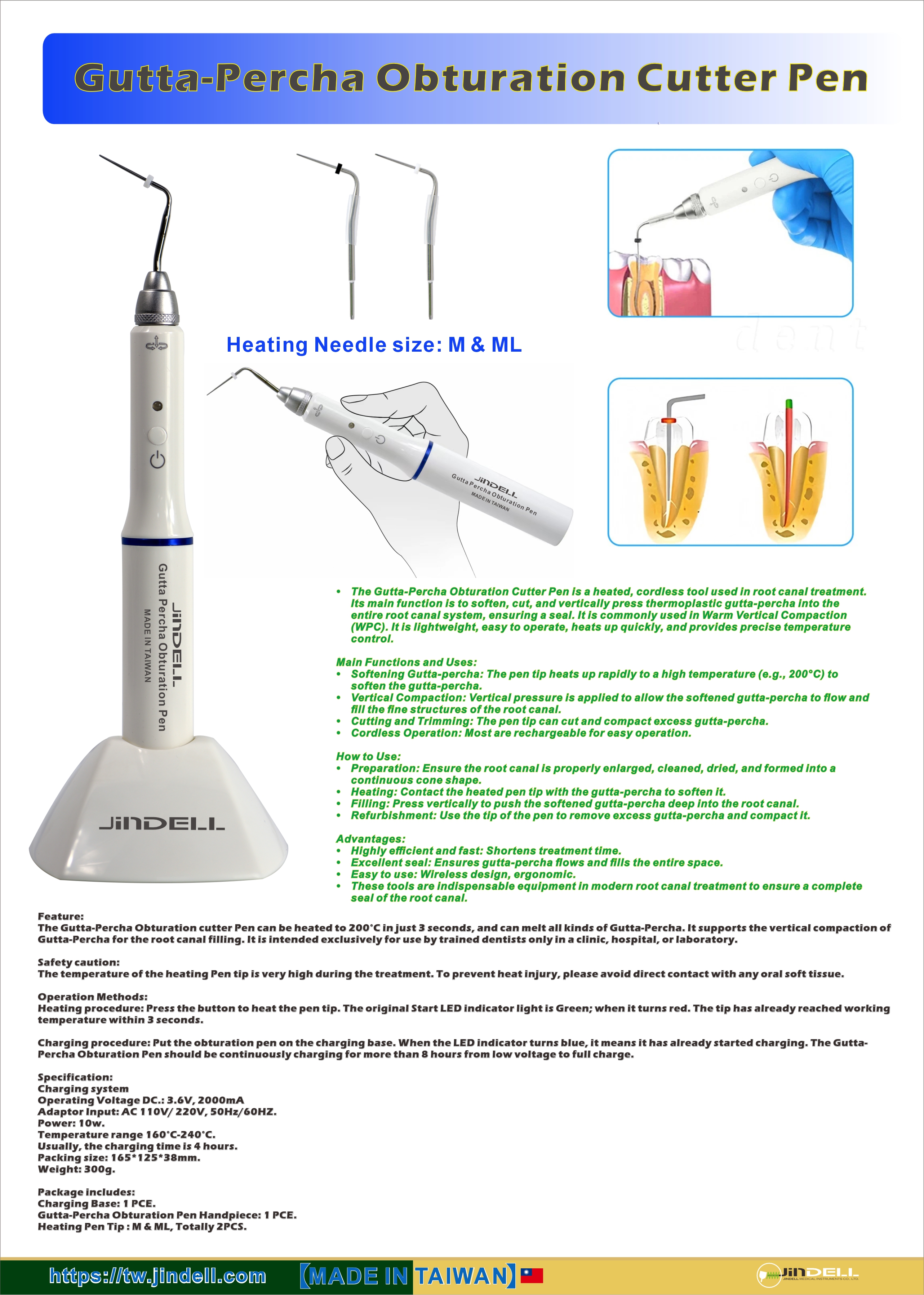

The Gutta-Percha Obturation Cutter Pen is a heated, cordless tool used in root canal treatment. Its main function is to soften, cut, and vertically press thermoplastic gutta-percha into the entire root canal system, ensuring a seal. It is commonly used in Warm Vertical Compaction (WPC). It is lightweight, easy to operate, heats up quickly, and provides precise temperature control.
Main Functions and Uses:
Softening Gutta-percha: The pen tip heats up rapidly to a high temperature (e.g., 200°C) to soften the gutta-percha.
Vertical Compaction: Vertical pressure is applied to allow the softened gutta-percha to flow and
fill the fine structures of the root canal.
Cutting and Trimming: The pen tip can cut and compact excess gutta-percha.
Cordless Operation: Most are rechargeable for easy operation.
How to Use:
Preparation: Ensure the root canal is properly enlarged, cleaned, dried, and formed into a
continuous cone shape.
Heating: Contact the heated pen tip with the gutta-percha to soften it.
Filling: Press vertically to push the softened gutta-percha deep into the root canal.
Refurbishment: Use the tip of the pen to remove excess gutta-percha and compact it.
Advantages:
Highly efficient and fast: Shortens treatment time.
Excellent seal: Ensures gutta-percha flows and fills the entire space.
Easy to use: Wireless design, ergonomic.
These tools are indispensable equipment in modern root canal treatment to ensure a complete
seal of the root canal.
Features:
-
The Gutta-Percha Obturation Cutter Pen can be heated to 200°C in just 3 seconds, and can melt all kinds of Gutta-Percha. It supports the vertical compaction of Gutta-Percha for the root canal filling. It is intended exclusively for use by trained dentists only in a clinic, hospital, or laboratory.
Safety caution:
-
The temperature of the heating pen tip is very high during the treatment. To prevent heat injury, please avoid direct contact with any oral soft tissue.
Operation Methods:
-
Heating procedure: Press the button to heat the pen tip. The original Start LED indicator light is Green; when it turns red, it means the heating procedure is running. The tip has already reached working temperature within 3 seconds.
Charging procedure:
-
Put the Gutta-Percha obturation cutter pen on the charging base. When the LED indicator turns blue, it means charging has already started. The Gutta-Percha Obturation cutter pen should be continuously charging for more than 8 hours from low voltage to full charge.
Specification:
-
Operating Voltage DC.: 3.6V, 2000mA.
-
Adaptor Input: AC 110V/ 220V, 50Hz/60HZ.
-
Power: 10W.
-
Temperature range 160°C-240°C.
-
Usually, the charging time is 4 hours.
-
Packing size: 165*125*38mm.
-
Weight: 300g.
Package includes:
-
Charging Base: 1 PCE.
-
Gutta-Percha Obturation cutter Pen Handpiece: 1 PCE.
-
Heating Pen Tip: M & ML, two pcs in total.
