TITANIUM NON-OPTIC HIGH-SPEED HANDPIECE
Lightweight Titanium.
Multiple Connection Options.
The JinDELL Premium 700 PLUS series is a titanium non-optic high-speed dental handpiece platform available with Standard and Mini Head options, M4, B2 and QD connection configurations, four-nozzle spray cooling and anti-retraction support.
DESIGNED AROUND DAILY PRACTICE
Lightweight, Powerful and Easy to Integrate
Lightweight Titanium
The titanium grip combines low weight, strength and corrosion resistance, helping reduce handling fatigue during daily procedures.
High Cutting Output
M4 and B2 fixed-connection models deliver higher output, while QD models enable handpiece exchange with stable performance.
Effective Cooling
All models use four asymmetrical spray ports to cool around the bur and support a clearer operating field.
Connection Flexibility
Standard and Mini Head models are both available in M4, B2 and QD connection configurations.
LIGHTWEIGHT TITANIUM
Light in the Hand. Stable in Performance.
The medical-grade titanium grip, stainless-steel head and visible metal components are designed for lightweight handling, durability and high-temperature sterilization.
As low as 38 g
Actual weight depends on head size and connection configuration.
OUTPUT BY CONFIGURATION
Powerful and Stable Cutting Performance
Under the specified 3.5 bar test condition, Standard M4 / B2 models provide 32 W, Standard QD provides 28 W, Mini M4 / B2 provides 29 W and Mini QD provides 25 W.
FOUR-NOZZLE COOLING
See More. Cool Better.
Four asymmetrical spray ports mix air and water around the bur, helping control heat build-up and maintain visibility during treatment.
HYGIENE SUPPORT
Anti-Retraction Sealed Head
The integrated sealed-head design helps reduce fluid and contaminant backflow. M4 fixed-connection models and the QDJ-M4 quick coupling include water-line non-return valve and filter design.
QUIET MEANS COMFORT
Low Noise, Low Vibration Operation
Ceramic ball bearings and precision dynamic balancing support smooth rotation, helping improve the experience for both clinicians and patients.
Standard ≤57 dB(A) ｜ Mini ≤59 dB(A)
STANDARD OR MINI?
Choose the Head for Your Clinical Workflow
Choose the Standard Head for general restorative and cutting procedures. Choose the Mini Head when posterior access, visibility or pediatric use is the priority.
| Feature | Standard Head | Mini Head |
|---|---|---|
| Series name | Premium 700 PLUS | Premium 700 PLUS M |
| Best for | General restorative and cutting procedures | Posterior access and pediatric dentistry |
| Head size | Ø12.1 × H13.3 mm | Ø10.6 × H12.5 mm |
| M4 / B2 power | 32 W @ 3.5 bar | 29 W @ 3.5 bar |
| QD power | 28 W @ 3.5 bar | 25 W @ 3.5 bar |
| Speed | 300,000–400,000 min−1 | 360,000–450,000 min−1 |
| Noise | ≤57 dB(A) | ≤59 dB(A) |
| FG bur | Ø1.6 mm, max. 25 mm length | Ø1.6 mm, max. 21 mm length |

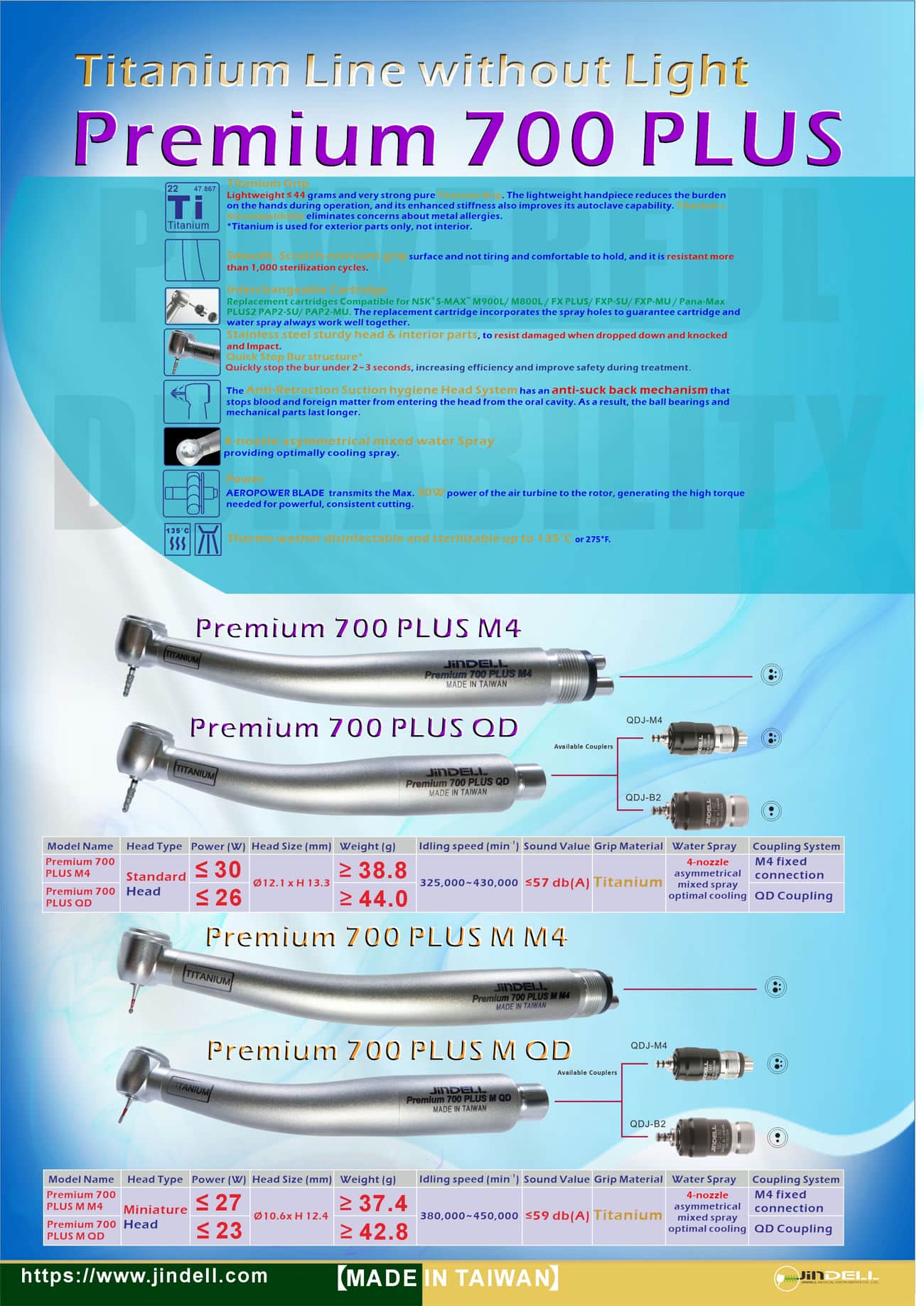

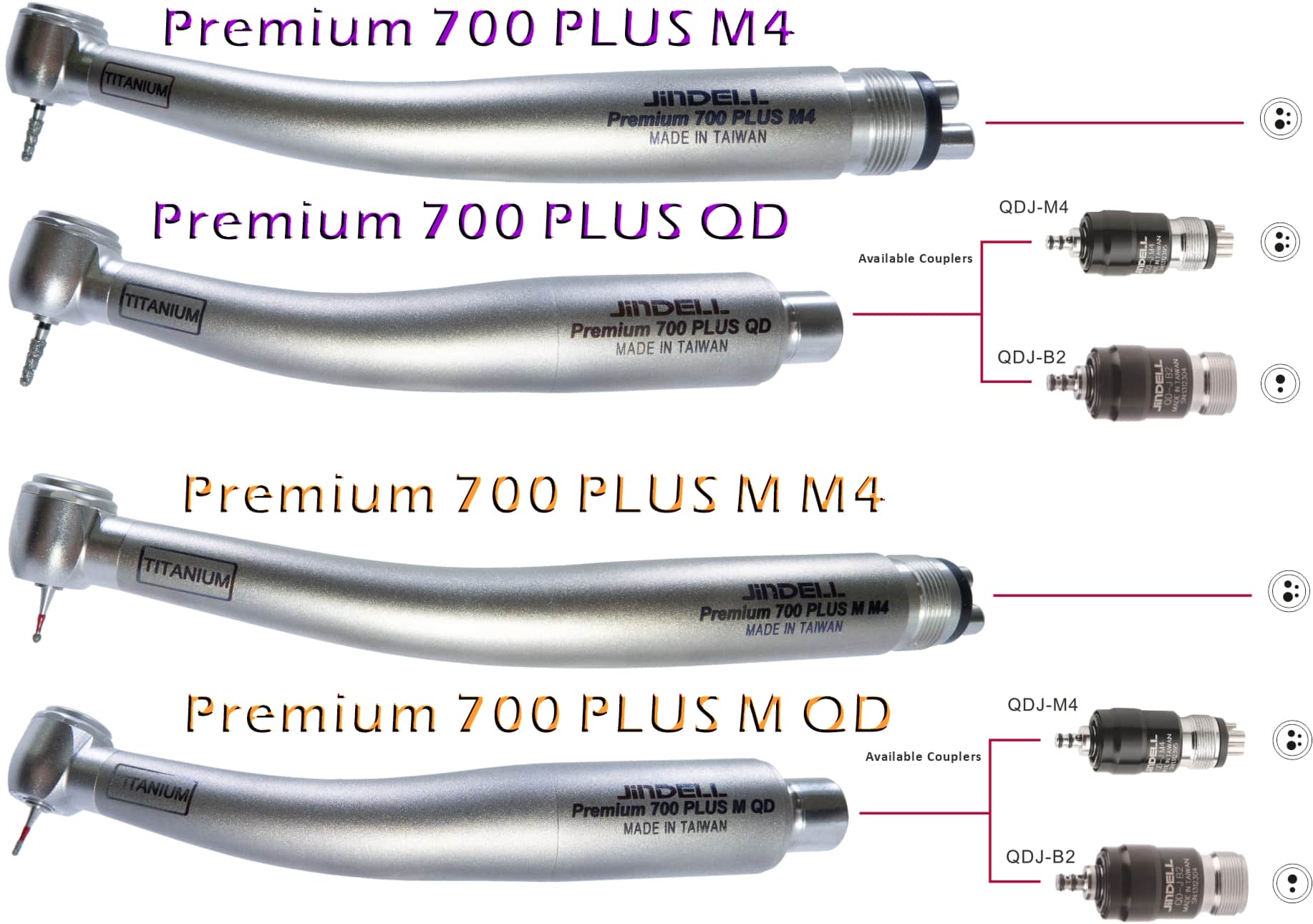

SIX MODEL CONFIGURATIONS
Select the Head and Connection Type
Standard and Mini Head models are both available in M4, B2 fixed-connection and QD quick-coupling versions. Weight and power vary by configuration.

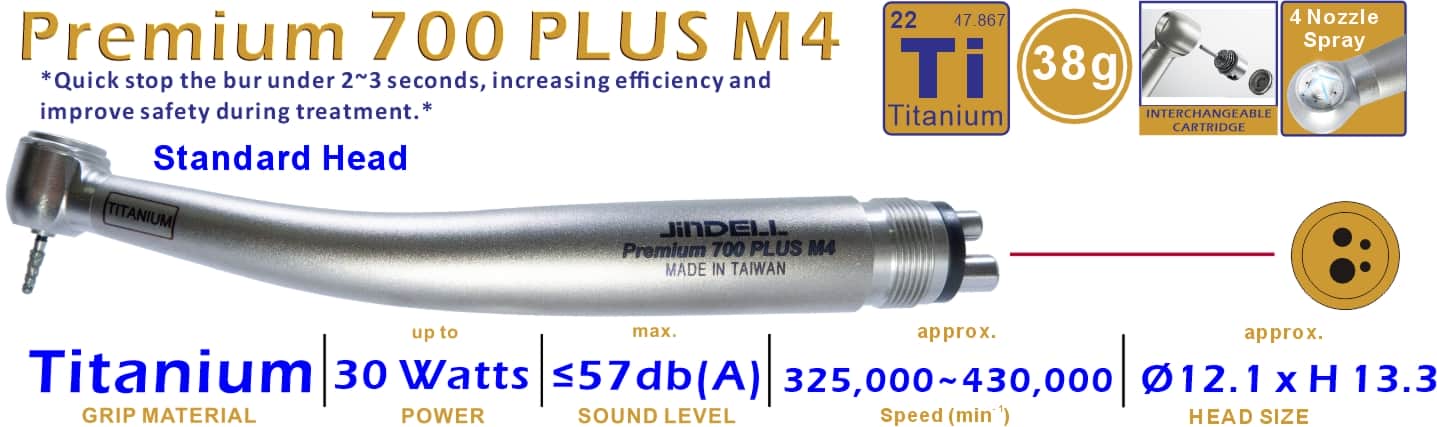

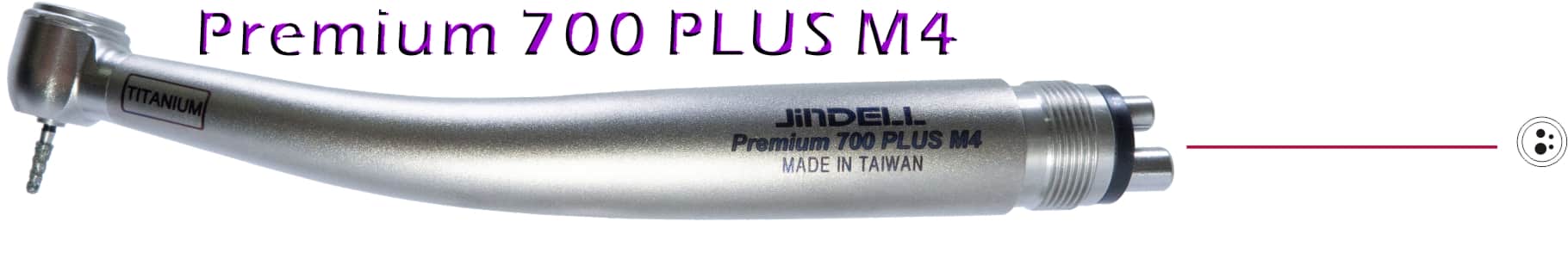

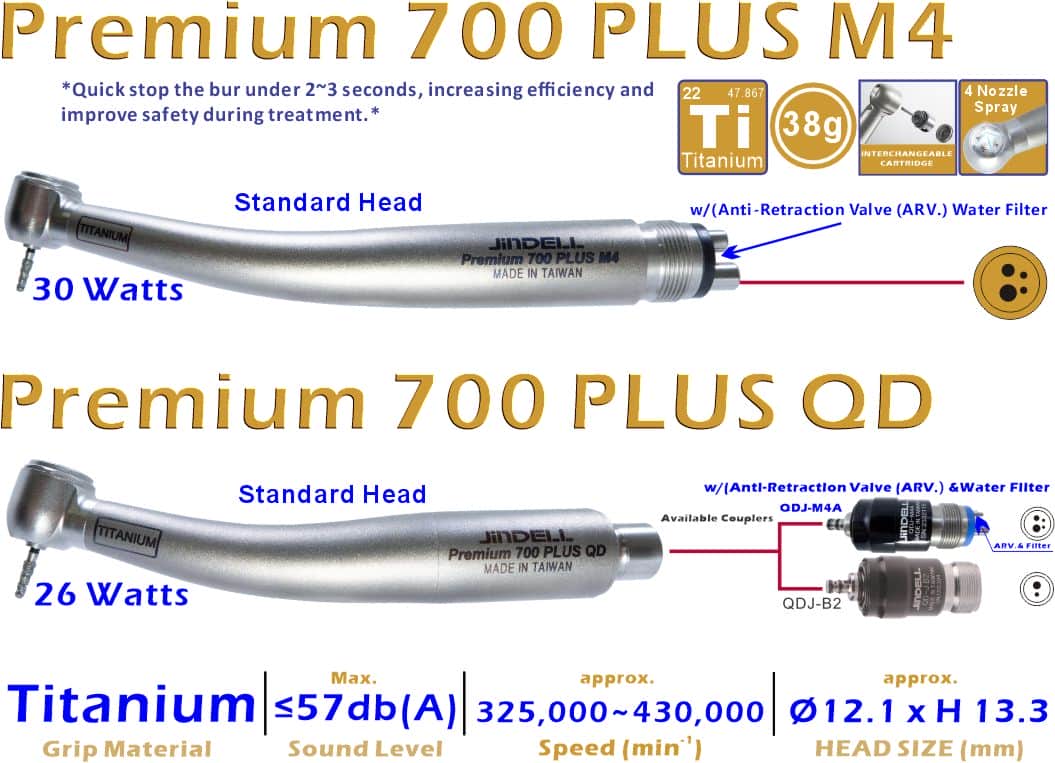

700 PLUS M4
Standard Head / M4 4-hole fixed connection
32 W｜39 g
700 PLUS B2
Standard Head / B2 2-hole fixed connection
32 W｜39 g

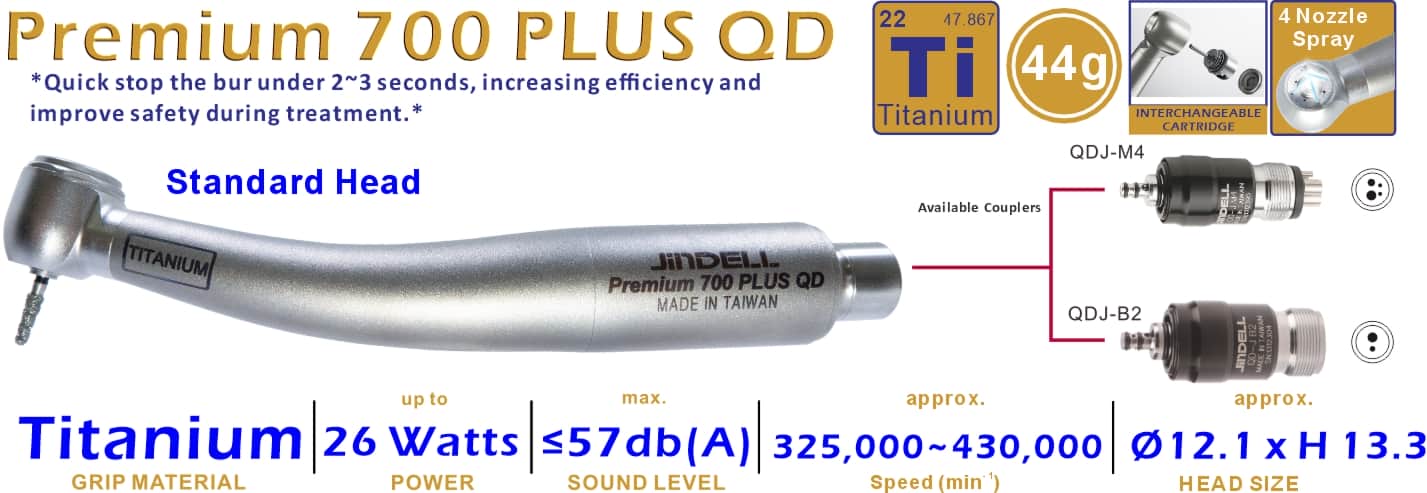

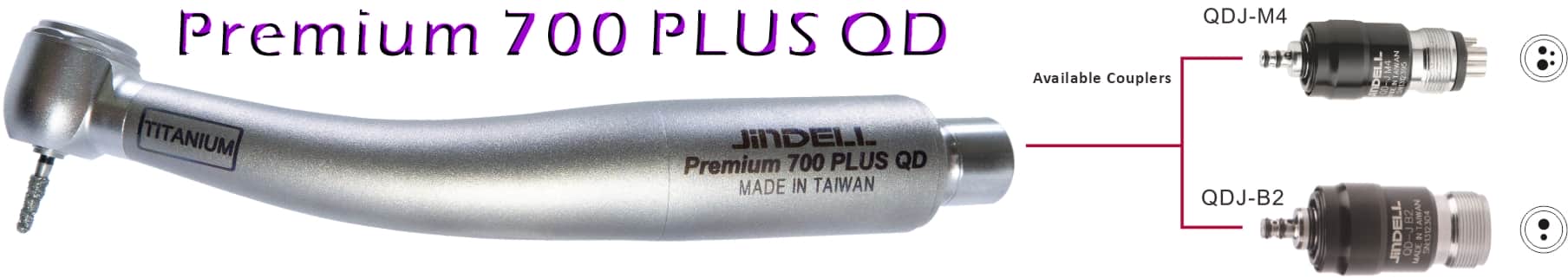

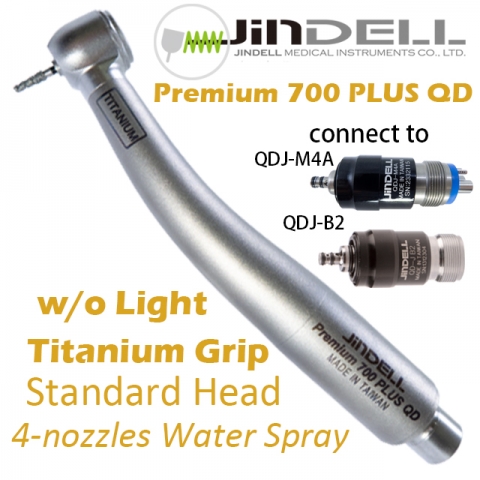

700 PLUS QD
Standard Head / QD quick coupling
28 W｜44 g

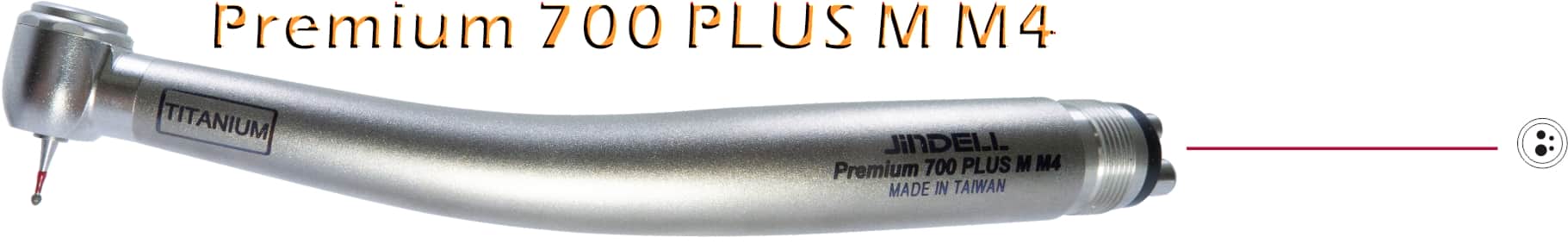

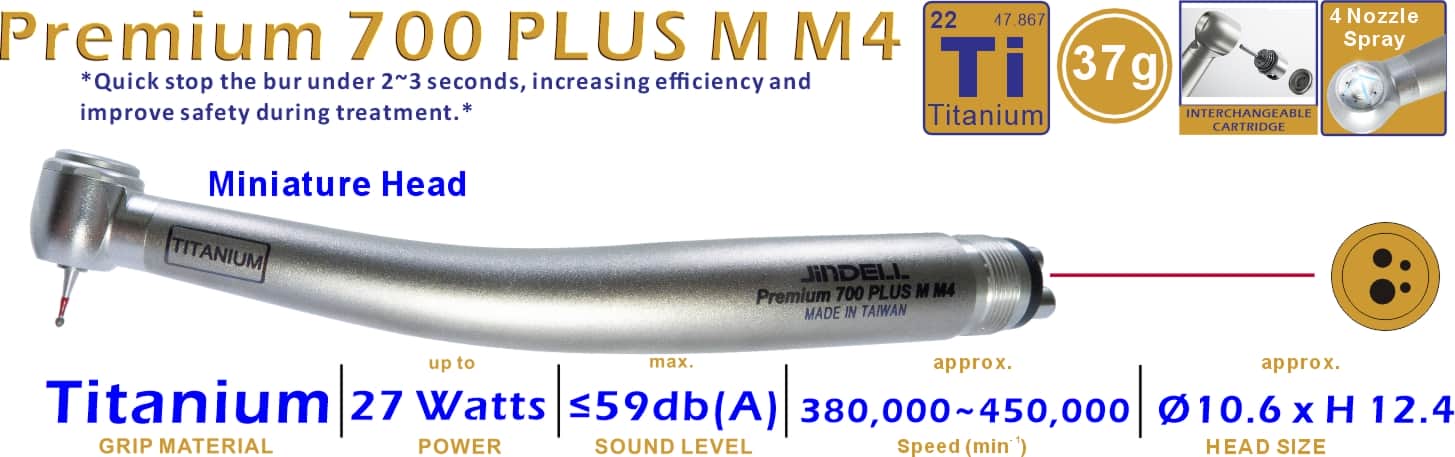

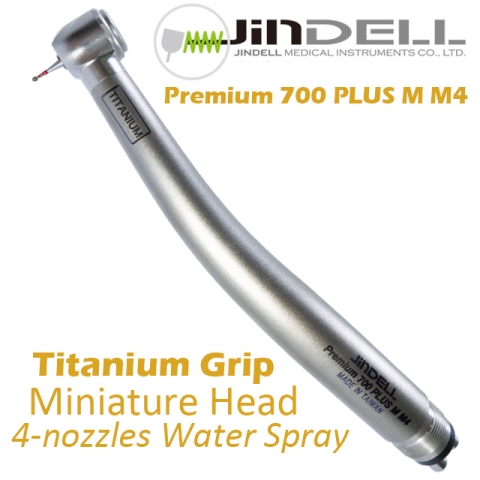

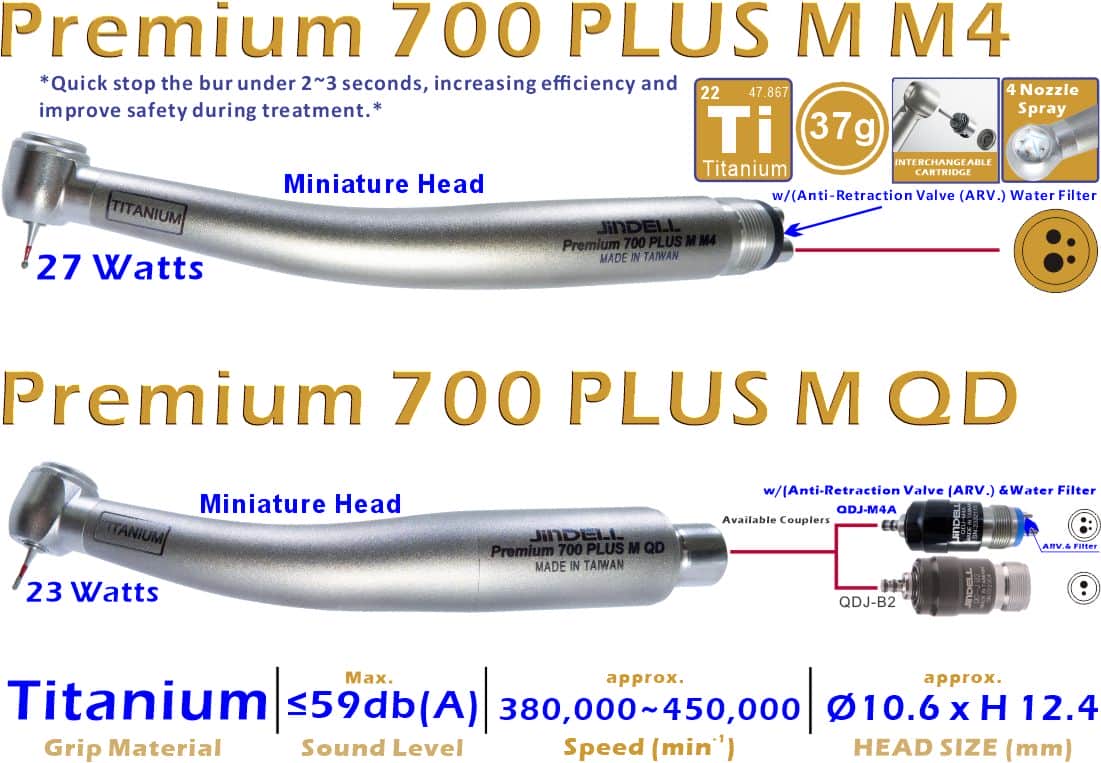

700 PLUS M M4
Mini Head / M4 4-hole fixed connection
29 W｜38 g
700 PLUS M B2
Mini Head / B2 2-hole fixed connection
29 W｜38 g

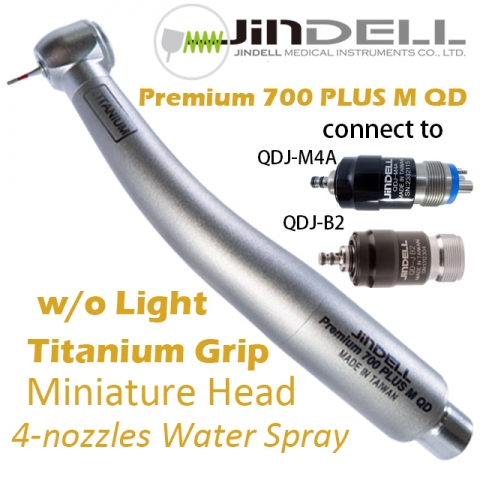

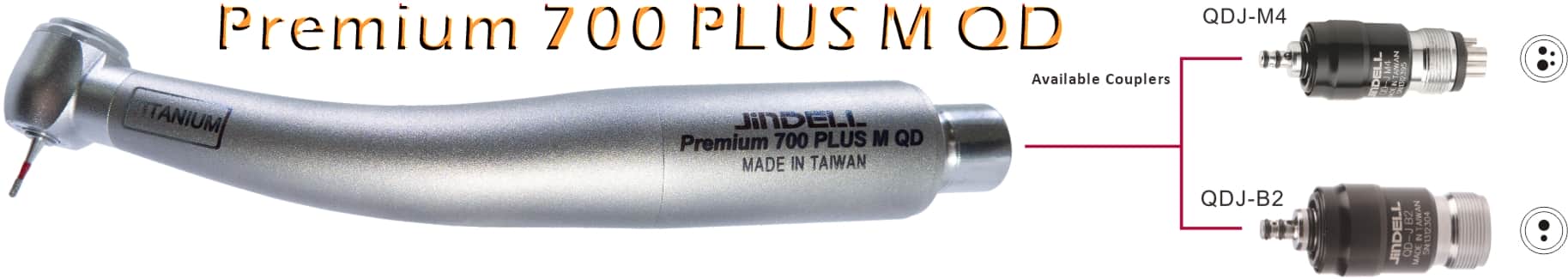

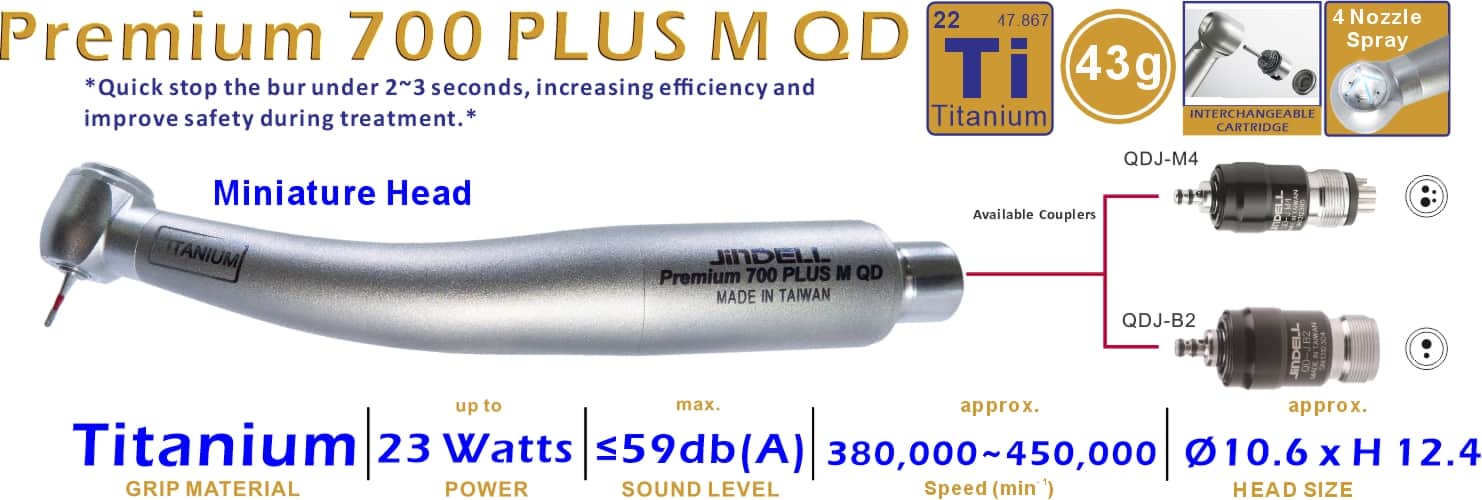

700 PLUS M QD
Mini Head / QD quick coupling
25 W｜43 g

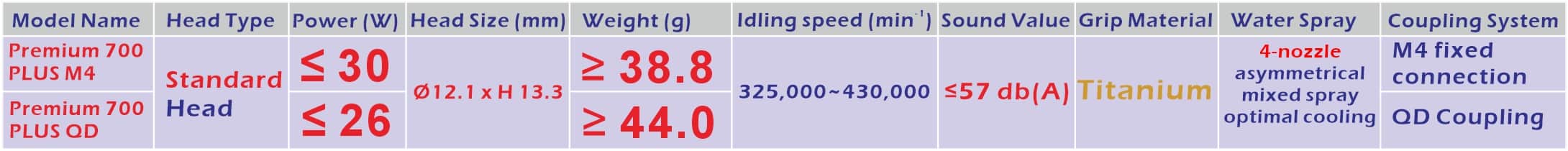

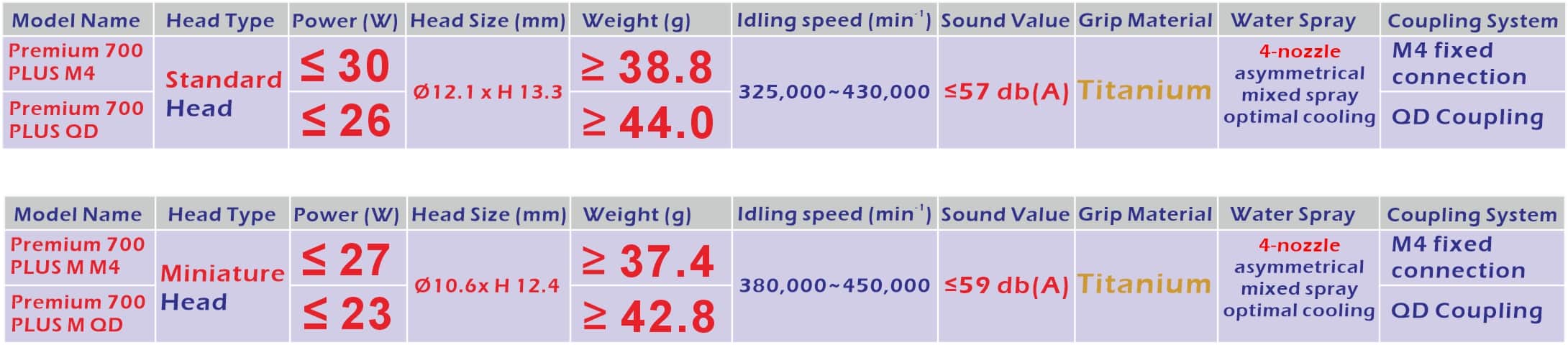

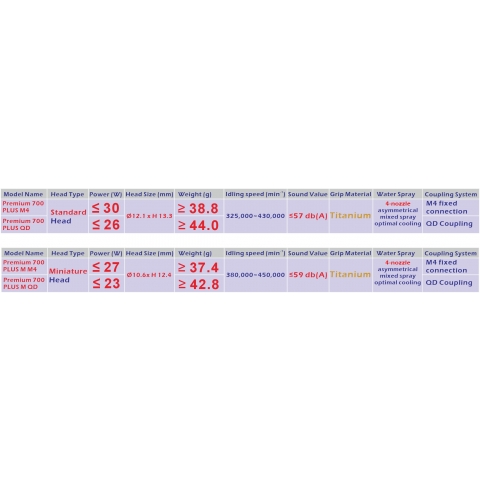

TECHNICAL SPECIFICATIONS
Built for Reliable Daily Use
Performance values are reference values measured under JinDELL®-specified test conditions and may vary with operating pressure, tubing, and configuration. Warranty coverage follows official warranty terms and normal-use conditions. Always follow the current instructions for use, cleaning, lubrication, and sterilization.
NSK® and FX PLUS are names or trademarks of their respective owners. Compatibility information refers only to the specified mechanical compatibility option and does not imply endorsement, authorization or affiliation. Confirm the exact applicable model with JinDELL® before ordering.
CONNECTION OPTIONS
M4, B2 or QD?
- M4: 4-hole fixed connection with separate drive air, exhaust air, water, and chip air.
- B2: 2-hole fixed connection for compatible two-hole handpiece tubing.
- QD: compatible with Quick-disconnect swivel coupling of QDJ-M4 / QDJ-B2.
The connection type must match the dental-unit tubing and coupling specification. Confirm the correct configuration with JinDELL® before ordering.
CHOOSE THE RIGHT ILLUMINATION PLATFORM
Non-Optic or Fiber-Optic?
Premium 700 PLUS
Non-optic design with M4, B2, and QD configurations for clinics that do not require handpiece illumination or prefer tubing flexibility.
Ti-Premium LUX 700 PLUS
Fiber-optic version for clinicians who need LED coupling illumination and improved intraoral visibility.
View the fiber-optic version →ENGINEERED IN TAIWAN
Why JinDELL?
JinDELL has developed and manufactured dental instruments in Taiwan since 1971, supporting dental professionals, international distributors, and OEM/ODM partners.
- Dental instrument manufacturing experience in Taiwan
- ISO 13485 quality management system
- Multiple tubing and quick-coupling configurations
- Replaceable cartridge and technical support
- OEM/ODM and international distributor support
FREQUENTLY ASKED QUESTIONS
Product Questions
What is the difference between Standard Head and Mini Head?
The Standard Head is designed for general cutting output. The Mini Head has a smaller profile to support posterior access, visibility, and pediatric procedures.
How should I choose between M4, B2, and QD?
Choose M4 4-hole or B2 2-hole fixed connection according to your dental-unit tubing. Choose the QD version with QDJ-M4 quick coupling when faster handpiece attachment and removal is preferred.
Does this series include illumination?
No. Premium 700 PLUS is a non-optic handpiece series. If fiber-optic illumination is required, consider the Ti-Premium LUX 700 PLUS series.
Can the handpiece be sterilized at 135°C?
Yes. The handpiece is autoclavable or thermo-disinfectable up to 135°C (275°F). Follow the current instructions for use, cleaning, lubrication, and sterilization.
What is the warranty period?
Bearings and cartridge are covered by a 12-month limited warranty. Other handpiece body parts are covered by a 24-month limited warranty, subject to official warranty terms and normal-use conditions.
