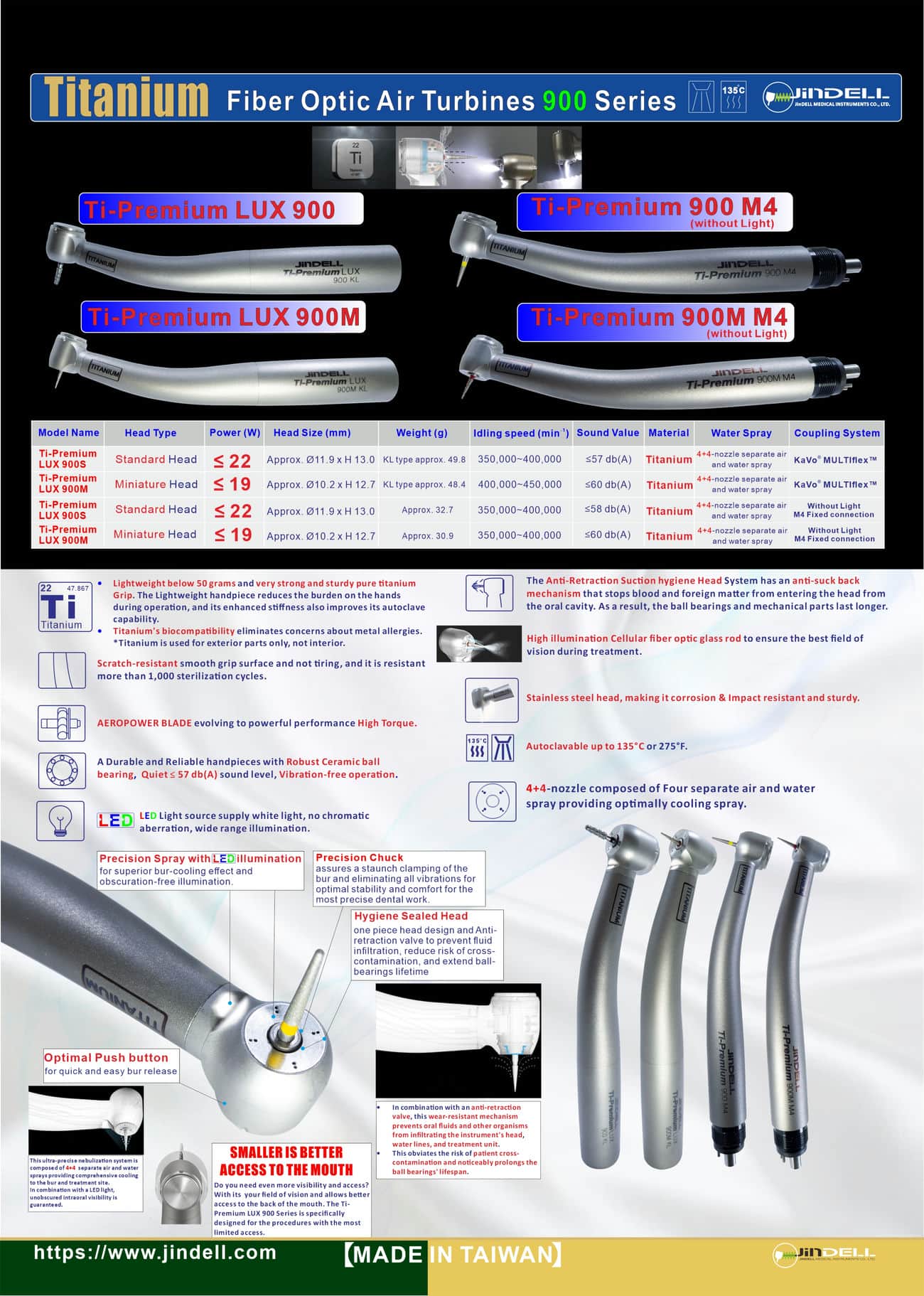

Ti-Premium LUX 900 — REAL TITANIUM Fiber-Optic Air-Turbine (4+4 Water Spray)
-
Titanium grip + stainless-steel head for lightweight strength and scratch-resistant finish.
-
4+4 separate air & water nozzles (ultra-precise atomizing) for integral, even cooling with very low noise.
-
Anti-retraction sealed head + non-return valve to reduce cross-contamination and protect bearings.
-
Quiet operation: ≤57 dB(A) (900) / ≤60 dB(A) (900M); 350k–450k rpm ranges.
-
Fiber-optic glass rod with LED in coupling for clear intraoral visibility.
-
Autoclavable up to 135 °C (275 °F); FG Ø1.6 mm burs (900 up to 25 mm; 900M short shank up to 21 mm).

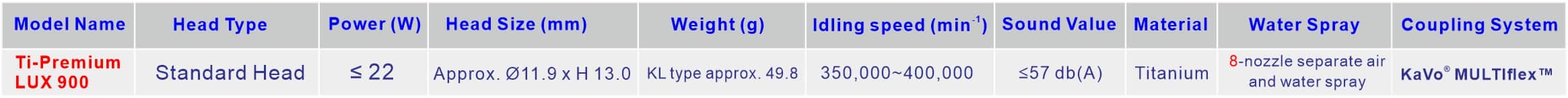

Technical Specifications Comparison Table
| Specification | Ti-Premium LUX 900 (Standard Head) | Ti-Premium LUX 900M (Small Head) |
|---|---|---|
| Head Size | Ø11.9 × H13.0 mm | Ø10.2 × H12.7 mm |
| Weight | ≈49.8 g | ≈48.4 g |
| Speed (Idling) | 350,000 – 400,000 min⁻¹ | 400,000 – 450,000 min⁻¹ |
| Power/Torque | Up to 22 W* | Up to 19 W* |
| Noise Level | ≤57 dB(A) | ≤60 dB(A) |
| Cooling System | 4+4 separate air & water spray | 8-nozzle separate air & water spray |
| Bur Compatibility | FG Ø1.6 mm, up to 25 mm length | FG Ø1.6 mm, short-shank up to 21 mm |
| Optics | Fiber-optic glass rod, LED in coupling | Fiber-optic glass rod, LED in coupling |
| Connection | KaVo® MULTIflex™ type | KaVo® MULTIflex™ type |
| Bearings | Ceramic | Ceramic |
| Chuck Type | Push-button | Push-button |
| Sterilization | Washer-disinfectable; autoclavable 135 °C / 275 °F | Washer-disinfectable; autoclavable 135 °C / 275 °F |
| Warranty | ≥12-month limited warranty | ≥12-month limited warranty |
*Performance values per rated pressure conditions.
Technical Specifications Comparison Table
| Specification | Ti-Premium LUX 900 (Standard Head) | Ti-Premium LUX 900M (Small Head) |
|---|---|---|
| Head Size | Ø11.9 × H13.0 mm | Ø10.2 × H12.7 mm |
| Weight | ≈49.8 g | ≈48.4 g |
| Speed (Idling) | 350,000 – 400,000 min⁻¹ | 400,000 – 450,000 min⁻¹ |
| Power/Torque | Up to 22 W* | Up to 19 W* |
| Noise Level | ≤57 dB(A) | ≤60 dB(A) |
| Cooling System | 4+4 separate air & water spray | 8-nozzle separate air & water spray |
| Bur Compatibility | FG Ø1.6 mm, up to 25 mm length | FG Ø1.6 mm, short-shank up to 21 mm |
| Optics | Fiber-optic glass rod, LED in coupling | Fiber-optic glass rod, LED in coupling |
| Connection | KaVo® MULTIflex™ type | KaVo® MULTIflex™ type |
| Bearings | Ceramic | Ceramic |
| Chuck Type | Push-button | Push-button |
| Sterilization | Washer-disinfectable; autoclavable 135 °C / 275 °F | Washer-disinfectable; autoclavable 135 °C / 275 °F |
| Warranty | ≥12-month limited warranty | ≥12-month limited warranty |
*Performance values per rated pressure conditions.
Models & Connections
-
Ti-Premium LUX 900 KL — KaVo® MULTIflex™-type fiber-optic, standard head. JinDELL
-
Ti-Premium LUX 900M KL — KaVo® MULTIflex™-type fiber-optic, small head. JinDELL
Sterilization & Hygiene
Washer-disinfectable and autoclavable up to 135 °C / 275 °F; anti-retraction sealed head with non-return valve. JinDELL
Warranty & Service
≥12-month limited warranty on the LUX 900 series per page details.

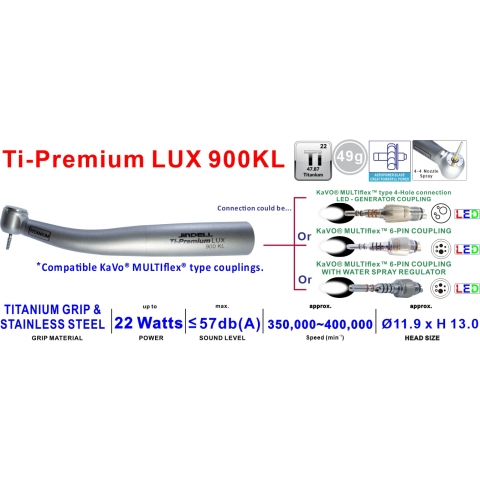

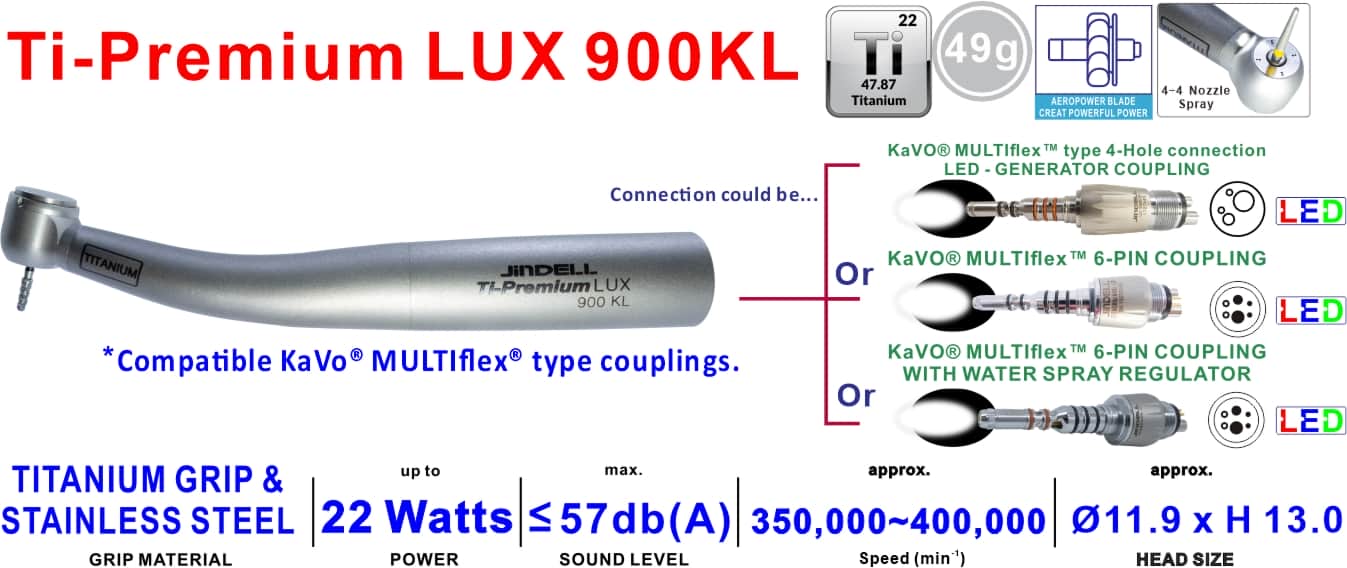

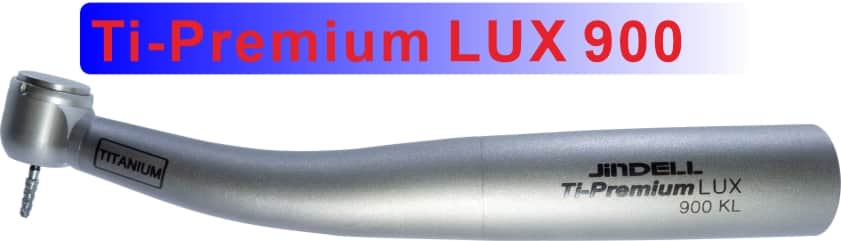

KaVo® MULTIflex™ Type connection Fiber Optic Handpiece with Titanium Grip & Standard Head.
Model Name: Ti-Premium LUX 900 KL

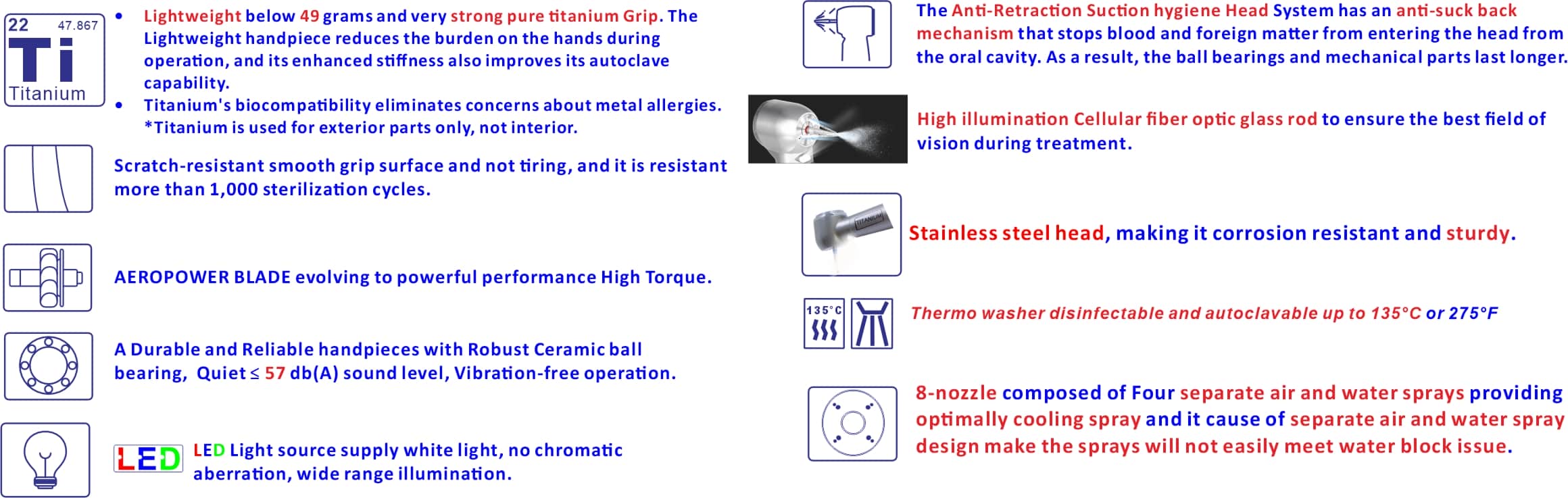

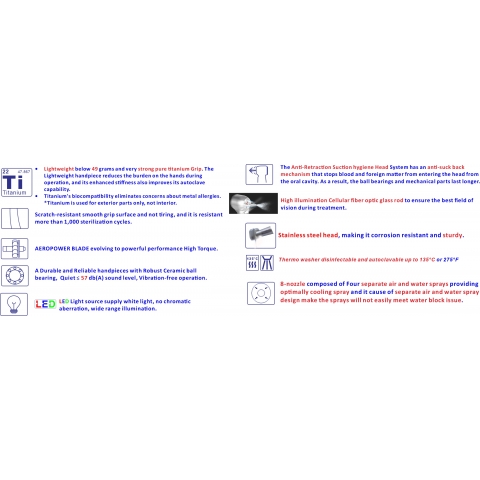

Features:
- High robustness and Lightweight due to the Titanium Grip and stainless-steel strong head and surface finish.
- Standard Head Dimensions (Ø11.9 mm x H13.0mm) ensure ergonomic comfort and precise results while guaranteeing an optimum view at all times.
- Combined with an LED light Coupling, a clear intraoral visibility is guaranteed.

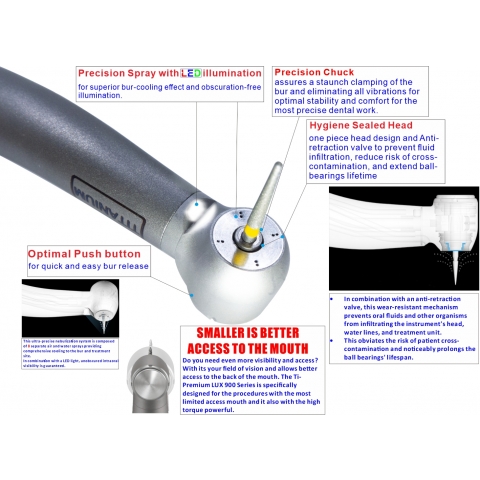

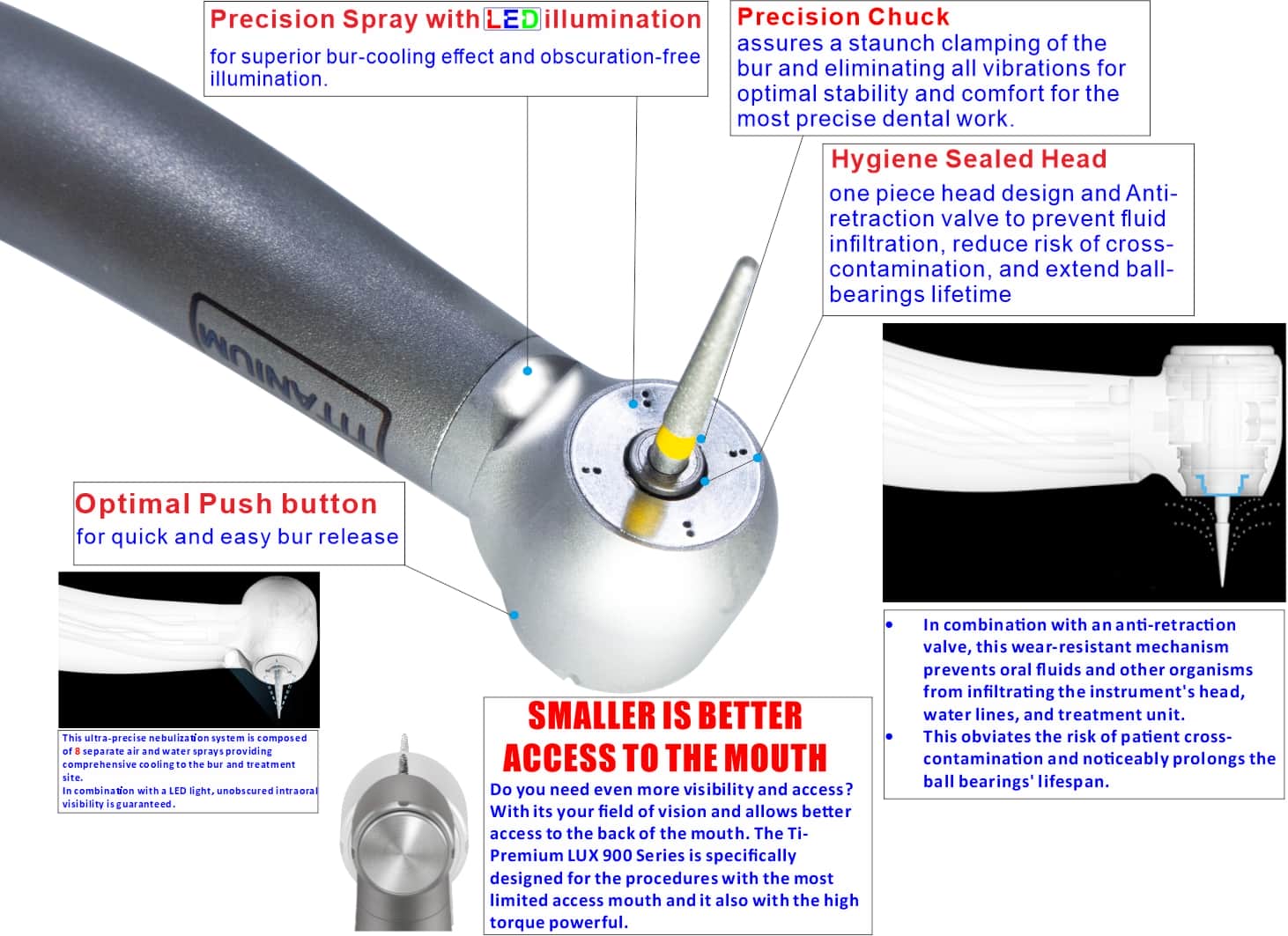

- Anti-retention suction hygiene sealed head - combined with a non-return valve, this wear-resistant mechanism prevents oral fluids and other organisms from seeping into the instrument head, water pipes, and treatment equipment. Avoids the risk of cross-contamination in the patient and prolongs the life of the ball bearings.
- Unbelievably low noise output is achieved as a result of the 4+4-nozzle spray. The ultra-precise atomizing system consists of separate air and water sprays, each with 4+4 nozzles, providing integral optimal cooling of the treatment site.
- Quiet, vibration-free operation ≦57 dB (A) Sound level.
- Idling speed 350,000~400,000 min-1.
- Push button Chuck & Back cap.
- Robust Premium Quality Ceramic ball bearings - wear resistant, give the handpiece a longer useful life, and reduce noise levels.
- Glass rod Fiber optic.
- 22-watt power*.
- Lightweight: 49.8 grams.
- Available to KaVo® MULTIflex type Coupling**.
- A scratch-resistant surface improves aesthetics even further – and extends their lifespan.
- Fatigue-free work.
- Thermo washer disinfectable and sterilizable up to 135°C or 275°F.
- FG burs Ø 1.6 mm for bur lengths up to 25 mm.
- Stand for a long service life with a limited warranty of at least 12 months.

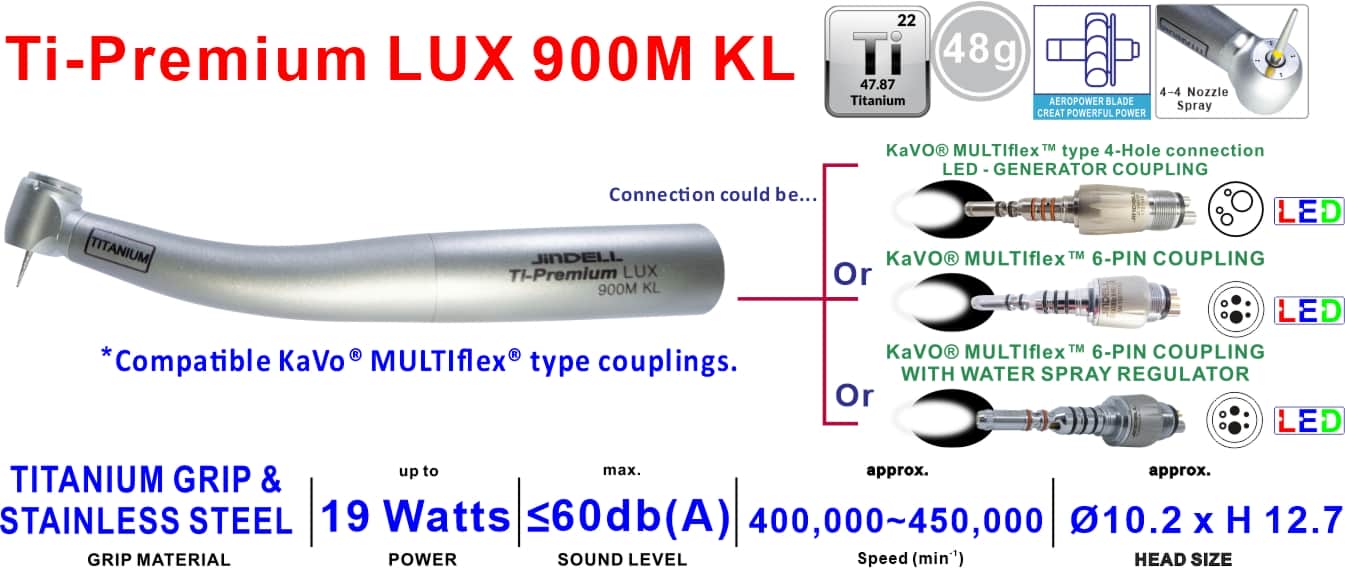

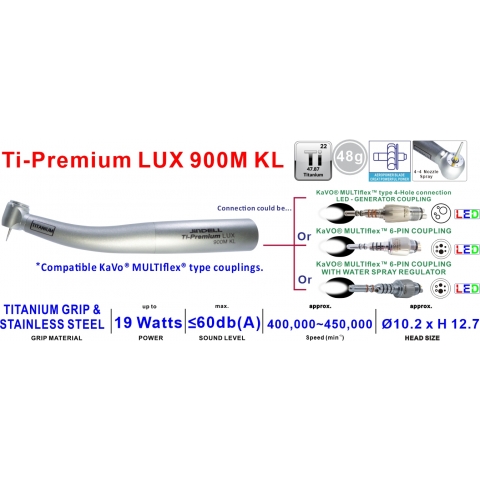

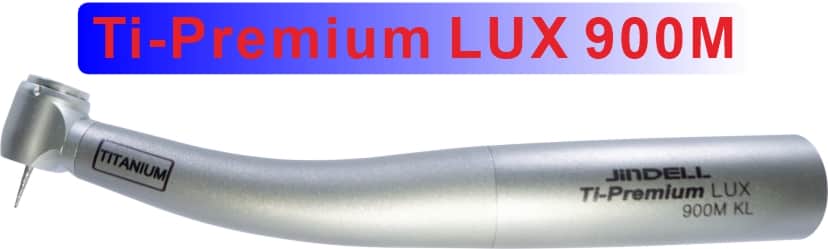

KaVo® MULTIflex™ Type connection Fiber Optic Handpiece with Titanium Grip & Small head.

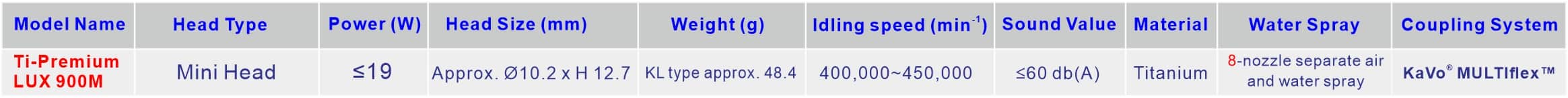

Model Name: Ti-Premium LUX 900M KL

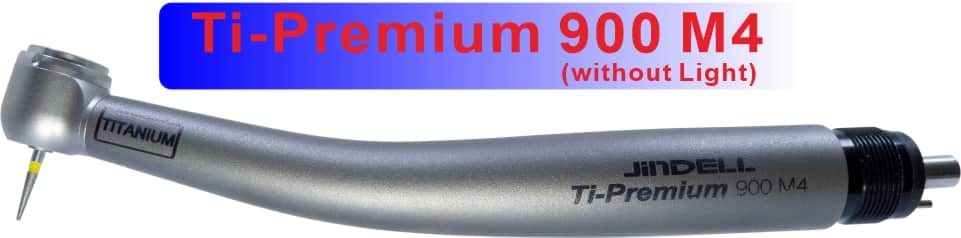

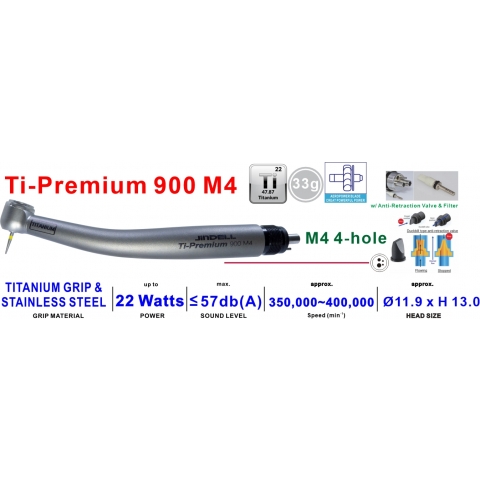

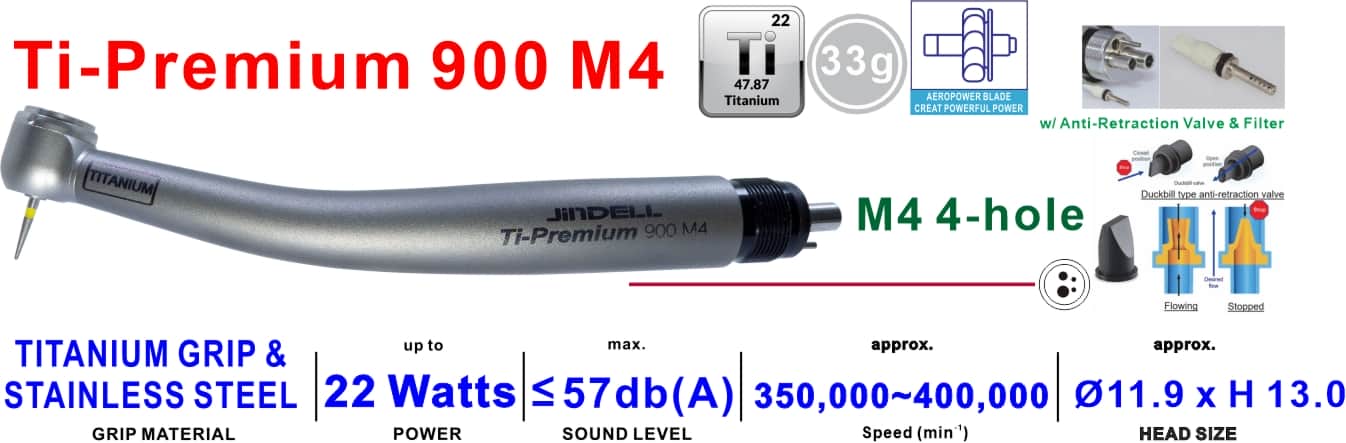

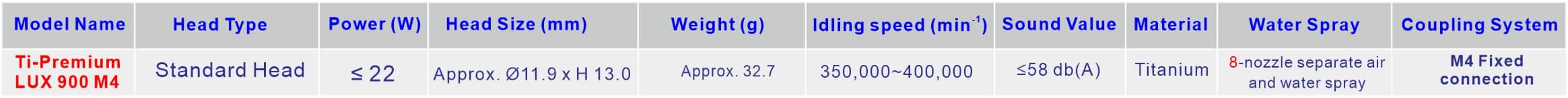

M4 4-Hole Fixed Connection without Light Handpiece with Titanium Grip & Standard Head.
Model Name: Ti-Premium 900 M4

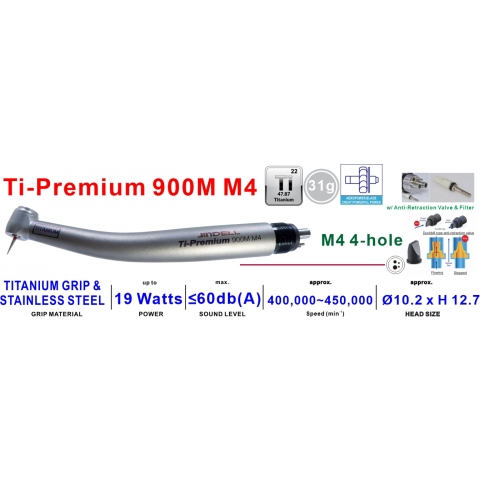

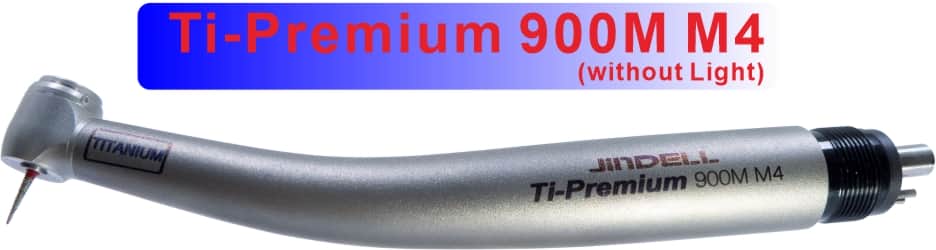

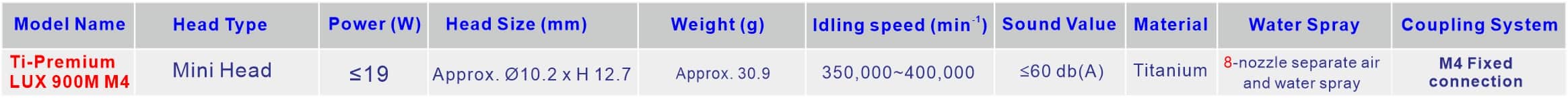

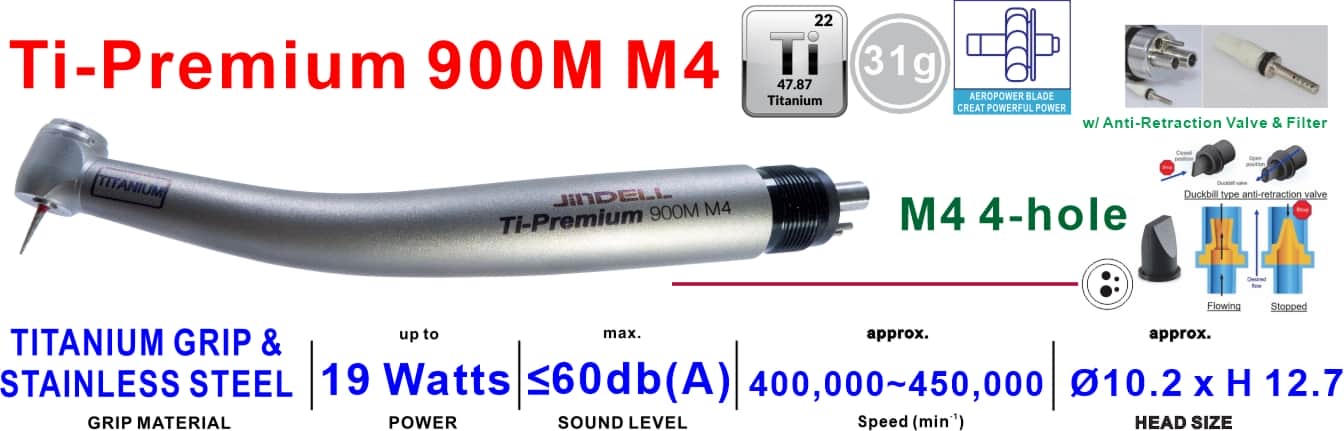

M4 4-Hole Fixed connection without Light Handpiece with Titanium Grip & Small head.
Model Name: Ti-Premium 900M M4
* Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar
** KaVo® MULTIflex™ is a trademark of a third party not affiliated with JinDELL Medical Instruments Co., Ltd.
