STAINLESS STEEL FIBER-OPTIC HIGH-SPEED HANDPIECE
Built for Durability.
Designed for Daily Dentistry.
The JinDELL Premium LUX 700 PLUS series is a stainless-steel fiber-optic high-speed dental handpiece platform available with Standard and Mini Head options, NSK-compatible or KaVo-compatible quick-coupling configurations, four-nozzle spray cooling and anti-retraction support.
RELIABLE DAILY CLINICAL PERFORMANCE
Durable, Practical, and Easy to Integrate
Durable Structure
Stainless-steel construction with a five-layer PVD surface treatment supports durability, cleanability, and daily clinical handling.
Stable Cutting
Ceramic ball bearings, precision balancing, and push-button chuck retention support smooth rotation and reliable cutting control.
Effective Cooling
Four asymmetrical spray ports cool around the bur and help maintain visibility during treatment.
Flexible Integration
Standard and Mini Head models are available with NSK-compatible or KaVo-compatible quick-coupling configurations.
DURABLE BY DESIGN
A Dependable Platform for Everyday Use
The Premium LUX 700 PLUS series is designed for clinics and dealers who need a reliable stainless-steel fiber-optic handpiece line with clear Standard/Mini and NSK/KaVo configuration options.
STABLE OUTPUT
Power and Control for Daily Cutting
Under the specified 3.5 bar test condition, the Standard Head provides 28 W and the Mini Head provides 25 W. Ceramic ball bearings and precision balancing support smooth operation and consistent cutting performance.
FOUR-NOZZLE COOLING
See More. Cool Better.
Four asymmetrical spray ports mix air and water around the bur, helping control heat build-up and maintain a clearer operating field.
HYGIENE SUPPORT
Anti-Retraction Sealed Head
The sealed-head anti-retraction design, together with the corresponding non-return valve and filter structure in the quick coupling, helps reduce fluid backflow and supports clinical infection-control protocols.
QUIET MEANS COMFORT
A More Comfortable Clinical Environment
Low-noise and low-vibration operation helps improve the experience for both clinicians and patients.
Standard ≤57 dB(A) ｜ Mini ≤59 dB(A)
STANDARD OR MINI?
Choose the Head for Your Clinical Workflow
Choose the Standard Head for general restorative and cutting procedures. Choose the Mini Head when posterior access, visibility or pediatric use is the priority.
| Feature | Standard Head | Mini Head |
|---|---|---|
| Series name | Premium LUX 700 PLUS | Premium LUX 700 PLUS M |
| Best for | General restorative and cutting procedures | Posterior access and pediatric dentistry |
| Head size | Ø12.1 × H13.3 mm | Ø10.6 × H12.5 mm |
| Power | 28 W @ 3.5 bar | 25 W @ 3.5 bar |
| Speed | 300,000–400,000 min-1 | 360,000–450,000 min-1 |
| Noise | ≤57 dB(A) | ≤59 dB(A) |
| FG bur | Ø1.6 mm, max. 25 mm length | Ø1.6 mm, max. 21 mm length |

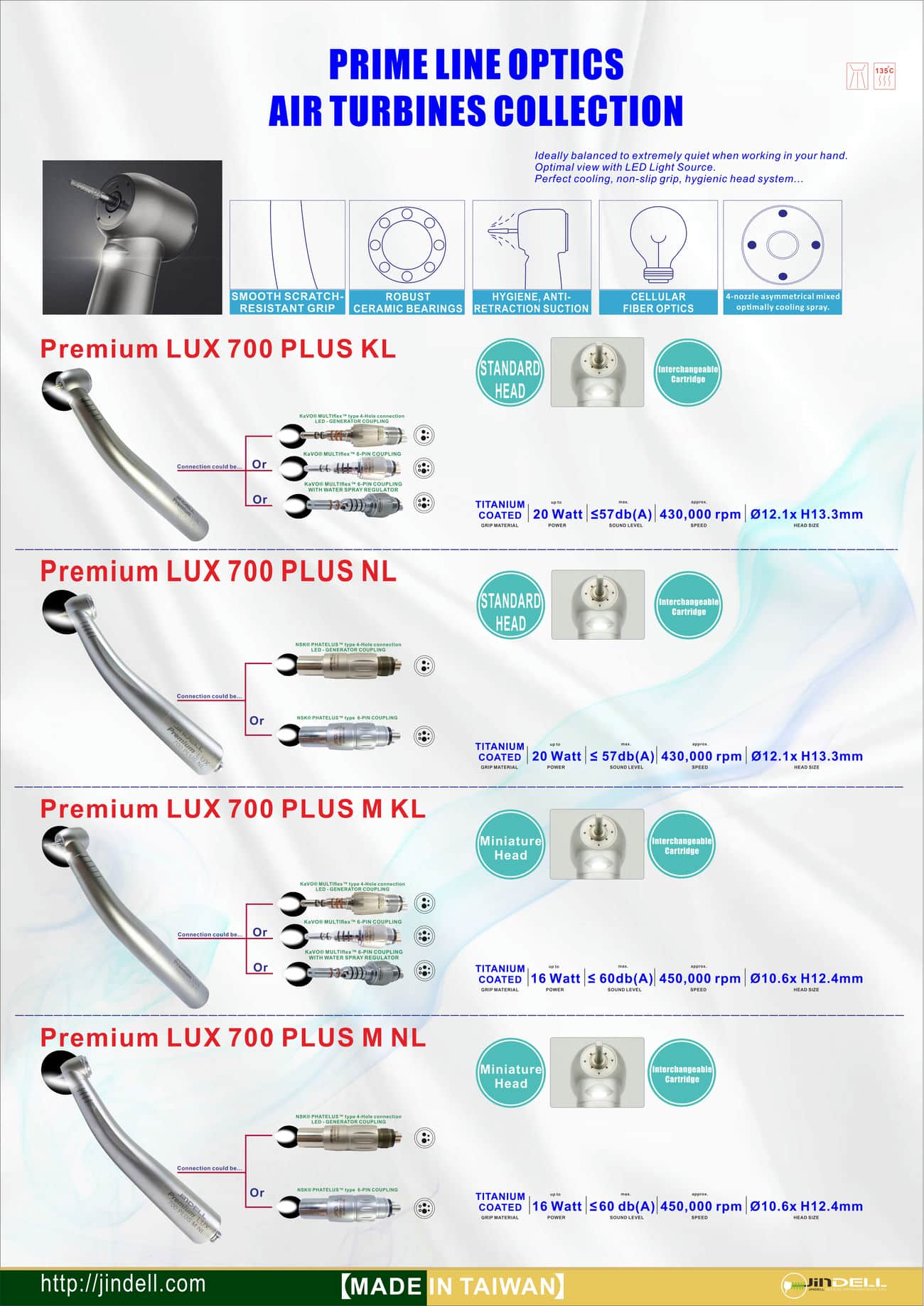

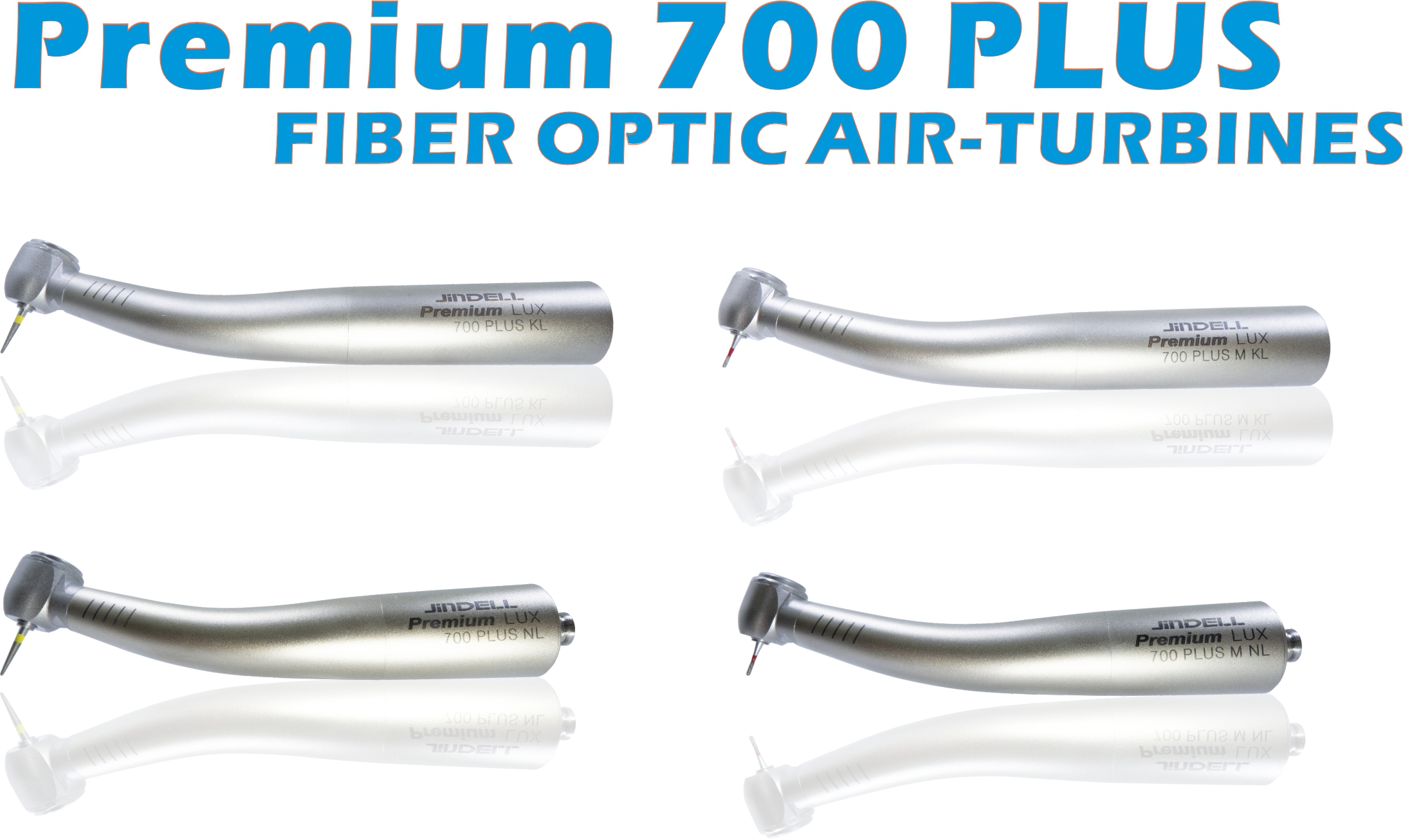

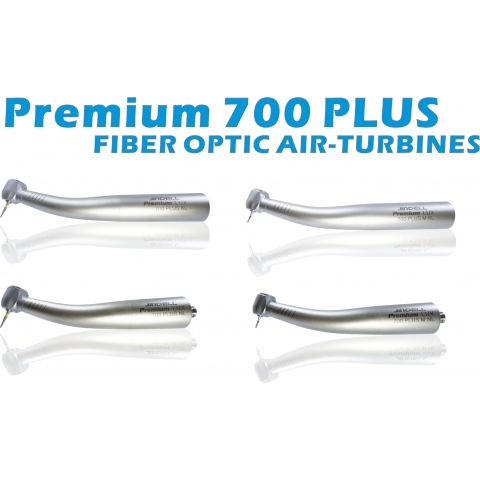

FOUR MODEL CONFIGURATIONS
Select the Head and Coupling System
Standard and Mini Head models are available in NSK-compatible or KaVo-compatible quick-coupling configurations. Confirm the exact dental-unit connection before ordering.

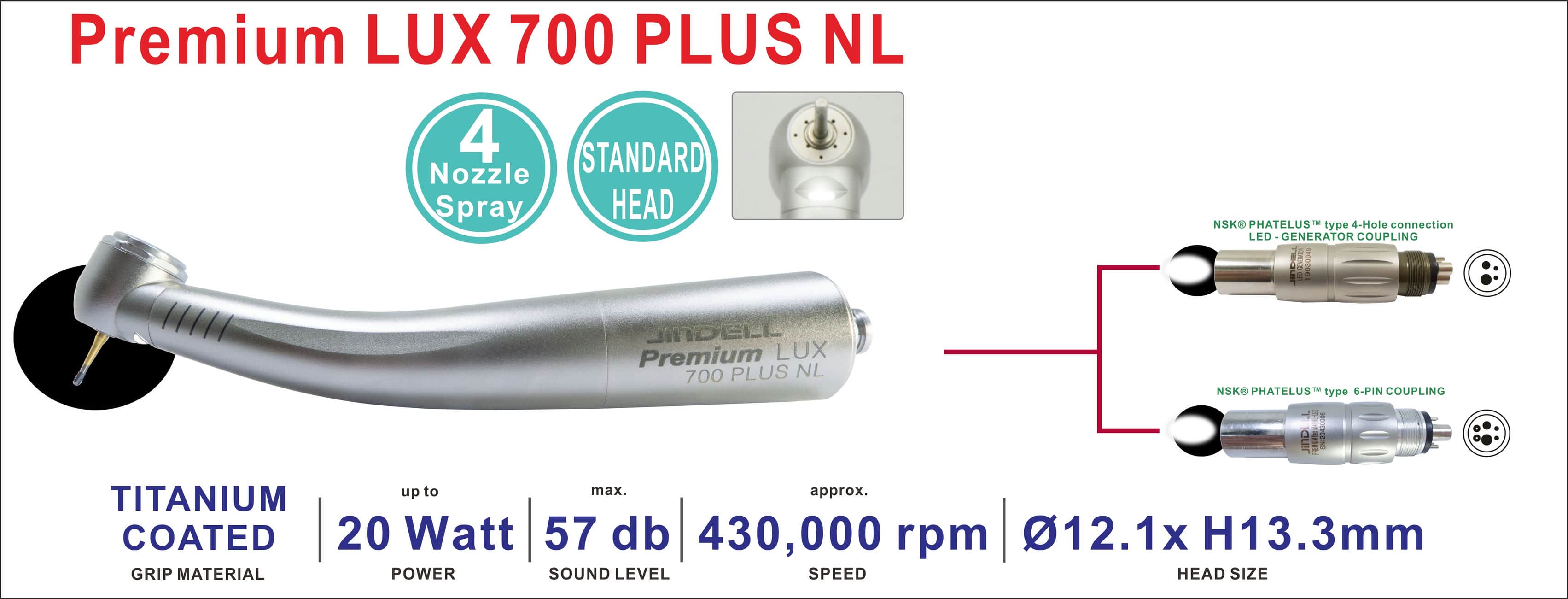

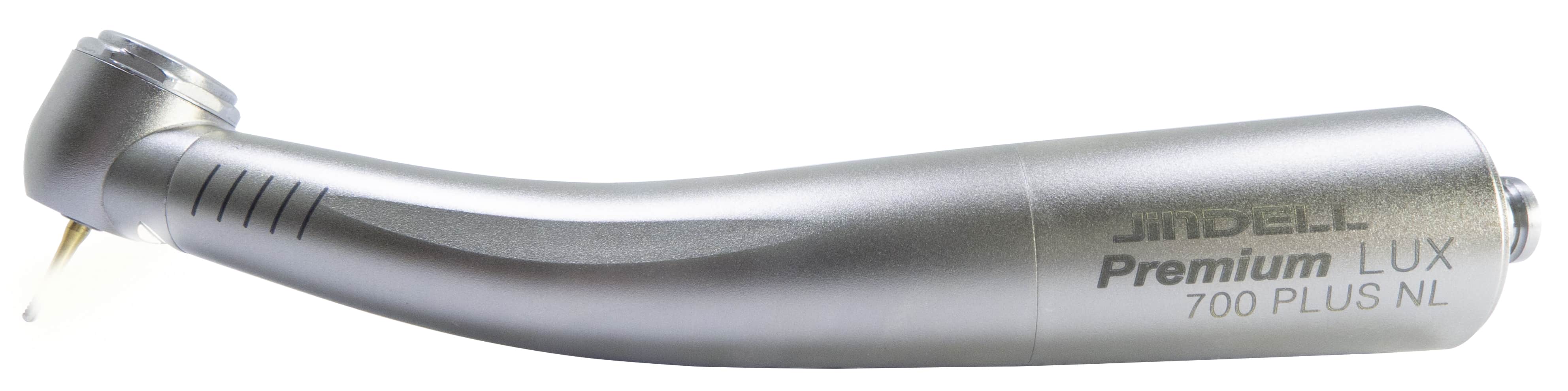

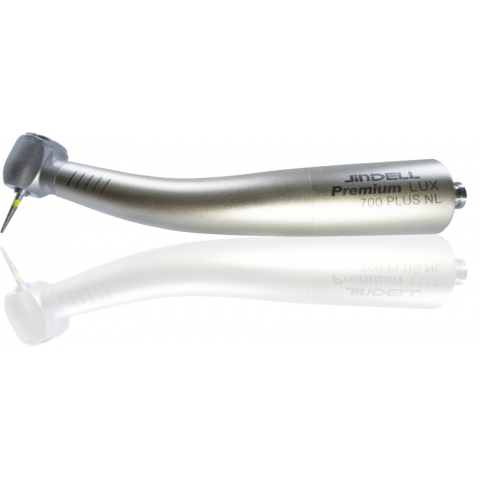

Premium LUX 700 PLUS NL
Standard Head / NSK-compatible quick coupling
Weight: 59 g

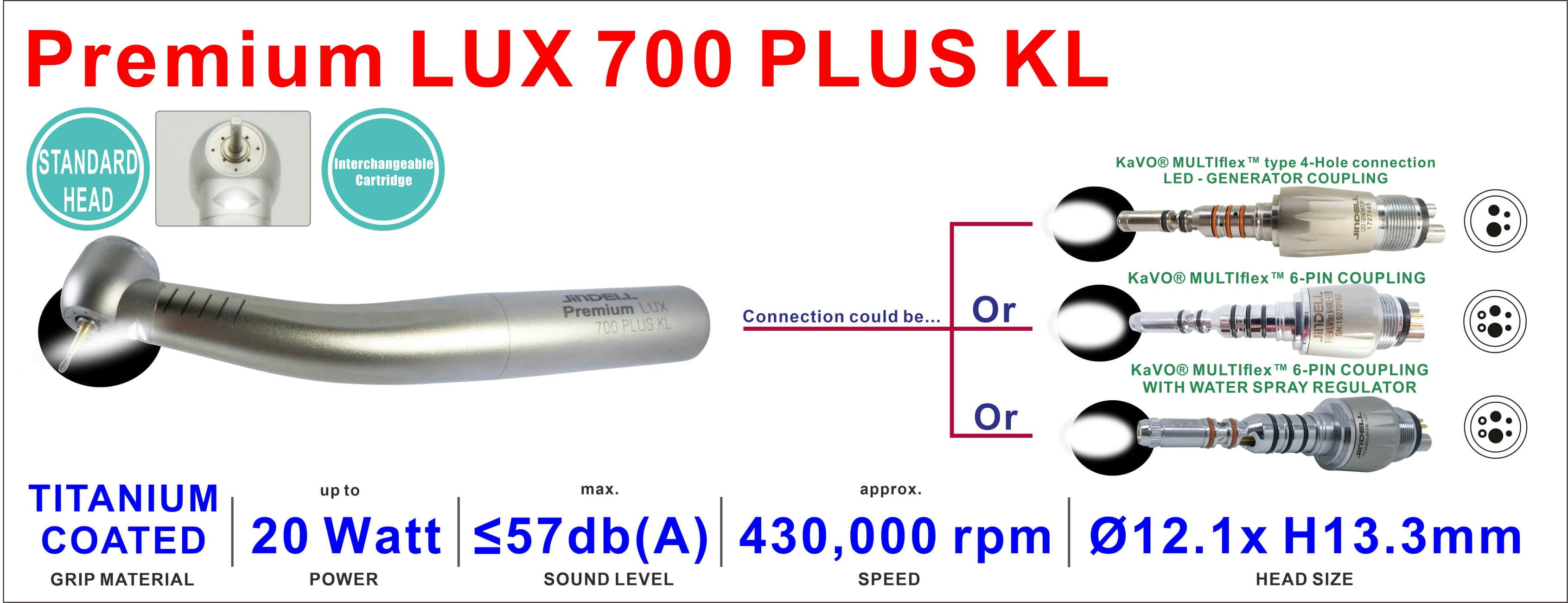

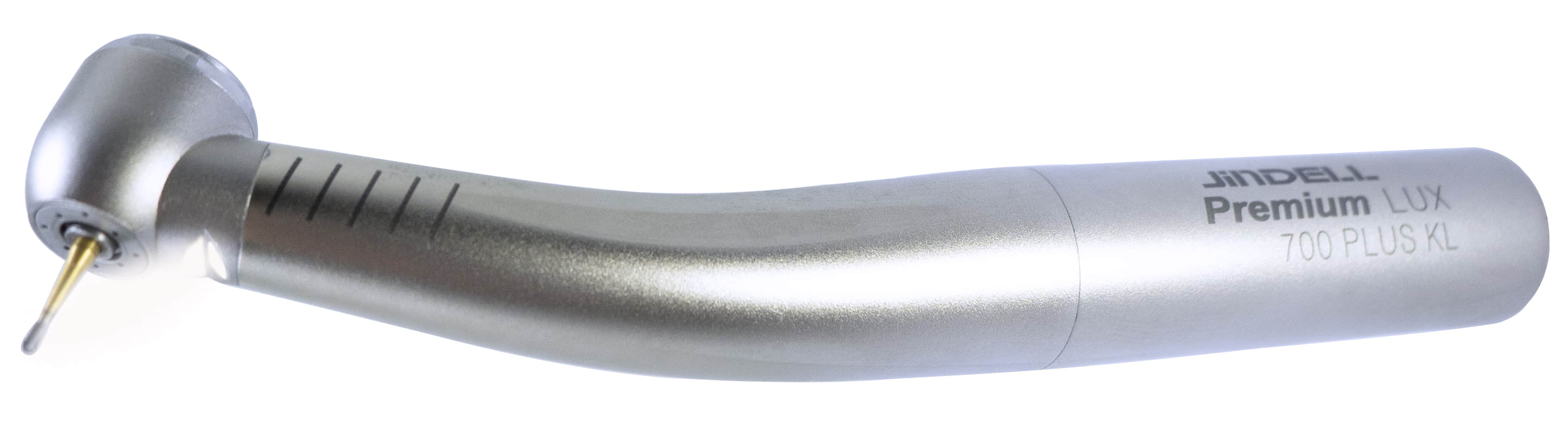

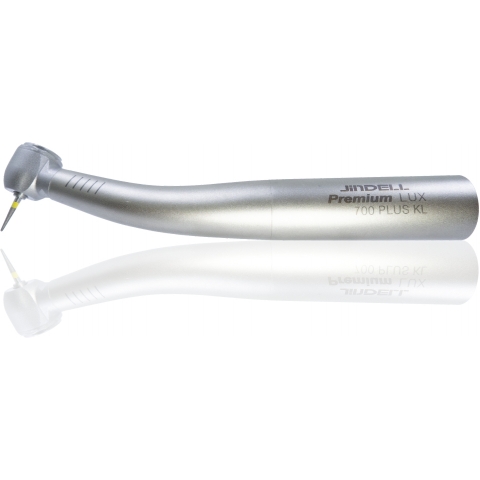

Premium LUX 700 PLUS KL
Standard Head / KaVo-compatible quick coupling
Weight: 64 g

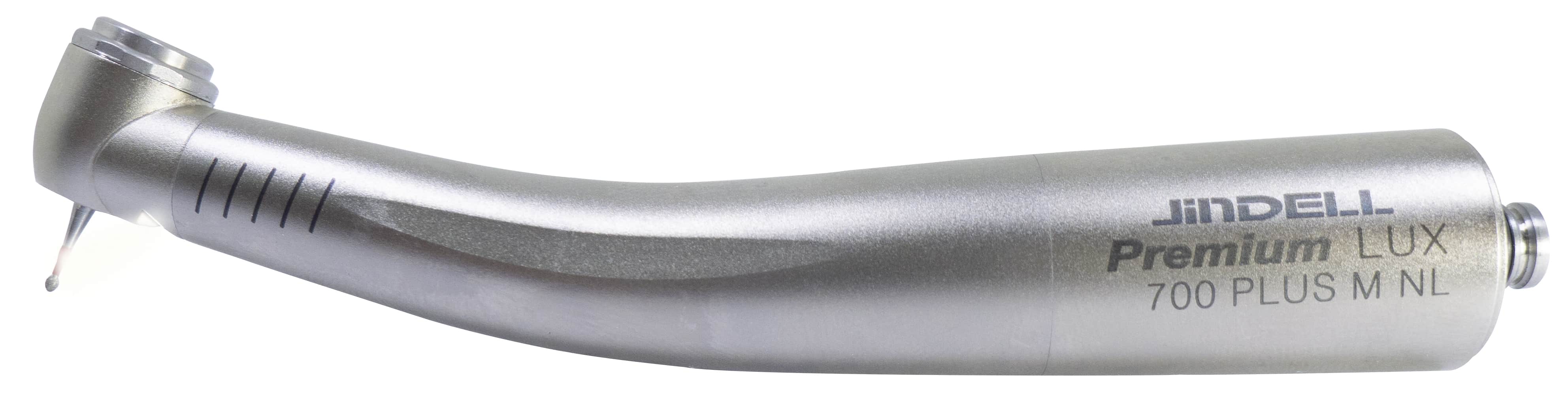

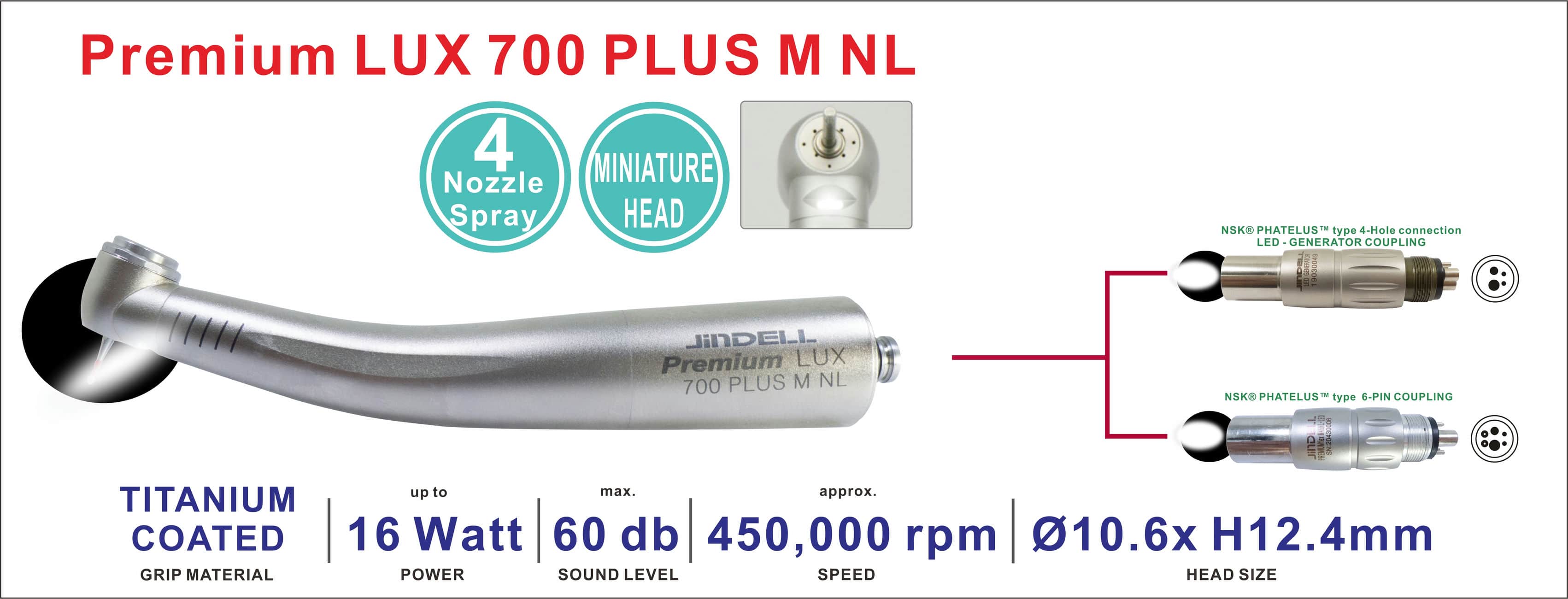

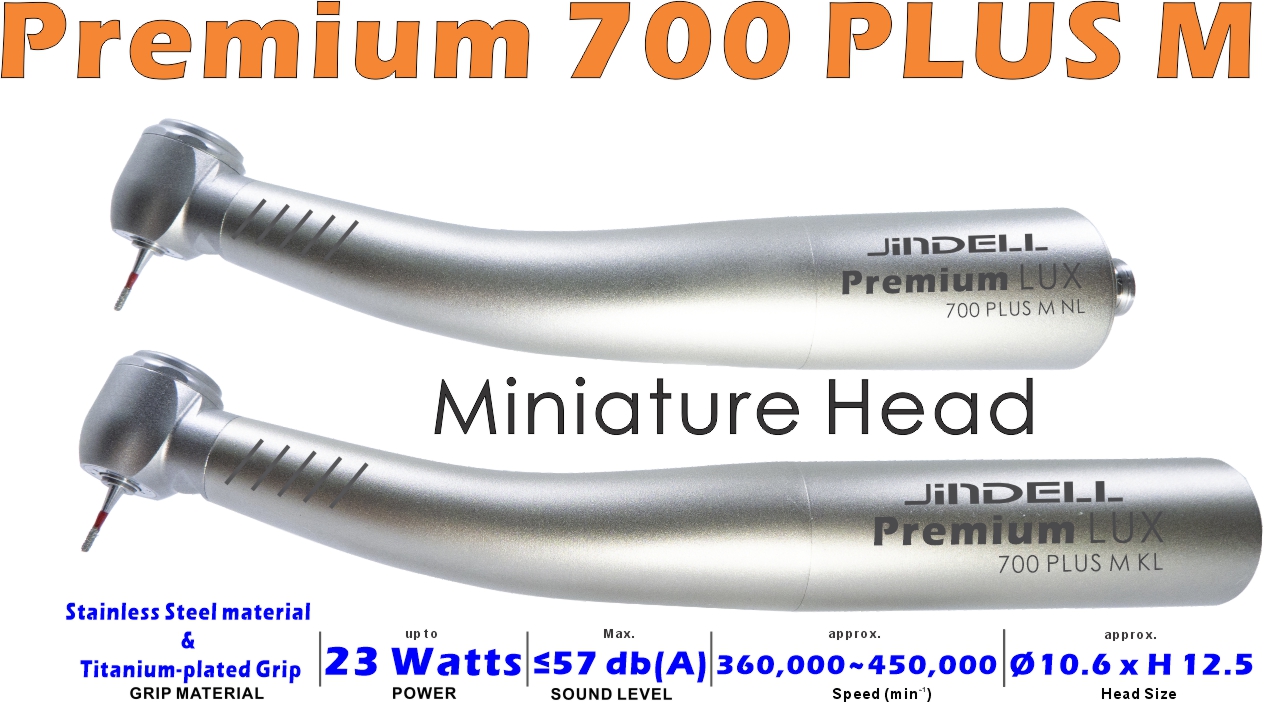

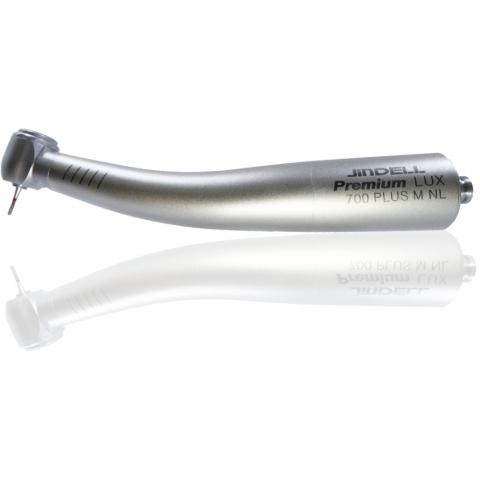

Premium LUX 700 PLUS M NL
Mini Head / NSK-compatible quick coupling
Weight: 51 g

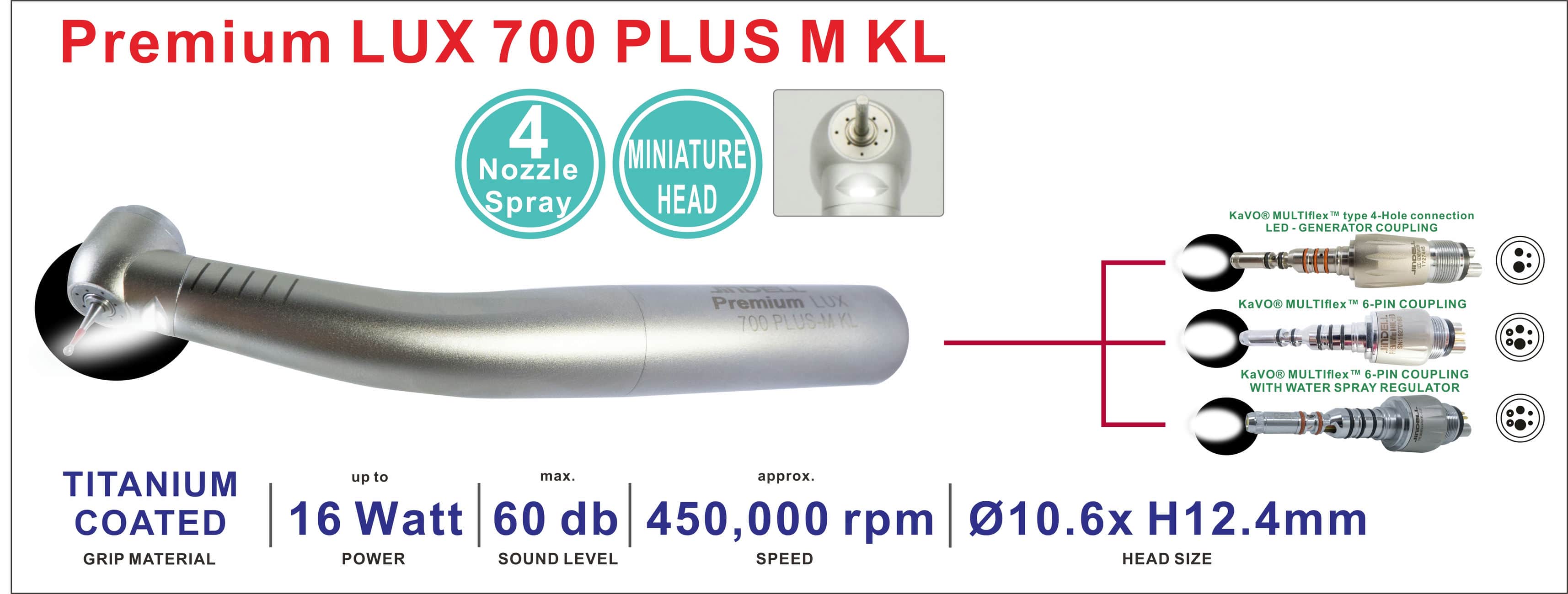

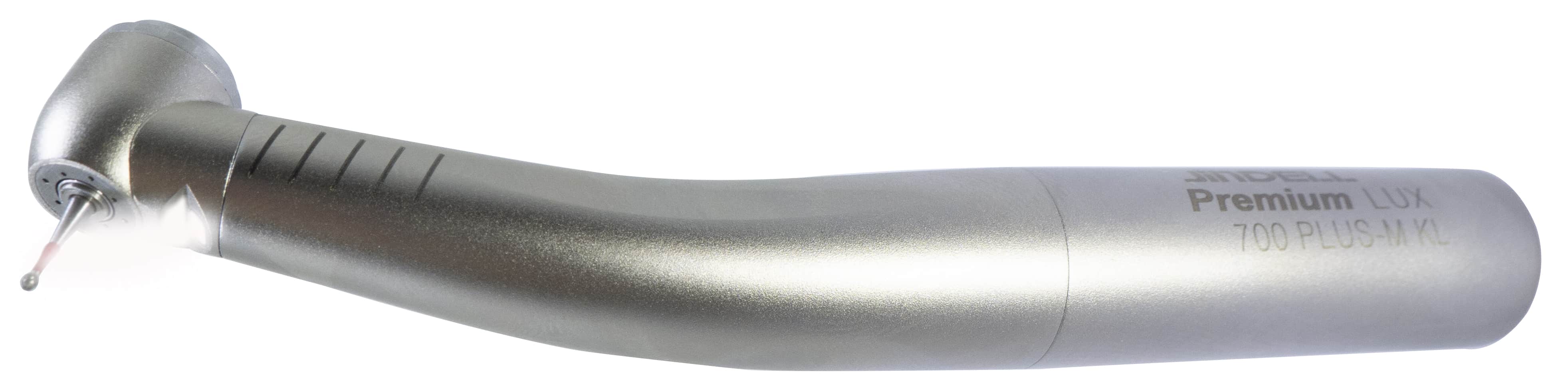

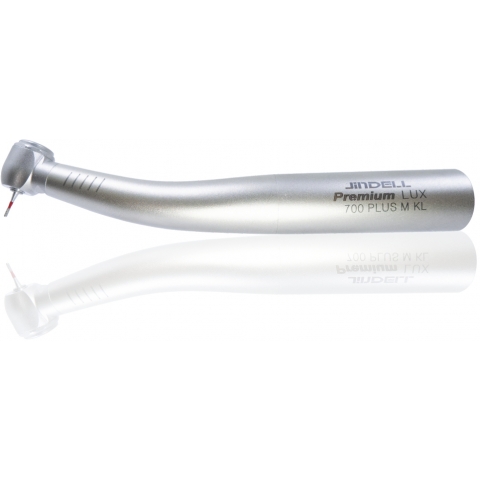

Premium LUX 700 PLUS M KL
Mini Head / KaVo-compatible quick coupling
Weight: 63 g
TECHNICAL SPECIFICATIONS
Built for Dependable Daily Use
| Product type | Stainless steel fiber-optic high-speed dental handpiece |
| Head options | Standard Head / Mini Head |
| Body and surface | Shock-resistant stainless-steel structure; five-layer PVD surface treatment |
| Illumination | Fiber-optic glass rod; up to 25,000 lux with compatible LED quick coupling |
| Cooling | 4-nozzle asymmetrical spray |
| Bearings | Ceramic ball bearings |
| Bur retention force | ≥30 N |
| Bur stop time | Approximately 2–3 seconds |
| Hygiene design | Anti-retraction sealed head; corresponding non-return valve and filter design in the quick coupling |
| Coupling configurations | NSK PTL / PHATELUS-compatible or KaVo MULTIflex-compatible options |
| Cleaning and sterilization | Autoclavable or thermo-disinfectable up to 135°C (275°F); tested for ≥1,000 cycles |
| Maintenance | Replaceable cartridge |
| Warranty | 12-month limited warranty |
Performance values are reference values measured under JinDELL specified test conditions and may vary with operating pressure, coupling configuration and other parameters. Always follow the current instructions for use, cleaning, lubrication and sterilization.
COUPLING COMPATIBILITY OPTIONS
Integrate with Existing Clinical Equipment
NL models are available for NSK PTL / PHATELUS-compatible configurations. KL models are available for KaVo MULTIflex-compatible configurations. Different configurations should not be treated as one handpiece fitting both coupling systems.
Compatibility depends on the selected JinDELL model and configuration. NSK, PHATELUS, KaVo and MULTIflex are trademarks or names of their respective owners. Compatibility references do not imply endorsement, authorization or affiliation. Confirm the exact connection before ordering.
CHOOSE THE RIGHT MATERIAL PLATFORM
Premium or Ti-Premium?
Premium LUX 700 PLUS
Stainless-steel structure focused on durability, reliability and daily clinical performance.
Ti-Premium LUX 700 PLUS
Titanium grip focused on lightweight handling, balance and long-procedure comfort.
View the Ti-Premium titanium version →ENGINEERED IN TAIWAN
Why JinDELL?
JinDELL has developed and manufactured dental instruments in Taiwan since 1971, supporting dental professionals, international distributors and OEM/ODM partners.
- Dental instrument manufacturing experience in Taiwan
- ISO 13485 quality management system
- Replaceable cartridge and technical support
- OEM/ODM and international distributor support
- 12-month limited warranty
FREQUENTLY ASKED QUESTIONS
Product Questions
What is the difference between Standard Head and Mini Head?
The Standard Head is designed for general cutting output. The Mini Head has a smaller profile to support posterior access, visibility and pediatric procedures.
What is the difference between NL and KL models?
NL models are NSK PTL / PHATELUS-compatible configurations. KL models are KaVo MULTIflex-compatible configurations. Confirm your existing coupling system before ordering.
How quickly does the bur stop?
Under the specified operating conditions, the bur stops in approximately 2–3 seconds.
Can the handpiece be sterilized at 135°C?
Yes. The handpiece is autoclavable or thermo-disinfectable up to 135°C (275°F). Follow the current instructions for use, cleaning, lubrication and sterilization.
Does JinDELL support OEM/ODM and distributor cooperation?
Yes. JinDELL welcomes international distributor inquiries, bulk orders and qualified OEM/ODM cooperation.
