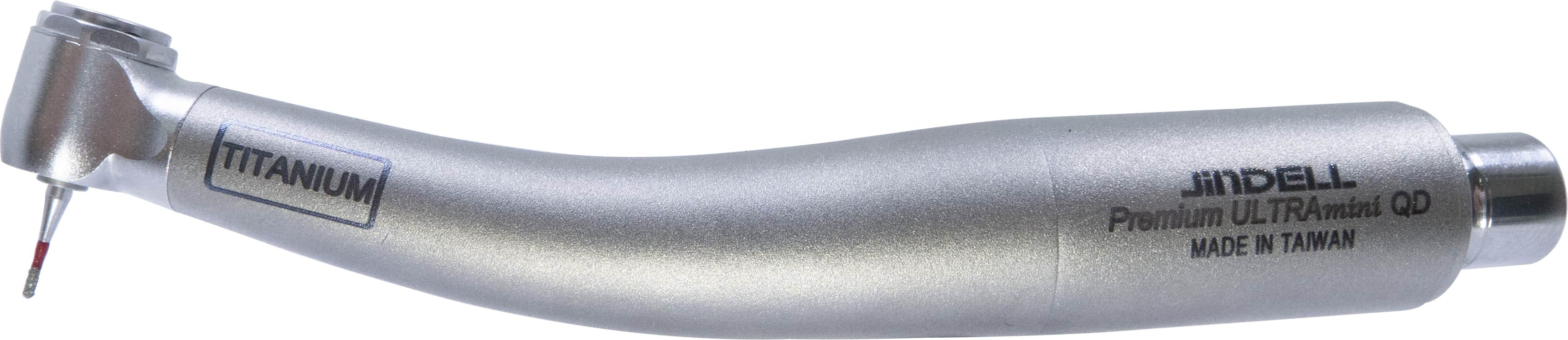

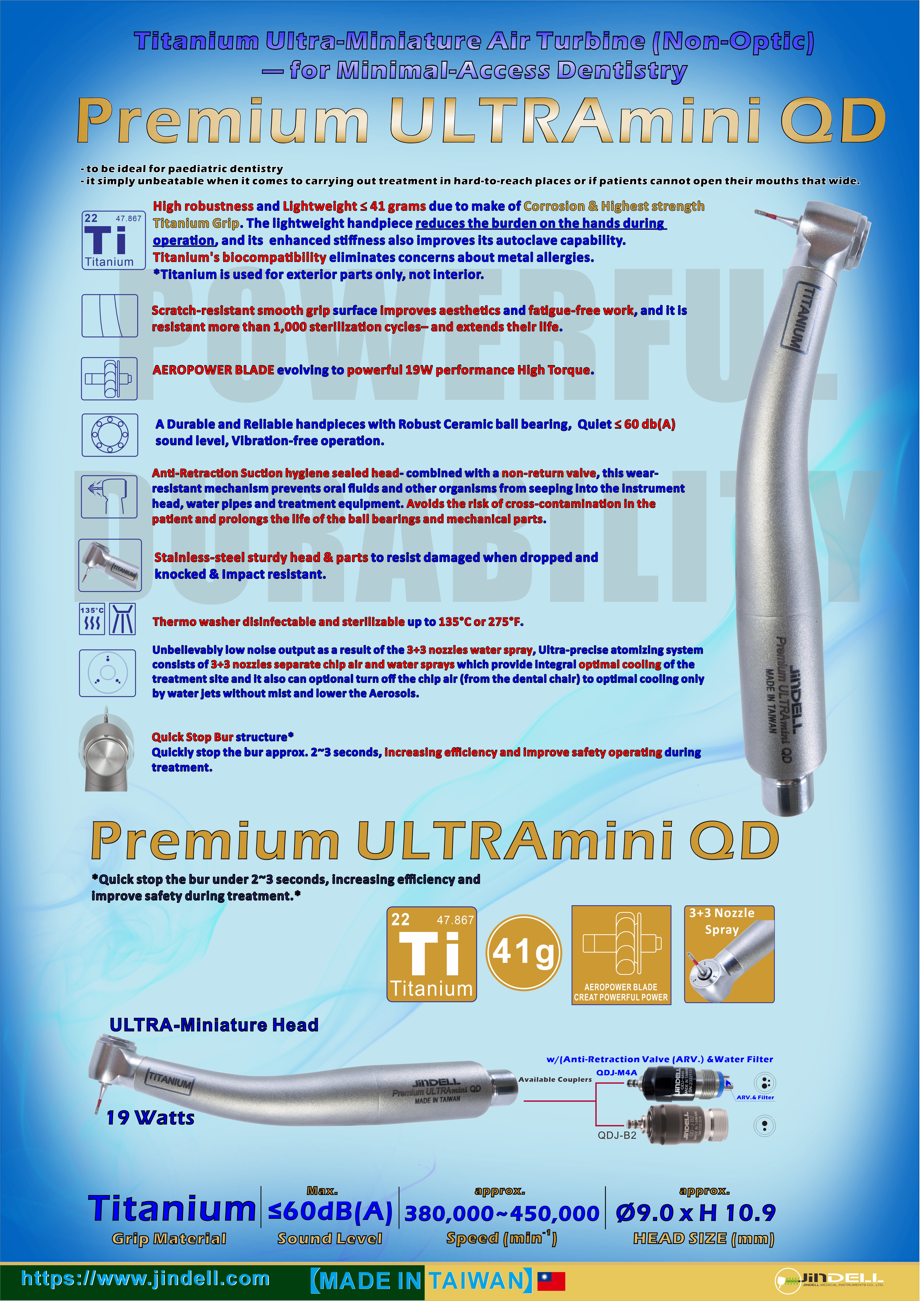

Titanium Ultra-Miniature Dental Turbine (Non-Optic)

Ultra-mini access & handling

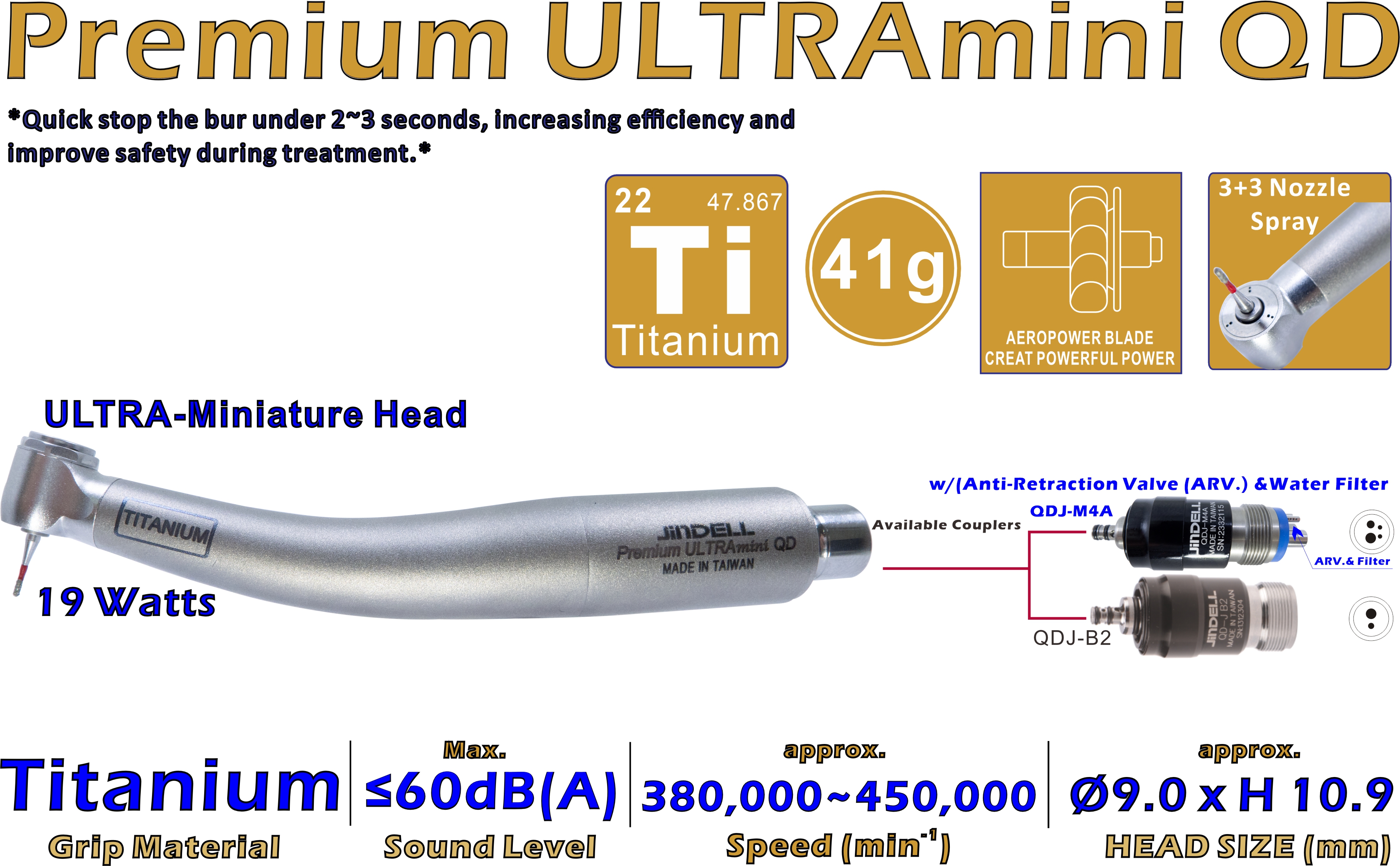

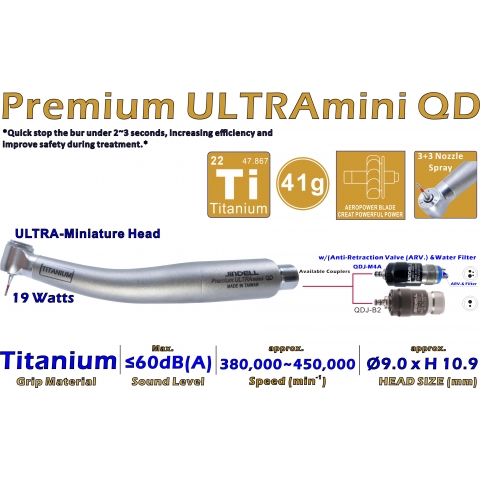

A compact Ø9.0 × H10.9 mm head improves visibility and reach in posterior and pediatric cases, while a lightweight titanium grip reduces hand fatigue throughout the day.

Cooling, acoustics & power
The 3+3 nozzle system atomizes water for integral cooling and can be run water-only (mist-free) from the chair when desired. With ≤60 dB(A) and 380,000–450,000 min⁻¹, you get calm operation and confident cutting up to 19 W at 3 bar (rated condition).

Workflow-ready
Accepts FG Ø1.6 mm short-shank burs up to 21 mm and supports NSK-type QDJ coupling for flexible integration. Fully thermo-washer disinfectable and autoclave-safe to 135 °C.

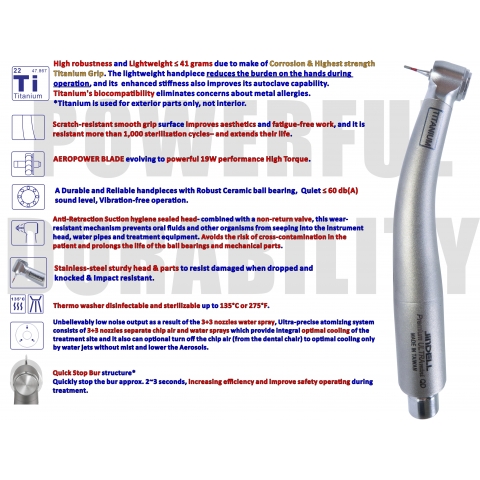

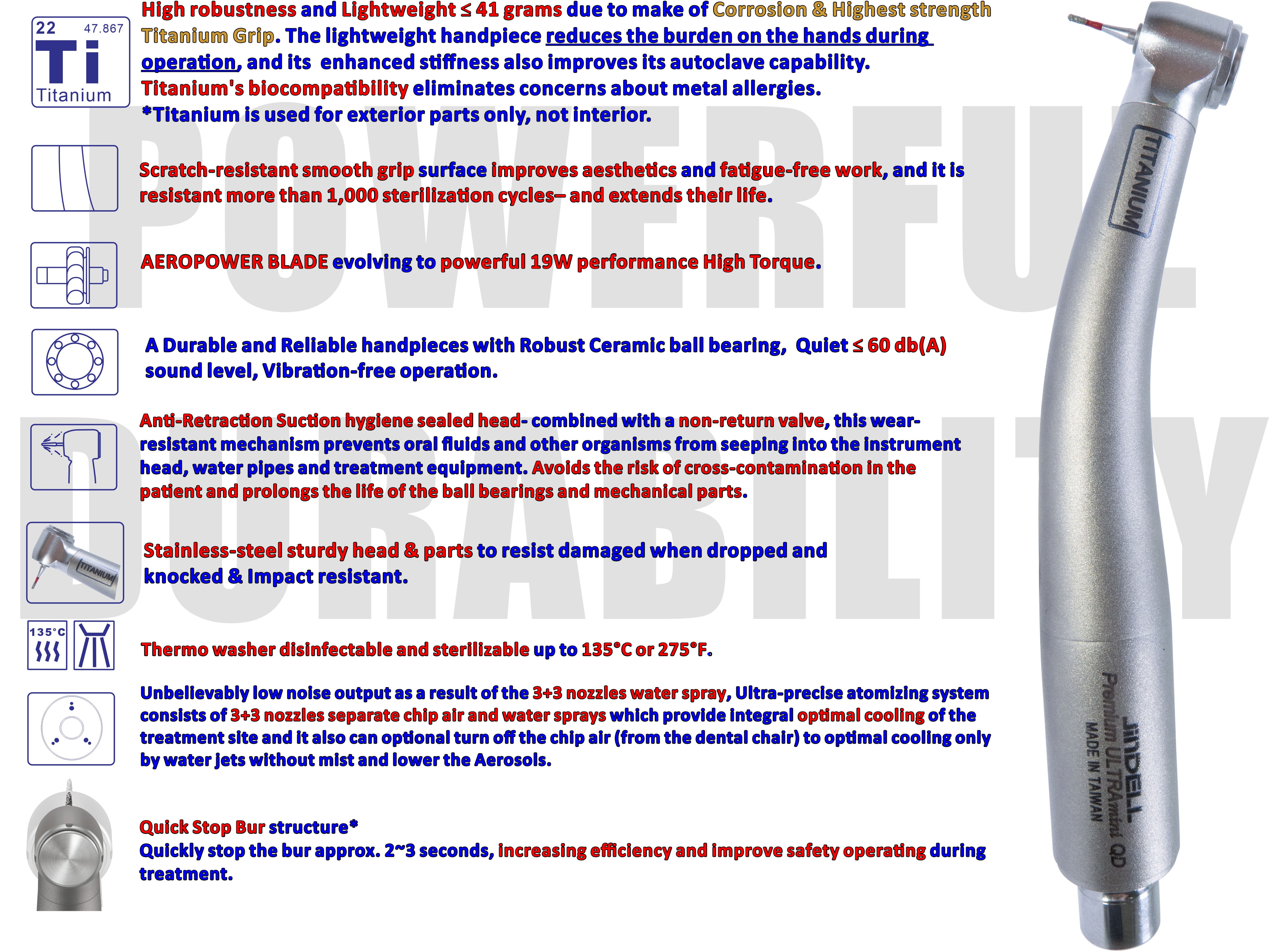

• 30% lighter than a standard Air Turbine, reducing the burden on your hand during use.
• High robustness and Lightweight due to Corrosion & Highest strength of the Titanium Grip and Stainless-steel sturdy head to resist damage when dropped and knocked, and with a Scratch-resistant surface finish.
• Ultra-Mini Micro Head for Pediatric Dentistry.
• Dimensions (Ø9.0 mm x H10.9mm) ensure ergonomic comfort and precise results while always guaranteeing an optimum view.
• Quick stop the bur approx. Under 2~3 seconds, increasing efficiency, cutting, and improving safety during treatments and operations; it also enhances zero suck back.
• Anti-Retraction Suction hygiene sealed head—combined with a non-return valve, this wear-resistant mechanism prevents oral fluids and other organisms from seeping into the instrument head, water pipes, and treatment equipment. It avoids the risk of cross-contamination in the patient and prolongs the life of the ball bearings.
• Unbelievably low noise output as a result of the 3+3 nozzles' water spray. The ultra-precise atomizing system consists of 3+3 nozzles, separate chip air and water sprays, which provide integral optimal cooling of the treatment site. It can also optionally turn off the chip air (from the dental chair) to achieve optimal cooling only with water jets, eliminating mist.
• Whisper-quiet, vibration-free operation ≦60 dB (A) Sound level, providing a better patient experience and a comfortable working environment.
• Idling speed 380,000~450,000 min^-1.
• Push button Chuck & Back cap.
• Robust, Premium-Quality Ceramic ball bearings, which are wear-resistant, give the handpiece a longer useful life and reduce noise levels.
• Powerful torque of 19 watts.*
• Lighter Weight: 46.5 grams.
• Available to NSK^® QDJ type Coupling.**
• A scratch-resistant surface improves aesthetics even further and extends their life.
• Fatigue-free work.
• Thermo washer disinfectable and sterilizable up to 135°C or 275°F.
• FG burs Ø 1.6 mm for short shank burs lengths up to 21 mm.
• The whole dental handpiece has a long service life and a limited warranty of at least 24 months, except for the Bearings of the Air Turbine.
• Stand for a long service life with a limited warranty of at least 12 months for the Bearings of the Air Turbine.
• We are improving the upgraded wedge design for enhanced clamping force & improved bur retention over time.
• Precision Balancing.
• State-of-the-art manufacturing cell for impellers.
• Stainless steel bur guide bushing improves bur concentricity and extends chuck life.
• Heat-treated, precision-ground spindles with honing of critical dimensions reduce chuck wear and prolong life.
• EDM precision-machined collet.

* Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar

Q1. What clinical scenarios is this ultra-mini turbine designed for?
A. Minimal-access dentistry where space is limited—pediatric cases, patients with restricted opening, and conservative posterior preparations that demand a compact head and precise control.

Q2. What are the head dimensions?
A. The head measures Ø9.0 × H10.9 mm, engineered to improve visibility and reach in tight fields.

Q3. What power and speed does it deliver?
A. Rated up to ~19 W at 3 bar with a speed range of approximately 380,000–450,000 min⁻¹, providing confident cutting in a compact form factor.

Q4. How quiet is it during operation?
A. The turbine is designed for a low sound profile (≤60 dB) to help keep the operatory calm for both clinicians and patients.

Q5. How does the cooling system work?
A. A 3+3 nozzle layout creates finely atomized integral cooling around the bur for reliable temperature control and clear visibility.

Q6. Can I run a water-only (mist-free) spray?
A. Yes. When the chair's chip air is disabled, you can operate in water-only mode for mist-reduced cooling when the clinical situation requires it.

Q7. Which burs are compatible?
A. Accepts FG Ø1.6 mm short-shank burs up to 21 mm overall length. Always verify bur length and shank type before use.

Q8. Which coupling does it support?
A. Compatible with NSK-type QDJ swivel coupling, streamlining integration with standard chairside setups.

Q9. What about hygiene and backflow?
A. A sealed, anti-retraction head with a non-return valve helps prevent intraoral fluids from being drawn into the instrument and dental unit tubing.

Q10. How do I clean and sterilize it?
A. Thermo-washer disinfectable and autoclavable up to 135 °C / 275 °F. Follow your clinic's validated protocols and the product IFU.

Q11. What air pressure should I use?
A. Performance is optimized around 3.0 bar at the handpiece. Check your delivery unit's actual pressure at the coupling and adjust it according to the IFU.

Q12. What maintenance and lubrication are recommended?
A. Follow the IFU. As a general best practice, apply manufacturer-approved oil through the drive-air port before each sterilization cycle and after extended use.

Q13. What materials is it made from?
A. A lightweight titanium grip paired with a stainless-steel head for daily durability, balance, and handling.

Q14. Does it include a warranty?
A. Warranty terms may vary by region and distributor. Contact your local distributor or JinDELL for specific coverage details.
