Premium 700S Non-Optic | High-Torque Air-Turbine Handpiece

High-speed non-optic handpiece with anti-retraction hygiene head, ≤57 dB(A), 320k–380k...
Detail
Premium 700S
Non-Optic High-Speed Dental Handpiece — High-Torque Air-Turbine for Everyday Restorative Prep.
Premium 700S non-optic high-speed air-turbine with hygiene head

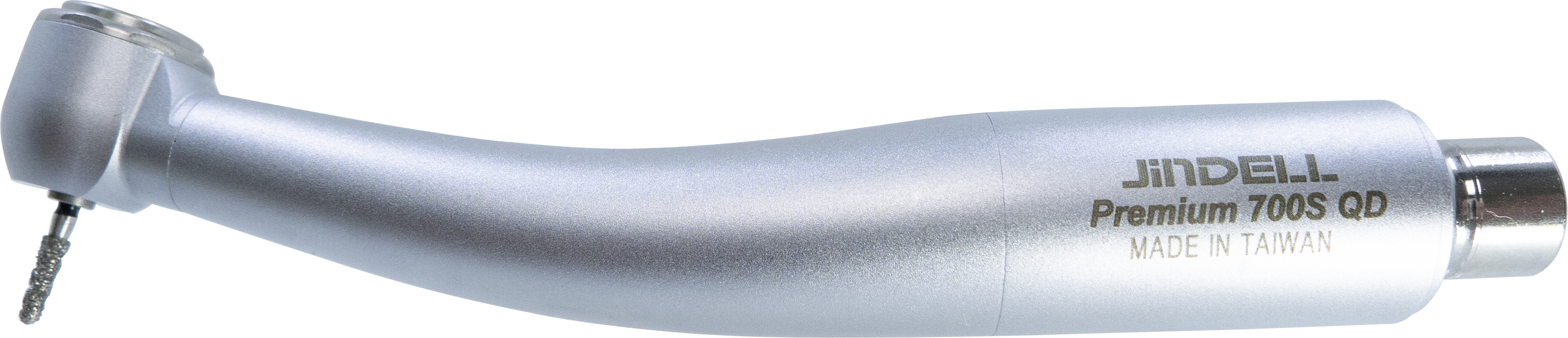

Premium 700S non-optic high-speed air-turbine with hygiene head-QD
The Premium 700S is a non-optic high-speed air-turbine designed for daily restorative preparation, featuring high-torque, low-noise operation and a hygiene-focused, anti-retraction sealed head that helps block oral fluids from entering the head and tubing. A single water spray reduces water block issues, while thoughtful air exhaust control maintains speed even when input pressure is high.

Why Choose Premium 700S (Comfort, Hygiene, Uptime)

  • Ergonomics & visibility: Standard head (Ø12.5 × H13.2 mm) for comfort and precise results.

  • Anti-retraction sealed head: Combined with a non-return valve to help prevent intraoral fluid ingress—supports hygiene and bearing life.

  • Fewer spray stoppages: The single water spray design helps reduce water blockage issues.

Performance & Handling (High-Torque, Low Noise, Speed Control)

  • High-speed range: 320,000–380,000 min⁻¹ idle. Quick bur stop (~2–3 s).

  • Whisper-quiet: ≤57 dB(A) to improve the patient and operator experience.

  • Overspeed protection: Self-venting governor bleeds excess pressure to hold max speed at 380,000 min⁻¹.


Specifications & Connections

  • Head/Chuck: Push-button chuck; robust system up to 30 N holding force; FG Ø1.6 mm burs (short-shank up to 21 mm).

  • Bearings & longevity: Premium ceramic bearings, precision balancing, heat-treated spindles, EDM collet, stainless bur guide bushing for concentricity, and extended chuck life.

  • Backends: Fixed M4 (4-hole) or B2 (2-hole), or swivel connection (NSK® QDJ-type).

Sterilization & Maintenance

  • Thermo-washer disinfection and autoclave to 135 °C / 275 °F. Limited warranty ≥12 months.

For Distributors & Group Practices

  • Set up trial units, confirm backend compatibility, and standardize rotor replacements to lower downtime across fleets. (Request cross-reference sheet.)

Premium 700S Series -FAQ

1) What backend connections are available?
Choose M4 (4-hole), B2 (2-hole), or a swivel NSK® QDJ-type coupling configuration.

2) How does the hygiene head work?
An anti-retraction sealed head with a non-return valve helps prevent intraoral fluids from entering the head and lines—supporting hygiene and bearing longevity.

3) How quiet is the 700S?
Rated ≤57 dB(A) for a quieter operatory.

4) What about sterilization and warranty?
Washer-disinfector compatible and autoclavable up to 135 °C / 275 °F; limited warranty ≥12 months.

5) Which burs does it accept?
FG Ø1.6 mm short-shank burs, up to 21 mm length.

Features:

  • Non-Optic, Chrome-plated over 1,000 sterilization cycles.
  • Standard Head / Dimensions (Ø12.5 mm x H13.2 mm) ensure ergonomic comfort and precise results while guaranteeing an optimum view.
  • Anti-retraction suction hygiene sealed head—combined with a non-return valve, this wear-resistant mechanism prevents oral fluids and other organisms from seeping into the instrument head, water pipes, and treatment equipment. It avoids the risk of cross-contamination in the patient and prolongs the life of the ball bearings.
  • Single Water Spray- fewer water-blocked issues happened.
  • Overspeed protection: Self-venting governor bleeds excess pressure to hold max speed at 380,000 min⁻¹.
  • Quick stop the bur, approximately. Under 2~3 seconds, increasing efficiency, cutting, and improving safety during treatments and operations; it also enhances zero suck back.
  • Whisper Quiet, vibration-free operation ≦57 dB (A) Sound level, provides a better patient experience and a comfortable working environment.
  • Idling speed 320,000~380,000 min-1.
  • 30 N chuck holding force, Push-Button chuck & Back cap.
  • Robust, Premium-Quality Ceramic ball bearings, which are wear-resistant, give the handpiece a longer useful life and reduce noise levels.
  • 50% Power boost over the conventional 29-watt model.*
  • Available to connection with Fixed Backend of M4 (4-hole) or B2 (2-hole) or swivel connection of NSK® QDJ type Coupling.**
  • Fatigue-free work.
  • Robust Chuck system with a holding force of up to 30N.
  • Thermo washer disinfectable and sterilizable up to 135°C or 275°F.
  • FG burs Ø 1.6 mm for short shank burs lengths up to 21 mm.
  • Stand for a long service life with a limited warranty of at least 12 months.
  • We are improving the upgraded wedge design for enhanced clamping force & improved bur retention over time.
  • Precision Balancing.
  • State-of-the-art manufacturing cell for impellers.
  • Stainless steel bur guide bushing improves bur concentricity and extends chuck life.
  • Heat-treated, precision-ground spindles with honing of critical dimensions reduce chuck wear and prolong life.
  • EDM precision-machined collet.
* Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar

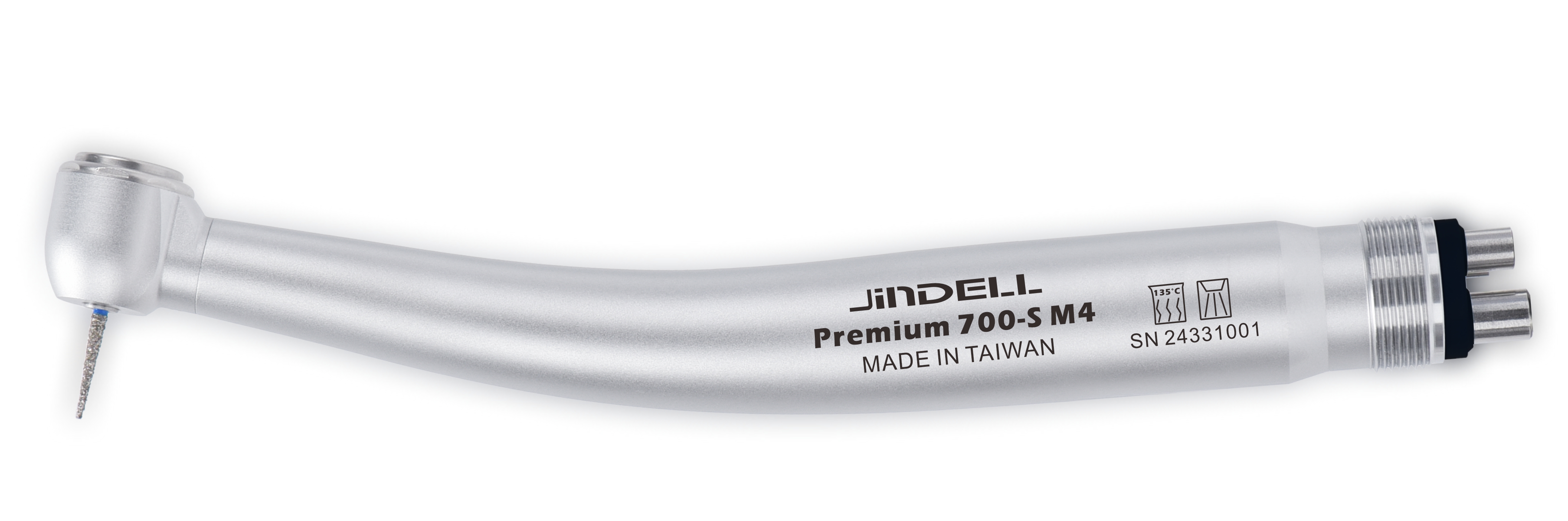

Premium 700S-M4
