TITANIUM FIBER-OPTIC ULTRA-MINIATURE HIGH-SPEED HANDPIECE
Ultra-Miniature Head.
Clearer Posterior Access.
The JinDELL Ti-Premium LUX 600Mini is a titanium fiber-optic ultra-miniature high-speed dental handpiece with NSK-compatible and KaVo-compatible quick-coupling configurations, 3+3 separated air/water spray cooling, fiber-optic illumination and anti-retraction sealed-head support.
DESIGNED FOR POSTERIOR ACCESS AND VISIBILITY

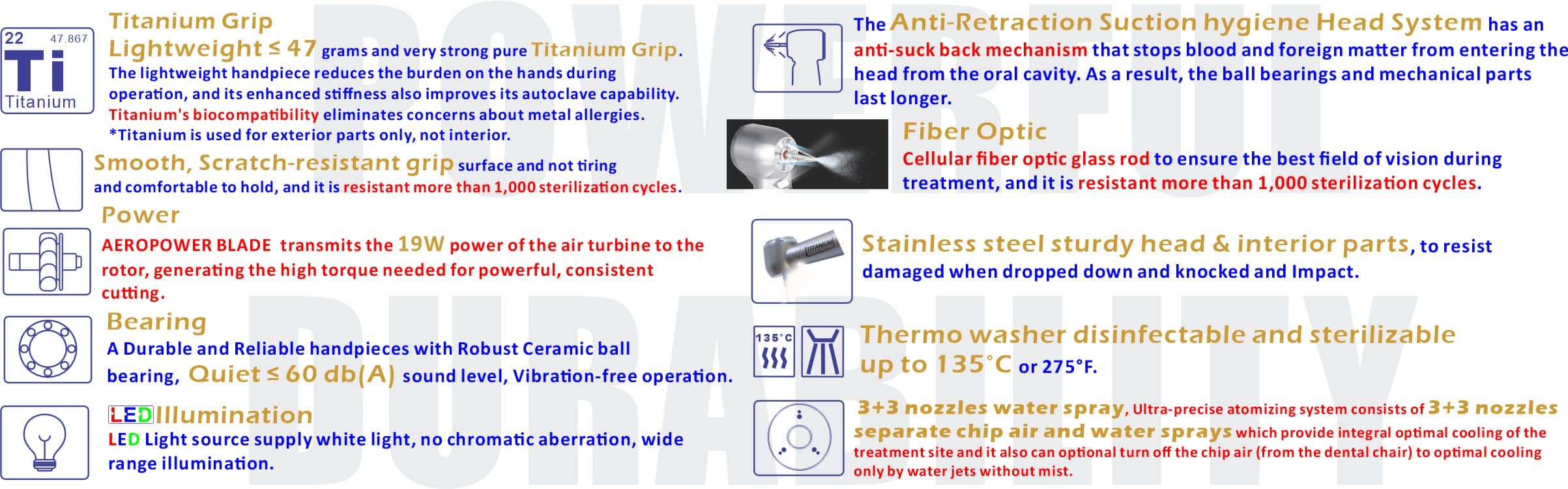

Ultra-Miniature Head, Lightweight Titanium, Stable Cutting
Ultra-Miniature Head
The Ø9.0 × H10.9 mm Micro Head supports access and visibility in posterior, pediatric and limited-opening procedures.
Lightweight Titanium
Aerospace-grade titanium construction combines low weight, strength, corrosion resistance and high-temperature sterilization compatibility.
3+3 Spray Cooling
Three chip-air ports and three water ports are separated to provide effective cooling and help reduce clogging risk.
Fiber-Optic Illumination
When used with a compatible LED fiber-optic coupling, the glass rod supports a clearer intraoral view and reduced visual fatigue.
MICRO HEAD. CLEAR ACCESS.
Smaller, Lighter and Built Around Clinical Access
Ti-Premium LUX 600Mini combines an ultra-miniature head with a lightweight titanium body, helping clinicians improve visibility and control in confined posterior areas.
Head Ø9.0 × H10.9 mm
Micro Head size based on current JinDELL product information.
STABLE OUTPUT
Ultra-Miniature Head with Daily Cutting Support
The upgraded ultra-miniature turbine output is ≤19 W, with a free-running speed of 380,000–450,000 min−1. Ceramic ball bearings and precision dynamic balancing support smooth, low-vibration operation.
SEPARATED AIR/WATER SPRAY
3+3 Spray Cooling

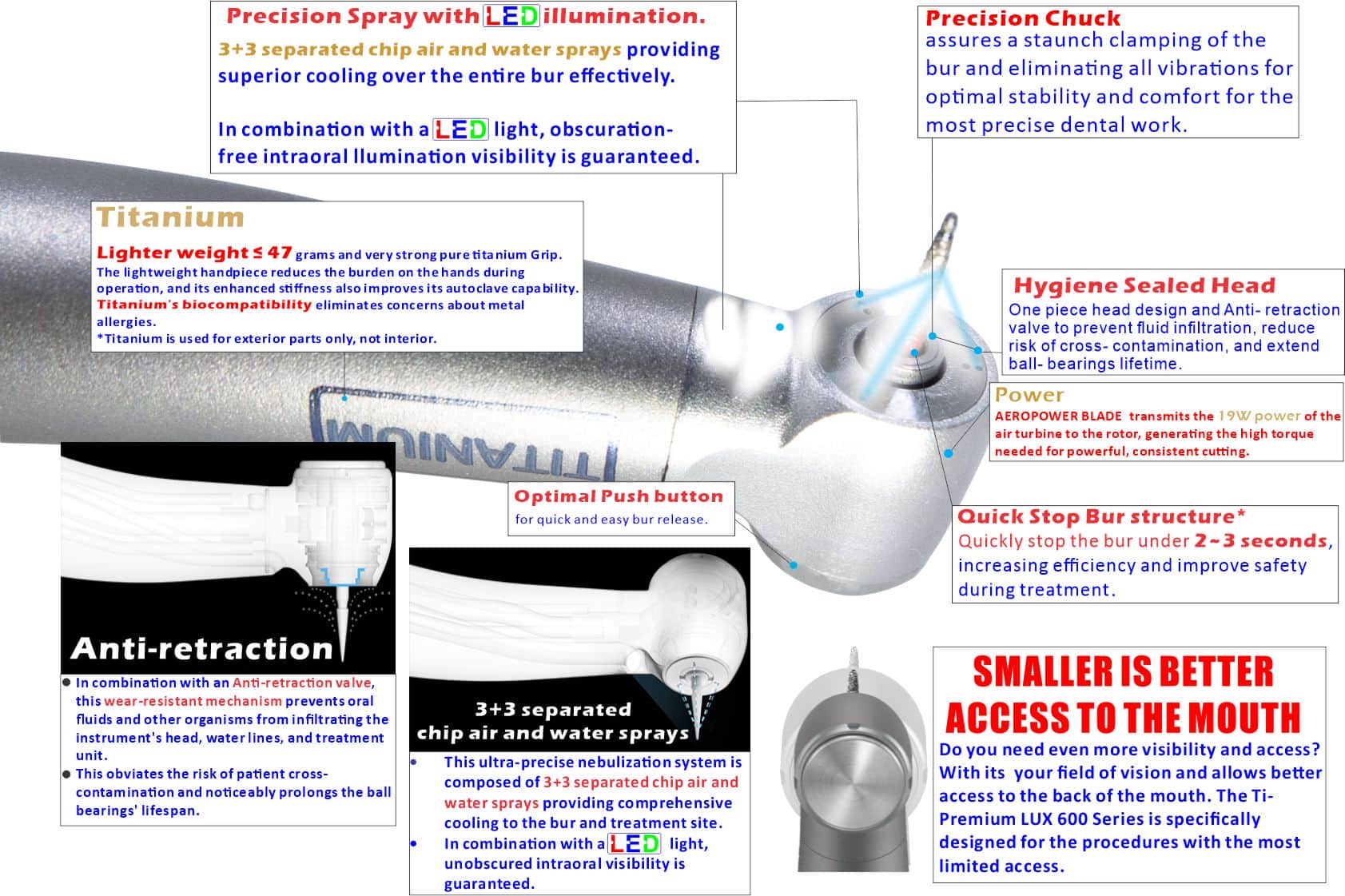

The 3+3 spray design separates chip-air and water ports, crossing the spray outside the nozzle. This helps provide cooling, reduce clogging risk and minimize illumination blockage.
HYGIENE SUPPORT
Anti-Retraction Sealed Head
The integrated hygienic sealed-head design includes anti-retraction support. When paired with the corresponding quick coupling and water-line non-return valve, it helps reduce fluid backflow and supports clinical infection-control protocols.
QUIET OPERATION
Quiet Means Comfort
Low-noise, low-vibration operation helps improve the treatment experience for both clinicians and patients.
≤60 dB(A)
NL OR KL?
Choose by Quick-Coupling System

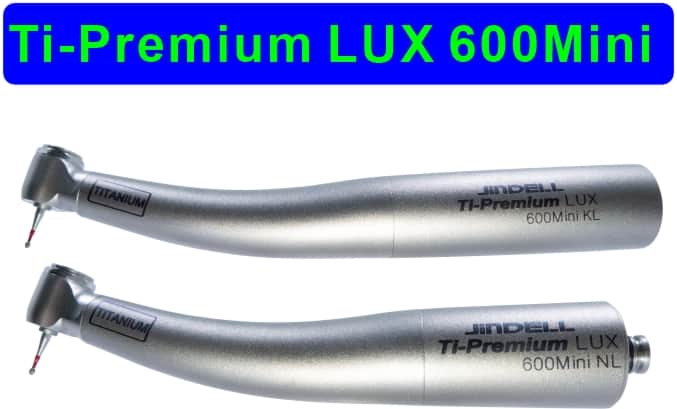

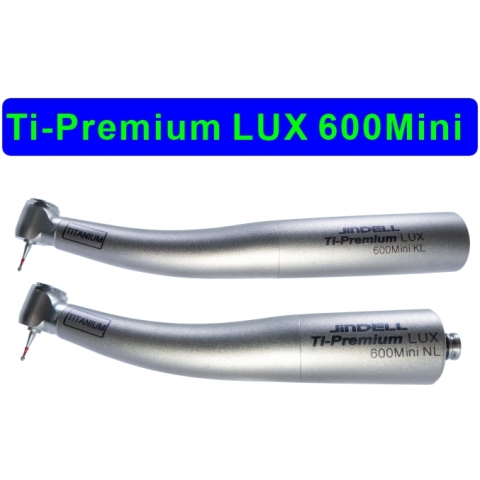

Ti-Premium LUX 600Mini is available in NSK-compatible and KaVo-compatible configurations. Confirm the existing dental-unit coupling system before ordering.
| Feature | Ti-Premium LUX 600Mini NL | Ti-Premium LUX 600Mini KL |
|---|---|---|

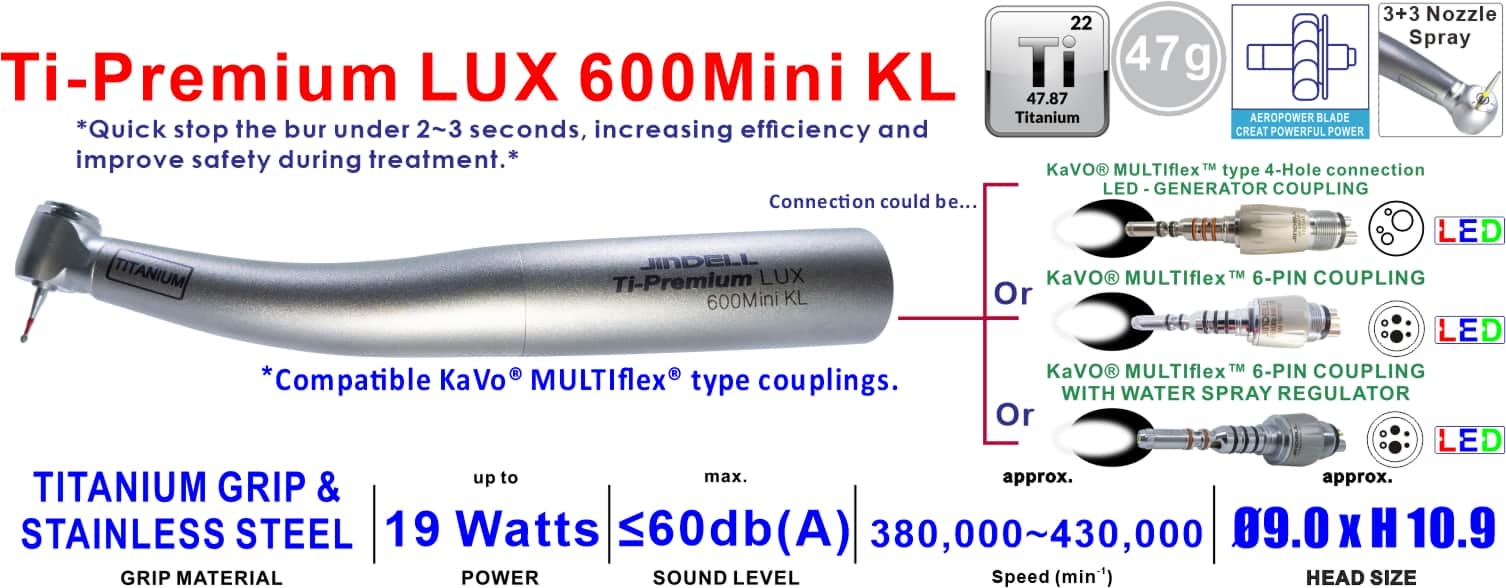

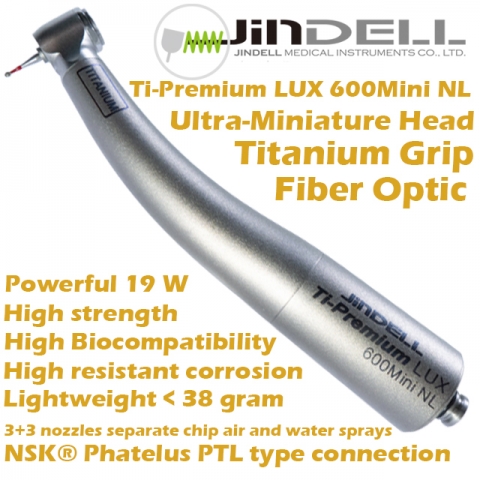

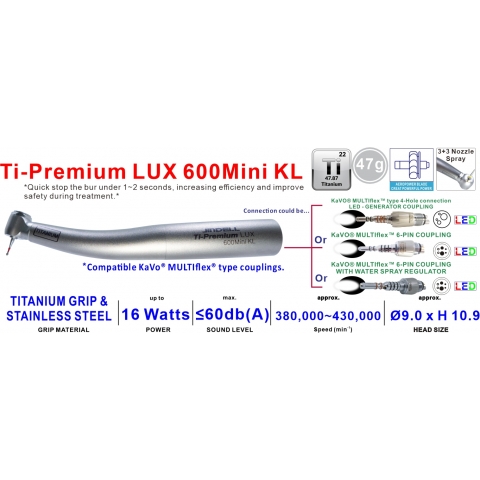

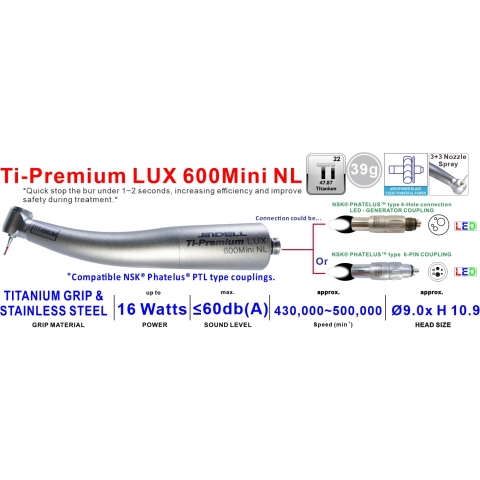

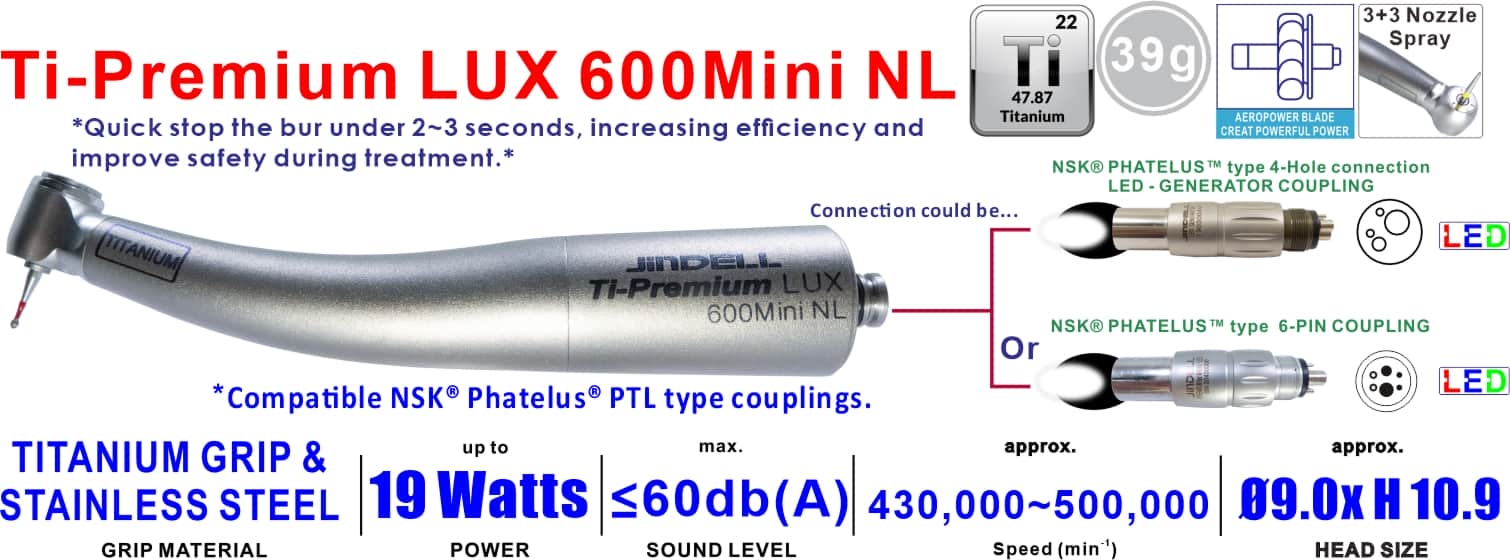

| Coupling configuration | NSK PHATELUS PTL LUX-compatible quick coupling | KaVo MULTIflex LUX-compatible quick coupling |
| Weight | Approx. 38.5 g | ≥46.5 g |
| Head size | Ø9.0 × H10.9 mm | Ø9.0 × H10.9 mm |
| Speed | 380,000–450,000 min−1 | 380,000–450,000 min−1 |
| Cooling | 3+3 separated air/water spray | 3+3 separated air/water spray |
| Best for | NSK-compatible dental-unit workflows | KaVo-compatible dental-unit workflows |

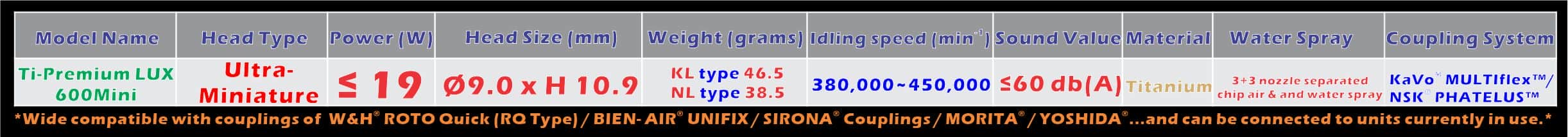

TECHNICAL SPECIFICATIONS
Ti-Premium LUX 600Mini Specifications
Specifications are reorganized from current JinDELL public product information. Final specifications, configuration and availability may vary by market or ordering version. Please confirm the latest IFU and JinDELL sales information before ordering.
COUPLING COMPATIBILITY OPTIONS
Designed for Global Quick-Coupling Systems
The NL model connects with NSK PHATELUS PTL LUX-compatible quick couplings. The KL model connects with KaVo MULTIflex LUX-compatible quick couplings. Depending on configuration, compatibility discussions may include W&H ROTO Quick, Bien-Air UNIFIX, Morita, Yoshida and Sirona systems.
Compatibility depends on the selected JinDELL model and configuration. NSK, PHATELUS, KaVo, MULTIflex, W&H, ROTO Quick, Bien-Air, UNIFIX, Morita, Yoshida and Sirona are trademarks or names of their respective owners. Compatibility references do not imply endorsement, authorization or affiliation. Confirm the exact connection before ordering.
ENGINEERED IN TAIWAN
Why JinDELL?
JinDELL has developed and manufactured dental instruments in Taiwan since 1971, supporting dental professionals, clinics, dealers and OEM/ODM partners.
- Dental instrument manufacturing experience in Taiwan
- Titanium high-speed handpiece and quick-coupling configuration support
- Ceramic ball bearing and replaceable cartridge technology
- Distributor cooperation, bulk orders and OEM/ODM inquiries
- Product information, technical consultation and after-sales support
FREQUENTLY ASKED QUESTIONS
Questions from Dentists and Dealers
Which procedures is Ti-Premium LUX 600Mini designed for?
It is designed for posterior access, pediatric dentistry, limited-opening cases and other procedures where visibility and access are important.
What is the difference between NL and KL?
NL is for NSK PHATELUS PTL LUX-compatible quick-coupling configurations. KL is for KaVo MULTIflex LUX-compatible quick-coupling configurations. Confirm your dental-unit coupling system before ordering.
How is 3+3 spray different from conventional spray?
The 3+3 design separates chip-air and water ports and crosses the spray outside the nozzle, helping reduce clogging risk while supporting effective cooling.
Can the handpiece be sterilized at 135°C?
Yes. The handpiece is autoclavable or thermo-disinfectable up to 135°C / 275°F. Always follow the current instructions for use, cleaning, lubrication and sterilization.
What is the warranty period?
Current public product information lists a 2-year limited warranty for the titanium handpiece series with ceramic ball bearings, excluding consumables. Actual coverage follows official warranty terms and normal-use conditions.
FOR DENTISTS, DEALERS AND DISTRIBUTORS
Build a Clearer Ultra-Miniature Handpiece Option.
Contact JinDELL for Ti-Premium LUX 600Mini NL / KL configuration, coupling compatibility, catalog materials, distributor pricing or OEM/ODM support.
