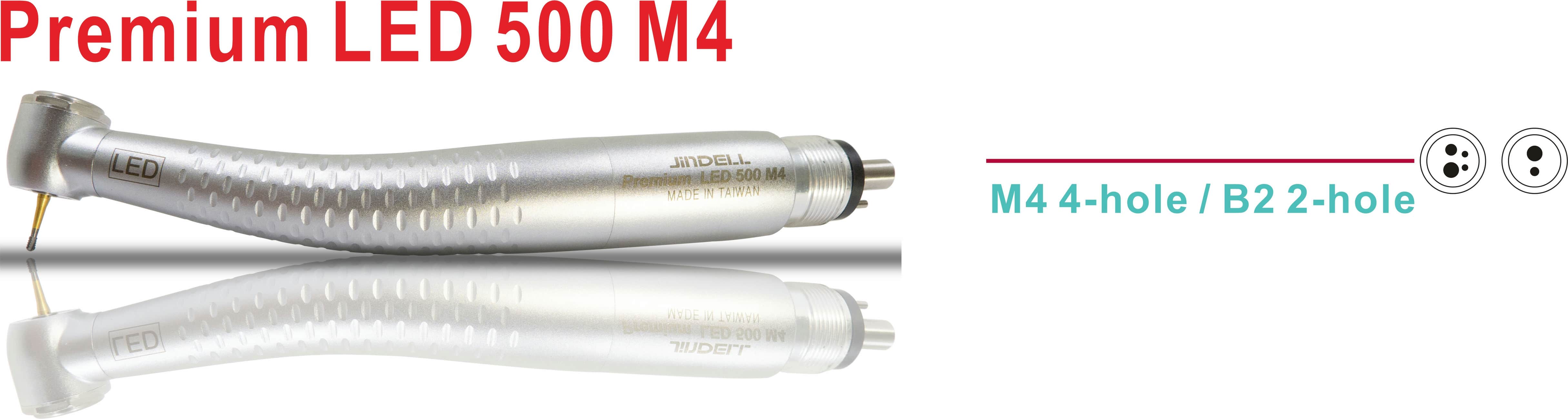

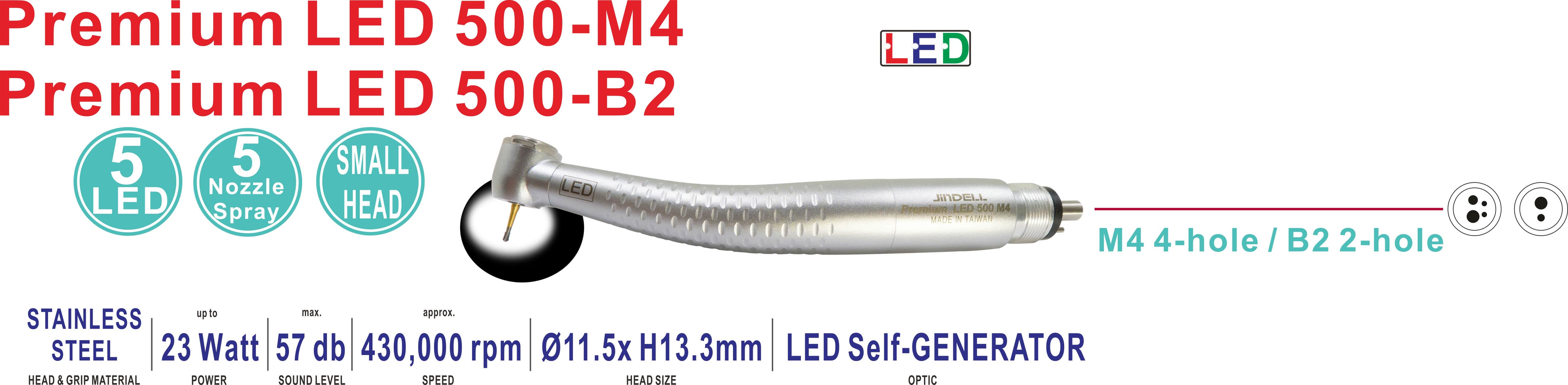

Premium LED 500 — Self-Illuminating Dental high-speed Handpiece with a Ring 5-LED.
Built for procurement teams and busy clinics, the Premium LED 500 features a self-generating 5-LED ring for uniform, shadow-free visibility—eliminating the need for external fiber optics. A compact head, strong 23 W cutting torque, whisper-quiet operation, and robust hygiene features make it a dependable, easy-to-maintain choice for modern dentistry.
Why the 5-LED Ring Outperforms Single-LED
- 360° uniform illumination: a ring of five LEDs eliminates dark spots and reduces eye strain.
- Self-powered: the internal micro-generator powers the LEDs—no light cables or external optic couplings.
- Consistent visibility: clearer margins in deep cavities and posterior regions for faster, more precise work.
Core Features
- Self-illuminating 5-LED ring (no fiber optics required).
- Compact head: Ø11.5 × H13.3 mm for improved access and sightlines.
- High cutting torque: up to 23 W for efficient preparation.
- 5-nozzle asymmetrical spray for optimal cooling and debris control.
- Whisper-quiet ≤57 dB(A): smooth, low-vibration operation for patient comfort.
- Anti-retraction sealed head + non-return valve to reduce cross-contamination and extend bearing life.
- Ceramic bearings & push-button chuck for reliability and precise bur retention.
- Titanium scratch-resistant grip finish for durability and secure handling.
- Sterilization-ready: washer-disinfectable and autoclavable up to 135 °C / 275 °F.

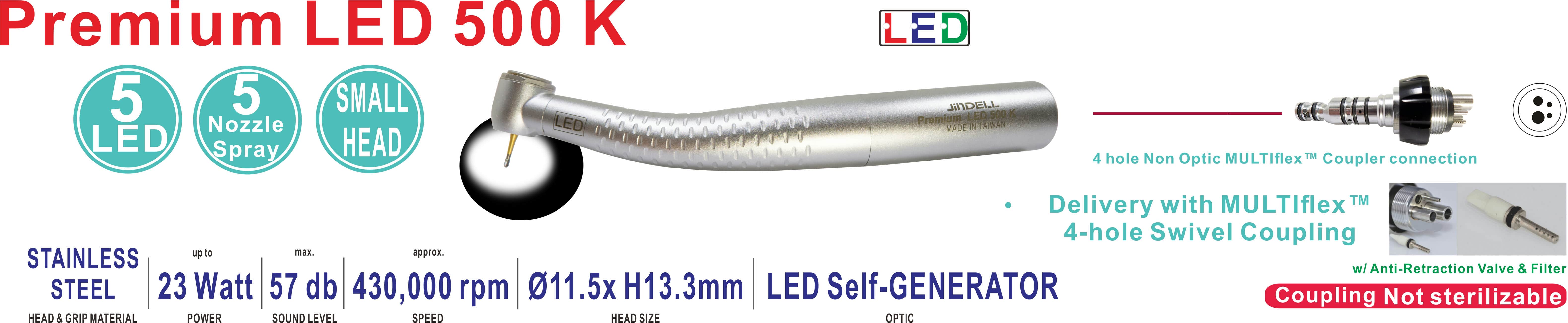

- Coupling options: KaVo® MULTIflex™, QDJ, M4 (4-hole), B2 (2-hole).
Technical Specifications
| Illumination | Self-generating 5-LED ring (no external fiber optics) |
|---|---|
| Head Size | Ø11.5 × H13.3 mm (compact) |
| Cutting Torque | 23 W |
| Cooling System | 5-nozzle asymmetrical mixed spray |
| Noise Level | ≤57 dB(A), whisper-quiet |
| Hygiene | Anti-retraction sealed head with non-return valve |
| Bearings & Chuck | Ceramic bearings; push-button chuck (secure retention) |
| Grip / Surface | Titanium, scratch-resistant finish |
| Sterilization | Thermo washer-disinfectable; autoclavable up to 135 °C / 275 °F |
| Coupling Options | KaVo® MULTIflex™, QDJ, M4 (4-hole), B2 (2-hole) |
Premium LED 500 - FAQ
Q1. What makes the Premium LED 500 different from other self-illuminating handpieces?
Most self-illuminating turbines use a single LED, but the Premium LED 500 features a ring of 5 LEDs, delivering brighter, more uniform light with zero shadows.
Q2. Does the 5-LED ring need external fiber optics?
No. The built-in generator powers the LEDs directly, eliminating the need for external light transmission or cables.
Q3. How does the 5-LED system help during treatment?
It provides 360° illumination, improving visibility in deep cavities and posterior areas, reducing chair time and clinical errors.
Q4. What cooling mechanism is used?
A 5-nozzle spray system ensures efficient cooling and debris removal.
Q5. What couplings are compatible?
The Premium LED 500 is compatible with KaVo® MULTIflex™, QDJ, M4, and B2 connections.
Q6. Can it be sterilized?
Yes—washer-disinfectable and autoclavable up to 135 °C / 275 °F.
Q7. What performance values can buyers expect?
It delivers 23 W torque with ≤57 dB(A) whisper-quiet operation.
-
