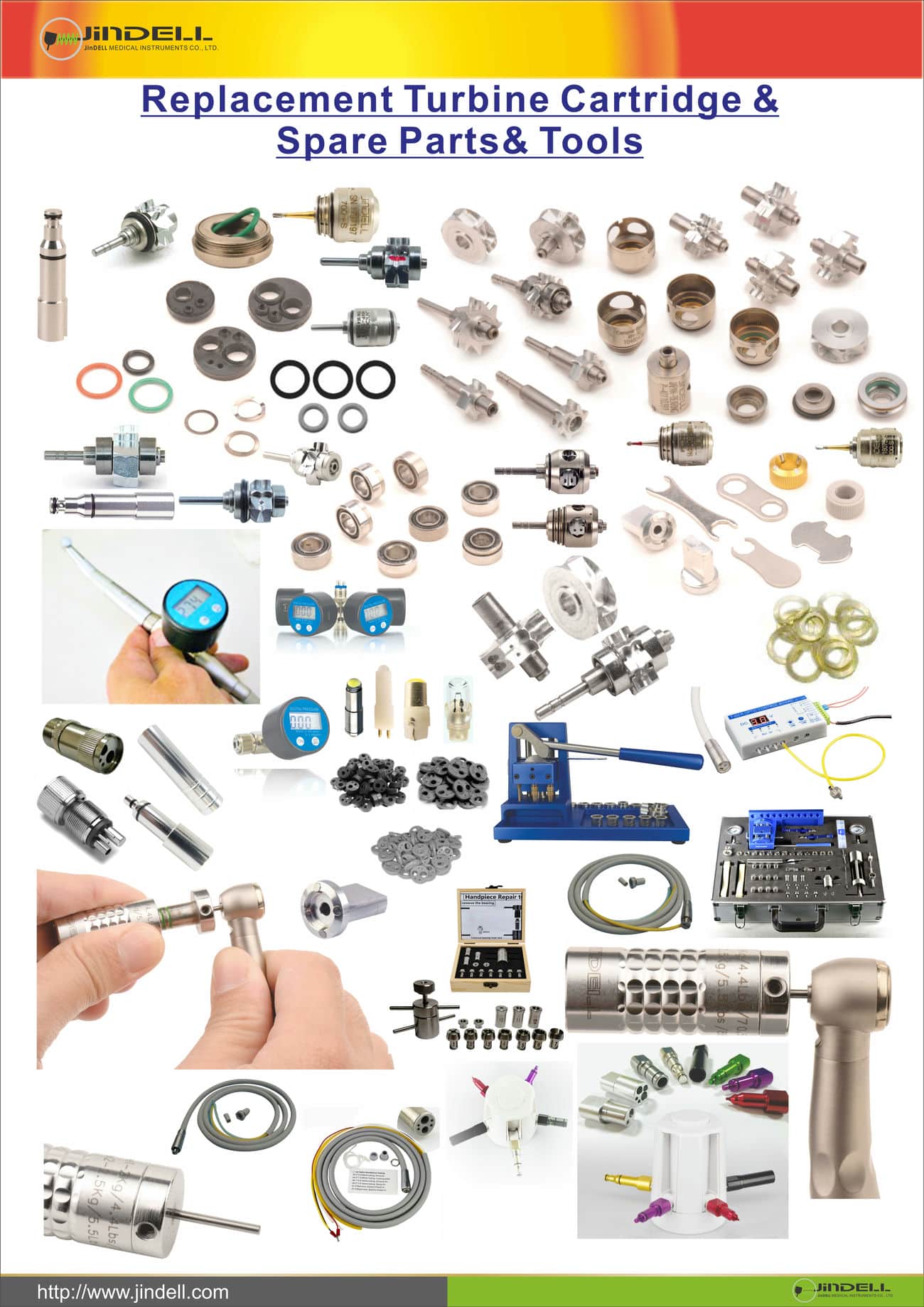

Dental Handpiece Repair Parts & Tools

Dental Handpiece Repair Parts & Tools

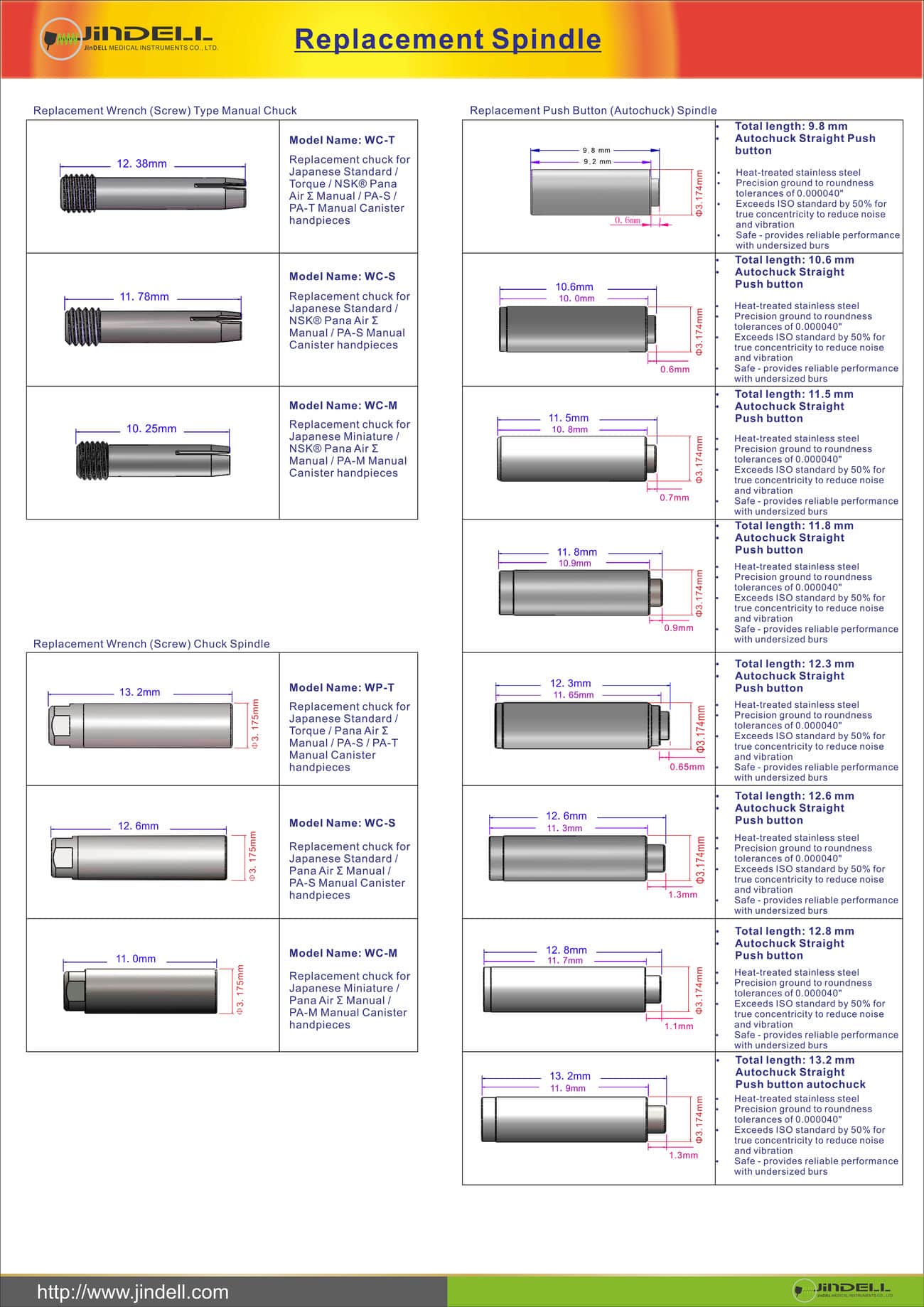

Compatible Dental Turbine Spindles


Compatible Dental Turbines Spindles & Parts

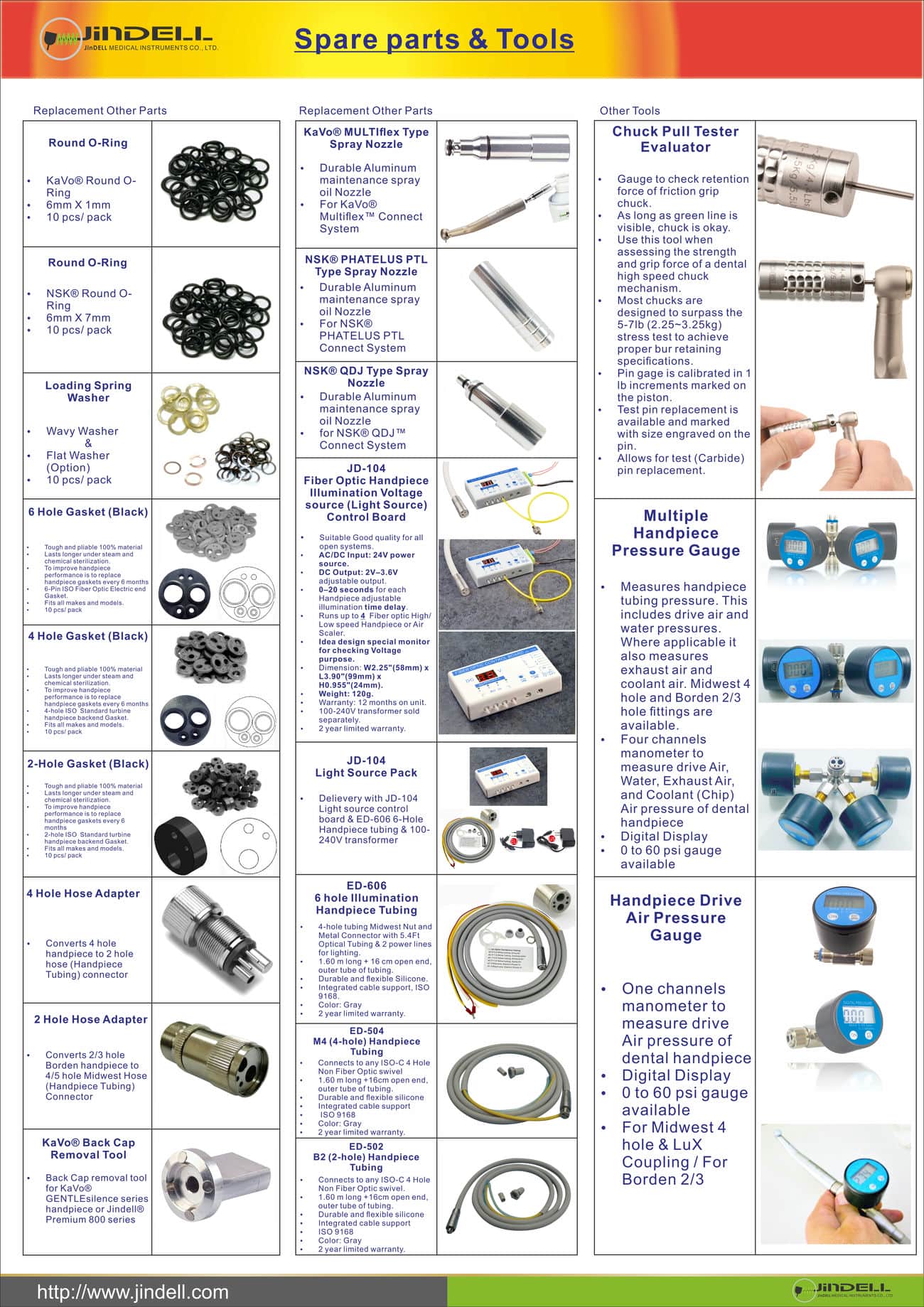

Dental Handpiece Repair Parts & Tools



Dental Handpiece Repair & Tools






About Turbine Cartridges

Turbine cartridges (rotors) are the engine of the air-driven highspeed dental handpiece. The key components are

  1. Spindle/chuck (collet) assembly
  2. Impeller
  3. Bearings

Most also include other hardware, such as

  1. O-ring
  2. Slinger
  3. Washer
About Autochucks
Autochuck is another name for the push button spindle/chuck (collet) assembly which holds the dental bur and onto which the other components of the turbine cartridge (e.g. bearings, impeller) are attached or pressed. The ISO maximum specification for concentricity (run-out) is 0.0012 in. / 0.03 mm.

Two common autochuck designs are clamp-pad and wedge.

Actuator

The button (A) that extends from the back of the autochuck. When the button on the end cap of a dental handpiece is pressed, it pushes down on the actuator which opens the chuck and allows the bur to be inserted or removed.




Dental Handpiece Replacement light bulbs


REPLACEMENT LIGHT BULBS
  • Model Name:  K-Xeon Bulb
KaVo type Replacement Xeon Bulb
  • Replacement XENON bulb for use with all KaVo® MULTIflex™ lux 6-pin couplers. / It is made out of high lux Xenon for brighter output than original brand / Higher spot intensity / Excellent Brightness / Longer life and performance reliability / Made in Japan.

  • Model Name:  K-LED Bulb
K-LED Bulb KaVo type Replacement LED Bulb
  • Replacement LED bulb for use with all KaVo® MULTIflex™ lux 6-pin couplers. / Simply, Less self-heating, Lesser Wattage, Durable. / Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.

  • Model Name:  N-LED Bulb
N-LED Bulb NSK type Replacement LED Bulb
  • Replacement LED bulb for use with all NSK® Mach™ / PHATELUS™ / FlexiQuick™ PTL-CL-III/ 4HV Lux 6-pin couplers. / Simply, Less self-heating, Lesser Wattage, Durable. Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.

  • Model Name:  N-LED Bulb
WT-LED Bulb W&H Turbine type Replacement LED Bulb
  • Replacement LED bulb for use with all W&H® / A-Dec® Turbines Lux 6-pin couplers. / Simply, Less self-heating, Lesser Wattage, Durable. Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.
