CLASSIC LINE
NON-OPTIC
AIR-TURBINE SERIES


Precision, Ergonomics, and Durability for Daily Dentistry

The Classic Line by JinDELL represents a refined series of non-optic air turbine handpieces engineered for dental professionals who prioritize precision, patient comfort, and long-lasting durability. With advanced spray systems, ergonomic designs, and reliable ceramic bearings, these handpieces are built for demanding clinical environments while remaining easy to service and repair.

Non-Optic Dental Handpiece with Powerful Head,  Quattro Spray, 25W, (M4) 4-hole fixed backend connection

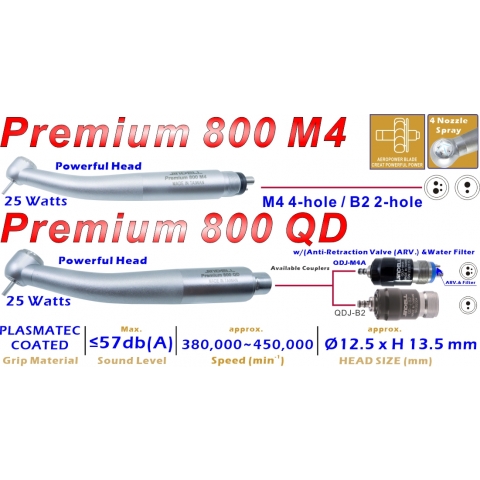

Model Name: Premium 800 M4

Features:

• The compact head (Ø12.5 mm x H13.5 mm) ensures ergonomic comfort and precise results, while always guaranteeing an optimum view.
• Combined with a Non-Return valve (Anti-Retraction Valve), this wear-resistant mechanism prevents oral fluids and other organisms from seeping into the instrument head, water pipes, and treatment equipment. It avoids the risk of cross-contamination in the patient and prolongs the life of the ball bearings.
• The long-term stability of the chrome-plated Grip and Head ensures easy cleaning and a good grip due to its surface finish. (PLASMATEC COATED)
• Powerful Output- 25-watt power
• The ultra-precise atomizing system features a 4-nozzle asymmetrical mixed spray and optimal cooling, providing integral optimal cooling of the treatment site.
• Quiet, vibration-free operation ≦57 dB (A) Sound level.
• Compatible with KaVo^® GENTLEsilence^™ 6500BR / 8000B type of Turbine cartridge.
• Idling speed 325,000~ 380,000 min^-1
• Push button Chuck & Back cap
• Robust Ceramic ball bearings, which are wear-resistant, give the handpiece a longer useful life and reduce noise levels.
• Weight 65 grams.
• (M4) 4-hole fixed backend connection.
• Fatigue-free work.
• Thermo washer disinfectable and sterilizable up to 135°C or 275°F.
• FG burs Ø 1.6 mm for bur lengths up to 21mm.
• The dental handpiece comes with a 1-year warranty and a 1-year warranty on the ceramic bearings.
• I upgraded the wedge design for enhanced clamping force & improved bur retention over time.
• Precision Balancing.
• State-of-the-art manufacturing cell for impellers.
• Stainless steel bur guide bushing improves bur concentricity and extends chuck life.
• Heat-treated, precision-ground spindles with honing of critical dimensions reduce chuck wear and prolong life.
• EDM pprecision-machinedcollet.

ECONOMY LINE NON-OPTIC AIR TURBINES COLLECTION

Non-optical dental Handpiece with Powerful Head, Quattro Spray, 19W, (M4) 4-hole fixed backend connection, six kinds of colorful grip optional, Lightweight Aluminum material Grip.

Features:

• Torque Head (Ø12.3 mm x H13.9 mm). /Lightweight, only 36 grams- Aluminum material Grip. / Output- 20-watt power
• Quattro Water Spray. / Quiet, vibration-free operation ≦59 db(A) Sound level.  / Max. speed 380,000 min^-1 / Push button Chuck & Back cap / Ceramic ball bearings / (M4) 4-hole fixed backend connection. / Thermo washer disinfectable and sterilizable up to 135°C or 275°F / 6-month warranty on the ceramic ball bearings.

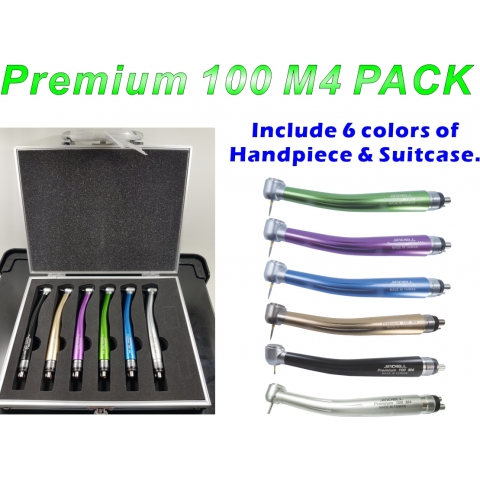

Premium 100 M4 PACK

Features:
Include six colors of handpiece and suitcase.



---

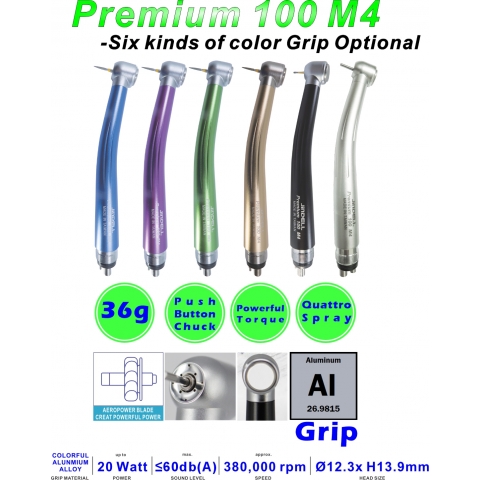

Model Name:  Premium 100 M4

(4-Hole M4 Fixed backend connection)




Model Name:  Premium 100 M4
(4-Hole M4 Fixed backend connection)

Features:

• NON-OPTIC / Economy Line Colorful Handpiece / Available Colors: Green, Purple, Blue, Gold, Black, and Silver for Color management purposes. / Compact Head (Ø12.3 mm x H13.9mm) / Anti-Retraction Suction hygiene head. The lightweight aluminum alloy grip and the long-term stable, high-hardness chrome-plated head ensure easy cleaning and a good grip due to the surface finish. / Powerful Output- 19-watt power / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation ≦60 dB (A) Sound level. / Max speed 370,000 min^-1 / Push button Chuck & Back cap / Robust Ceramic ball bearings / LightWeight 36g. / Available to M4 Fixed backend.

*A promotion case is also available, which includes a six-color handpiece in one suitcase package. The handpiece is autoclavable up to 135°C (275°F), and the warranty is valid for six months.


---

TRADITIONAL LINE NON-OPTIC AIR-TURBINES COLLECTION

---

Model Name:  SP M4 / SP B2
(4-Hole (M4) / 2 Hole (B2) Fixed backend connection)



Features:

• NON-OPTIC / Standard Head (Ø12.1 mm x H13.3mm) / Canister Turbine cartridge easily replaceable / Compatible with NSK® PANA Air™ NPA-SU03 type turbine cartridge for urgent replacement purposes. / Single mist water spray / Max speed 450,000 min^-1 / Wrench Chuck /  Ceramic ball bearings / Available to M4/ B2 Fixed back-end connection  / 6- months limited warranty.

---

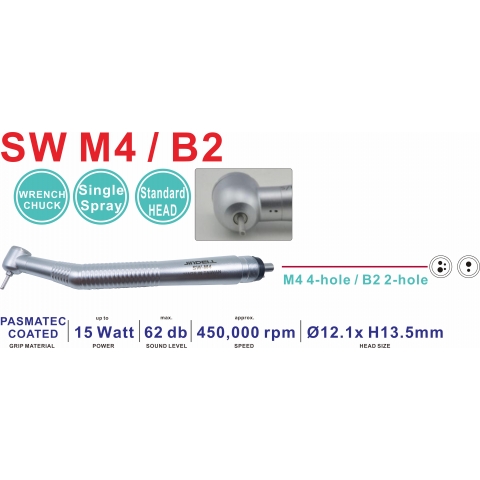

Model Name:  SW M4 / SW B2
(4-Hole (M4) / 2 Hole (B2) Fixed backend connection)
