ELECTRIC MICROMOTOR CONTROL SYSTEM
Bring Electric Control
into Daily Dentistry.
The JinDELL® Premium LUX E-PLUS Electrical Motor System is a compact electric micromotor platform designed for restorative, endodontic, low-speed, and dental-unit integration workflows.
WHY CLINICIANS CHOOSE IT
Stable Electric Control for a Wider Range of Procedures
Wide Speed Range
When combined with compatible contra-angles, the system covers 100~200,000 min-1 for broad clinical applications.
High Torque Control
The external electric motor system delivers up to 6.9 N.cm of torque for stable cutting performance.
Brushless Micromotor
A maintenance-free DC brushless ISO-E short micromotor reduces the need for brush replacement.
Daylight LED
Built-in white LED illumination supports clearer visibility and helps reduce visual fatigue during procedures.

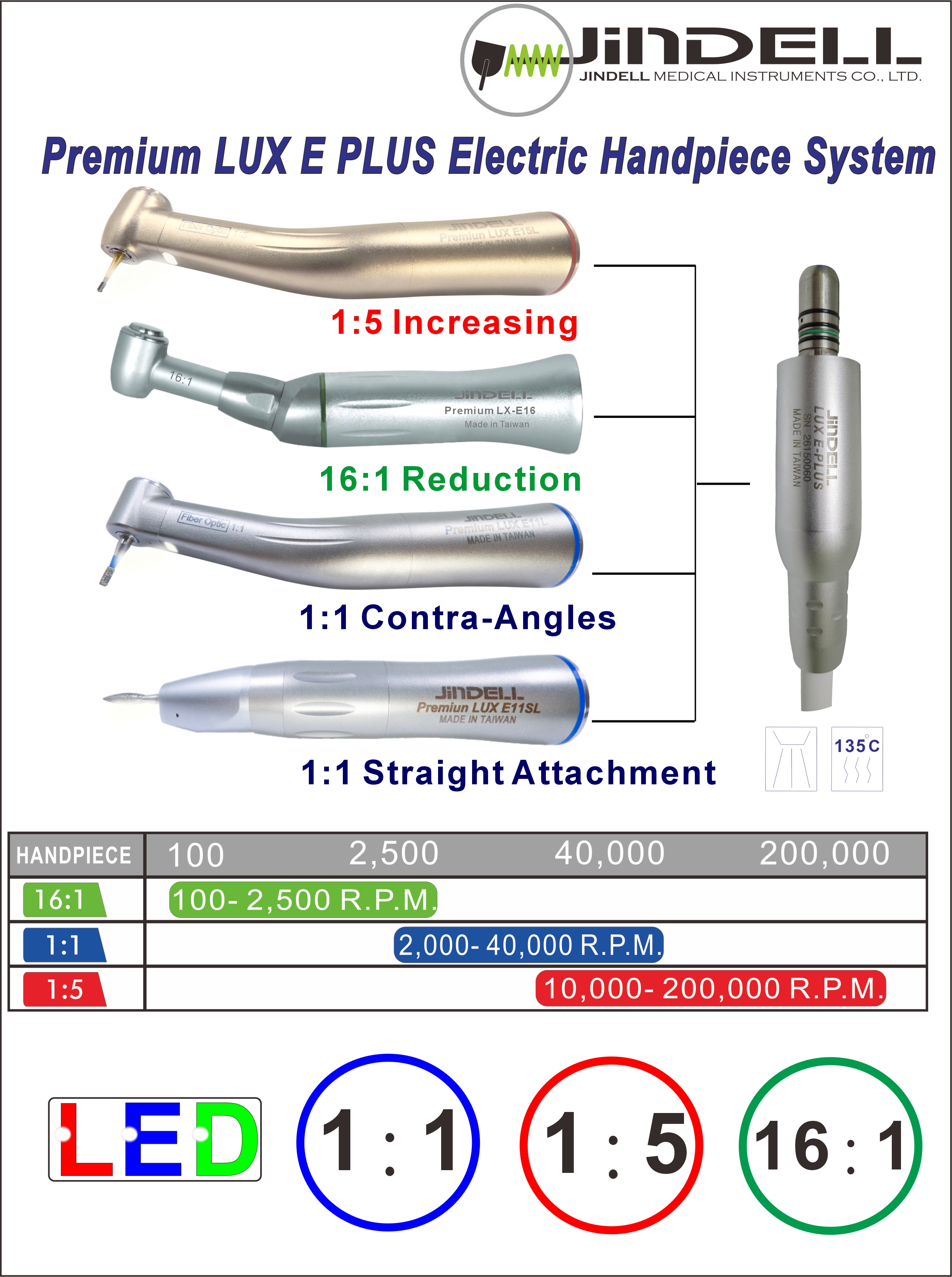

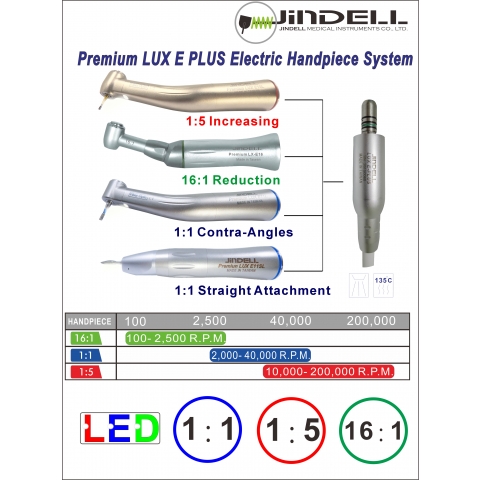

FROM LOW SPEED TO HIGH SPEED
One Platform for 1:1, 1:5 / 1:4.2 and 16:1 Workflows
Premium LUX E-PLUS supports direct-drive, speed-increasing, and reduction contra-angle applications, including restorative, crown removal, tooth preparation, endodontic, and low-speed clinical procedures.
100~200,000 min-1
System speed range depends on the selected contra-angle ratio and operating conditions.

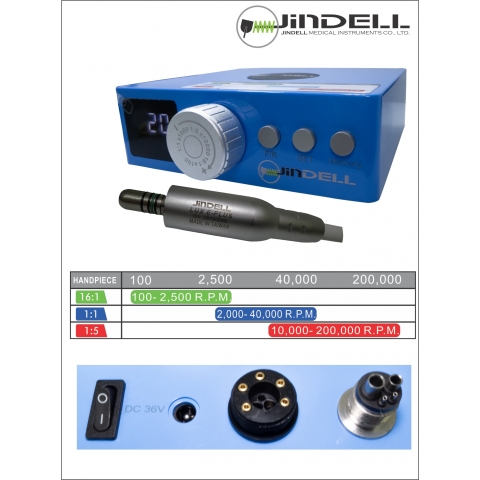

MOBILE TABLETOP SYSTEM
Easy to Install. Easy to Operate.
The external control unit connects directly to the existing dental chair handpiece tubing, including air, water, and foot-pedal control. The digital display helps confirm speed, gear ratio and memory mode, while the adjustment knob and forward/reverse control support intuitive operation.

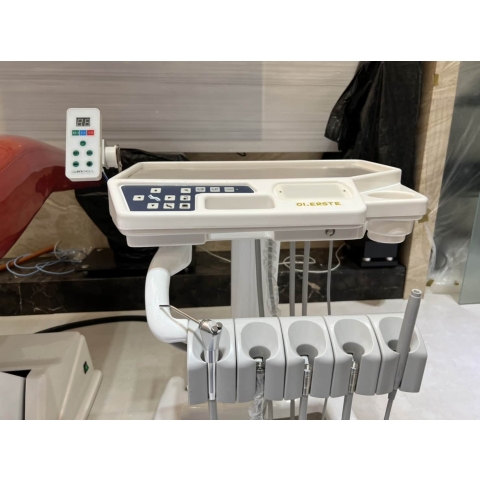

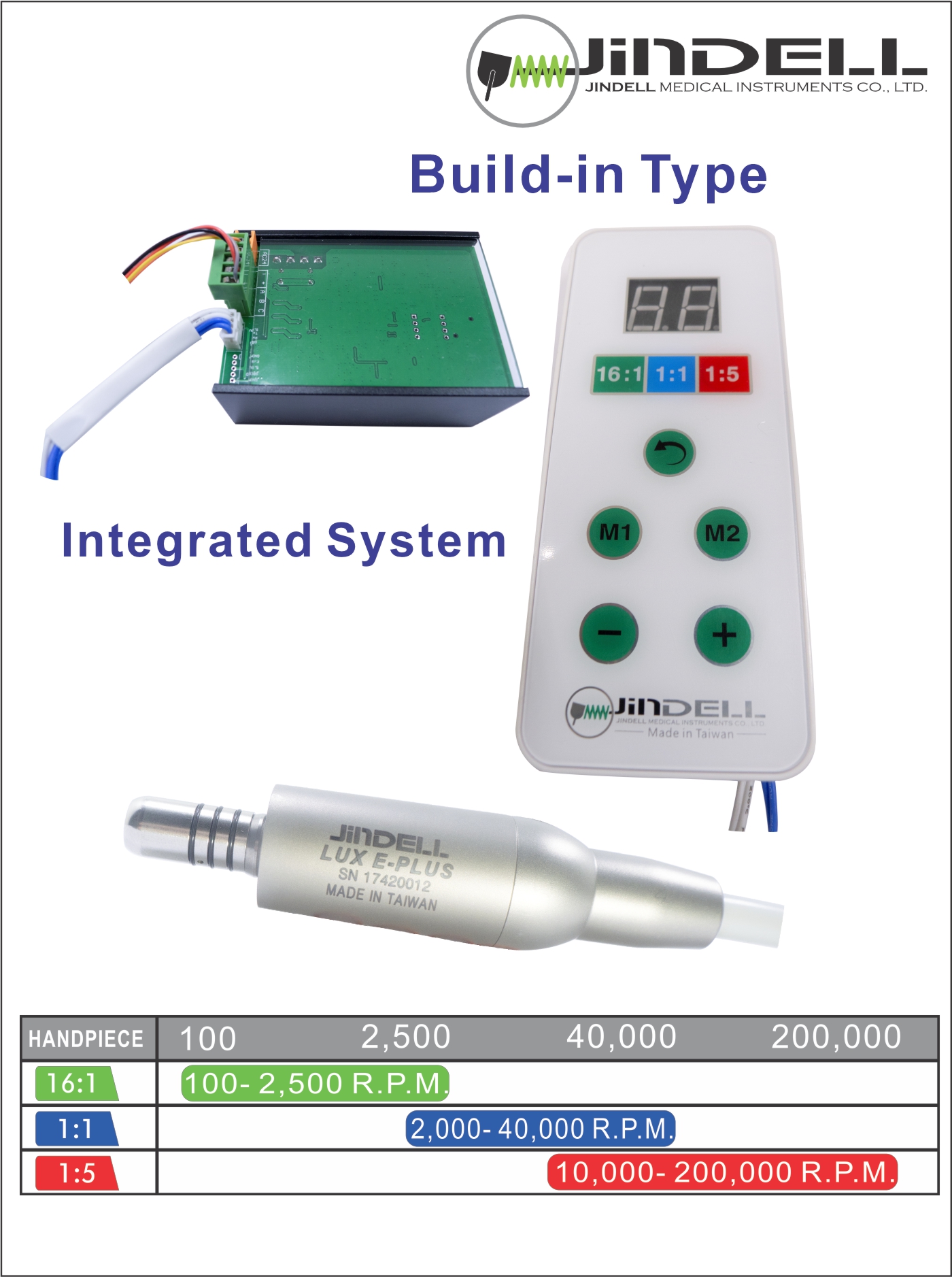

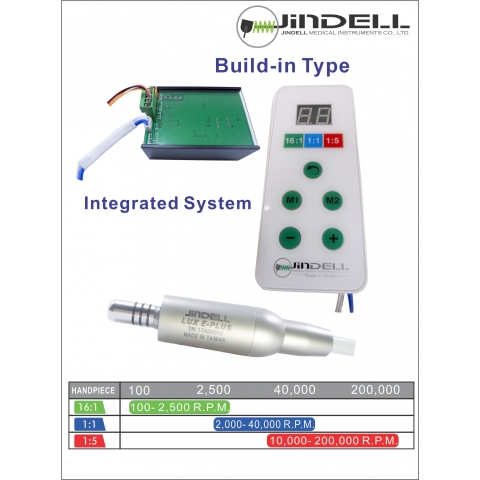

BUILT-IN SYSTEM OPTION
Designed for Dental Unit Integration
For dental equipment manufacturers, dealers, and OEM/ODM partners, the built-in electric motor system can support new or existing dental-unit integration projects and help build a complete electric handpiece platform.
COMPACT MICROMOTOR
Lightweight Control in the Hand
The E-PLUS motor handpiece measures Ø22 × L70 mm. Depending on the configuration, the motor handpiece weighs 76 g for the external system or 67 g for the built-in system, supporting comfortable handling and precise control.
CLINICAL APPLICATION GUIDE
Choose the Contra-Angle Ratio for the Procedure
E-PLUS is not only a motor. It is a flexible electric handpiece platform for clinics, dealers and equipment partners.
| Configuration | Primary Use | Clinical Value |
|---|---|---|
| 1:5 / 1:4.2 Speed-Increasing Contra-Angle | Crown removal, tooth preparation, restorative, and surgical-related procedures | High-speed cutting with stable electric torque |
| 1:1 Direct Drive Contra-Angle / Straight Handpiece | Low-speed finishing, polishing, and daily clinical procedures | Balanced speed and control for everyday use |
| 16:1 Reduction Contra-Angle | Endodontic and controlled low-speed workflows | Stable operation at lower speed ranges |
EXTERNAL OR BUILT-IN?
Select the System for Your Clinical or Integration Need
| Item | External Electric Motor System | Built-in Electric Motor System |
|---|---|---|
| Best for | Clinics, dealer demonstration, repair testing, and existing dental-unit upgrade | Dental equipment manufacturers, OEM/ODM, and dental-unit integration projects |
| Memory mode | M1 / M2 / M3 | M1 / M2 |
| Maximum torque | 6.9 N.cm | 3.4 N.cm |
| Rated input | AC 100–240V 50/60Hz, DC 36V | AC 24V, DC 36V |
| Control unit size | W125 × D121 × H38 mm | W55 × D130 × H21 mm |
| Motor handpiece weight | 76 g | 67 g |
| Control unit weight | 546 g | 250 g |
TECHNICAL SPECIFICATIONS
Premium LUX E-PLUS Specifications
| Product type | Dental electric micromotor control system |
| Compatible applications | 1:1 direct drive contra-angle / straight handpiece, 1:5 & 1:4.2 speed-increasing contra-angle, 16:1 reduction contra-angle |
| System speed range | 100–200,000 min-1, depending on the selected gear ratio |
| Motor speed | 2,000–40,000 min-1 |
| Motor type | DC brushless ISO-E type short micromotor |
| Light source | White LED/daylight LED |
| Motor handpiece size | Ø22 × L70 mm |
| Cooling | Internal water |
| Sterilization | Motor handpiece autoclavable up to 135°C |
| Compatibility note | ISO Type E connection supports multiple contra-angle and straight handpiece configurations. Confirm exact compatibility before ordering. |
Specifications are reorganized from the current JinDELL Traditional Chinese product information. Final specifications, package contents and availability may vary by market or configuration. Please confirm the latest IFU and JinDELL sales information before ordering.
PACKAGE CONTENTS
External and Built-in System Configurations
External Electric Motor System
- External control unit
- Motor handpiece
- Motor handpiece tube
- AC adapter
Built-in Electric Motor System
- Built-in main control board
- Motor handpiece and motor handpiece tube

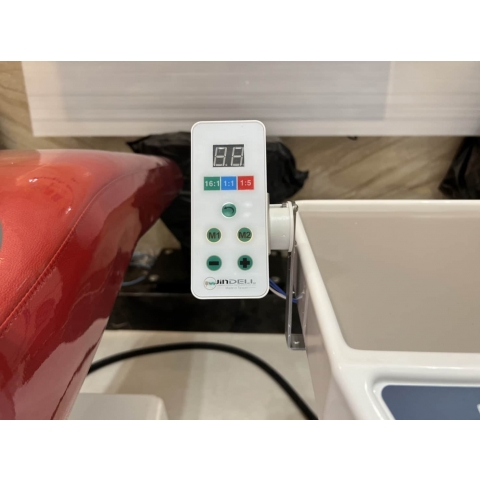

- Built-in control panel
- Installation kit: sealing cap, sealing blocker, three-way connector, and mounting base.
ENGINEERED IN TAIWAN
Why JinDELL®?
JinDELL® develops and manufactures dental instruments in Taiwan, supporting dentists, clinics, international dealers, and OEM/ODM partners. For dealers, E-PLUS is more than a single device; it is a flexible electric motor platform for low-speed, speed-increasing, and dental-unit integration applications.
- Dental instrument manufacturing experience in Taiwan.
- Support for clinics, dealers, and equipment integration projects.
- Compatible with multiple contra-angle and straight handpiece configurations.
- Product information, technical consultation, and after-sales support.
- Suitable for dental equipment suppliers and OEM/ODM project discussions.
FREQUENTLY ASKED QUESTIONS
Questions from Dentists and Dealers
What procedures is Premium LUX E-PLUS designed for?
It can support 1:1 direct drive, 1:5/1:4.2 speed-increasing, and 16:1 reduction contra-angle workflows, including restorative treatment, crown removal, tooth preparation, endodontic, and low-speed applications.
What is the difference between the external and built-in systems?
The external system is suitable for clinics, dealer demonstrations, repair testing, and upgrades to existing dental units. The built-in system is designed for dental equipment manufacturers, OEM/ODM partners, and dental-unit integration projects.
Is the motor handpiece autoclavable?
Yes. The motor handpiece is autoclavable up to 135°C. Always follow the latest instructions for use, cleaning, maintenance, and sterilization procedures.
Can it be used with different contra-angle or straight handpiece systems?
The ISO Type E connection supports multiple contra-angle and straight handpiece configurations. Third-party names are used only for compatibility reference; confirm the exact configuration with JinDELL® before ordering.
Does JinDELL support distributor or OEM/ODM cooperation?
Yes. JinDELL® supports product information requests, distributor inquiries, equipment integration discussions, and qualified OEM/ODM cooperation.
