TITANIUM FIBER-OPTIC HIGH-SPEED HANDPIECE
One Premium Platform.
Two Head Options.
The JinDELL Ti-Premium LUX 700 PLUS is a titanium fiber-optic high-speed dental handpiece available with Standard and Mini Head configurations.

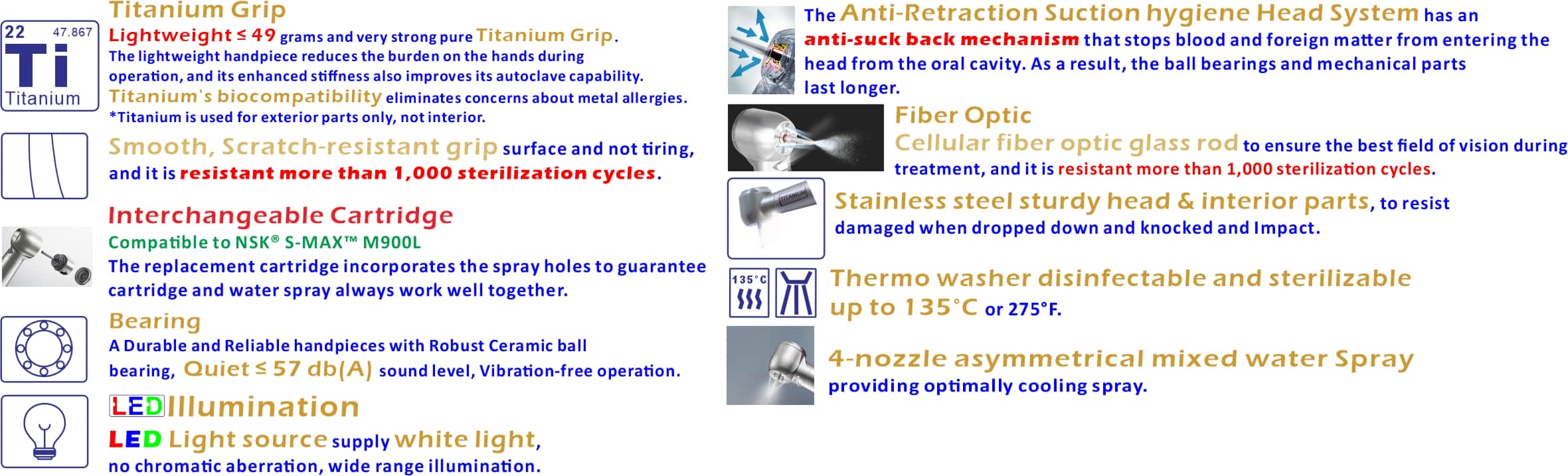

DESIGNED AROUND DAILY PRACTICE
Performance You Can Feel
Lightweight Control
Approximately 30% lighter than a comparable all-stainless-steel fiber-optic handpiece, helping reduce hand fatigue during extended procedures.
Stable Cutting
Premium ceramic ball bearings support smooth rotation, reduced vibration, and consistent cutting control.
Effective Cooling
Four asymmetrical spray ports distribute cooling water around the bur and support a clearer operating field.
Hygiene Support
A sealed-head anti-retraction design and non-return valve help reduce fluid backflow into the handpiece.
COUPLING COMPATIBILITY OPTIONS
Standard Head／Mini Head Compatibility options are available for the following coupling or tubing systems:
KaVo® MULTIflex® Couplings、NSK® PHATELUS PTL Couplings、Sirona® Couplings、Bien-Air® UNIFIX® Couplings、W&H® ROTO QUICK (RQ Type) Couplings、Morita® Main Tube、Yoshida® Couplings.
LIGHTER BY DESIGN
More Comfort. More Control.
The titanium grip combines low weight, balance, and durability for comfortable handling throughout the clinical day.
APPROX. 30% LIGHTER
Compared with a comparable all-stainless-steel fiber-optic handpiece.
CONTROL YOU CAN FEEL
Stable Cutting Performance
Premium ceramic ball bearings support smooth rotation and stable cutting performance. Power output reaches 26 W for the Standard Head and 23 W for the Mini Head under the specified test conditions.
COOLING FROM EVERY ANGLE
Four-Nozzle Asymmetrical Spray
Four asymmetrical spray ports provide effective cooling around the bur, helping control heat build-up and maintain visibility during treatment.
DESIGNED FOR BETTER HYGIENE
Anti-Retraction Protection
The sealed-head anti-retraction design and non-return valve help reduce the backflow of fluids and contaminants into the handpiece, supporting clinical infection-control protocols.
QUIET MEANS COMFORT
A Calmer Clinical Environment
Low-noise operation helps create a more comfortable experience for both clinicians and patients.
Standard ≤57 dB(A) ｜ Mini ≤59 dB(A)
STANDARD OR MINI?
Choose the Head for Your Clinical Workflow
Choose the Standard Head for stronger general cutting performance. Choose the Mini Head when improved posterior access and visibility are the priority.
| Feature | Standard Head | Mini Head |
|---|---|---|
| Series | Ti-Premium LUX 700 PLUS Series | Ti-Premium LUX 700 PLUS M Series |
| Best for | General restorative procedures | Posterior and pediatric access |
| Primary advantage | Higher cutting output | Smaller head for improved access |
| Head size | Ø12.1 × H13.3 mm | Ø10.6 × H12.5 mm |
| Power | 28W @3.5 Bar | 25 W @3.5 Bar |
| Speed | 300,000–400,000 min-1 | 360,000–450,000 min-1 |
| Noise | ≤57 dB(A) | ≤59 dB(A) |
Six types of connected arrangements
Select the head size and connection system
Standard Head & Mini Head offer a wide range of international products with consistently available codes and a fast-prefix arrangement.
Please check the pre-purchase confirmation of the dental Chair or the existing coupling connection.
Standard Head

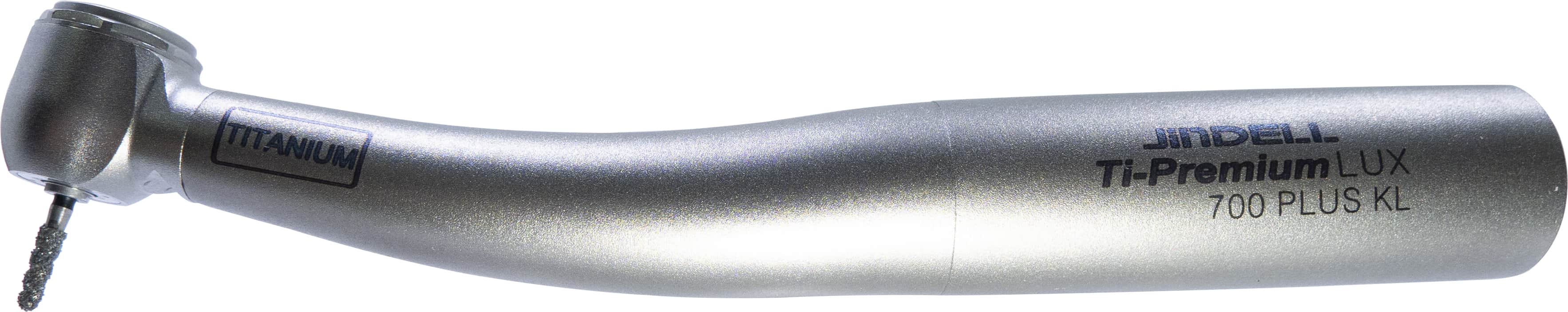

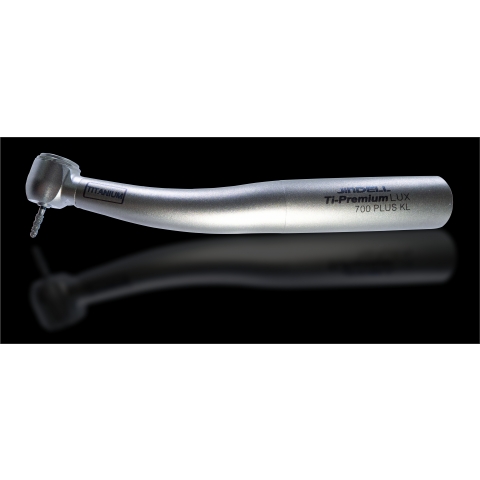

Ti-700 PLUS KL
KaVo® MULTIflex® Coupling Connection Compatible.

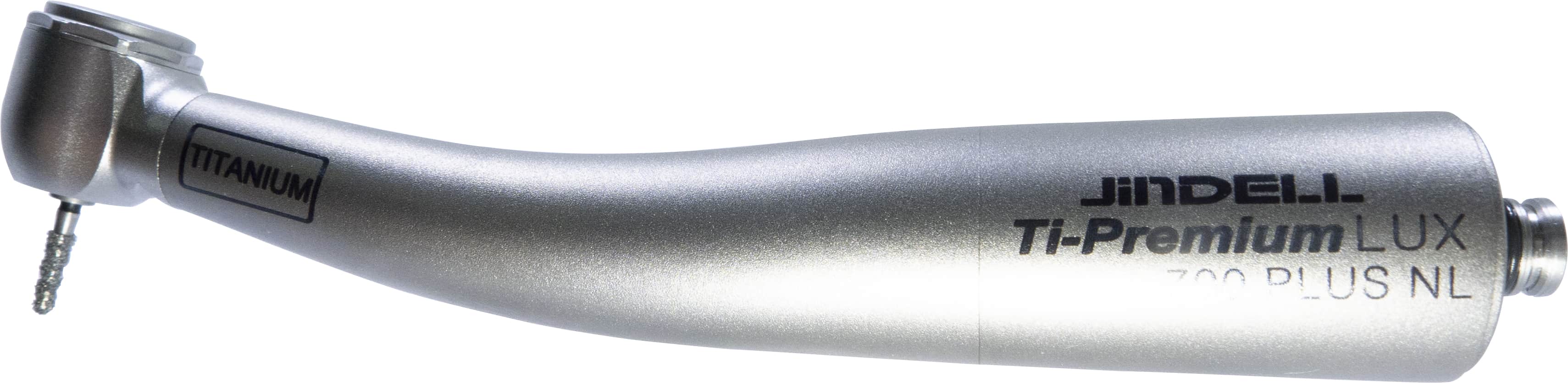

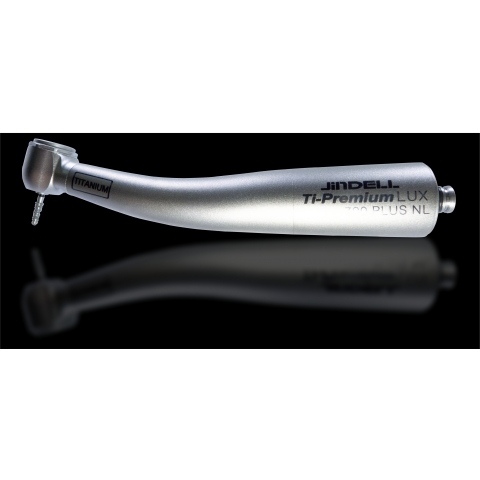

Ti-700 PLUS NL
NSK® PHATELUS PTL Coupling Connection Compatible.

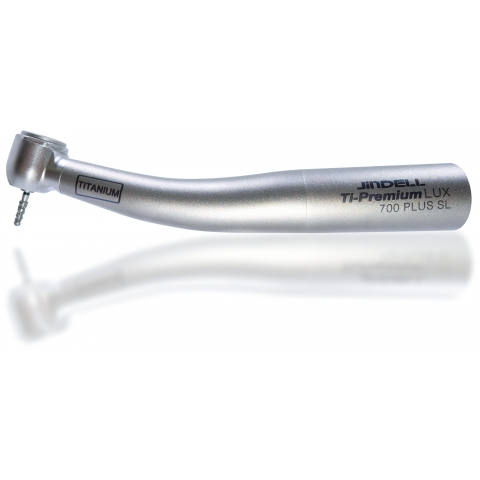

Ti-700 PLUS SL
Sirona® Coupling Connection Compatible.
Mini Head

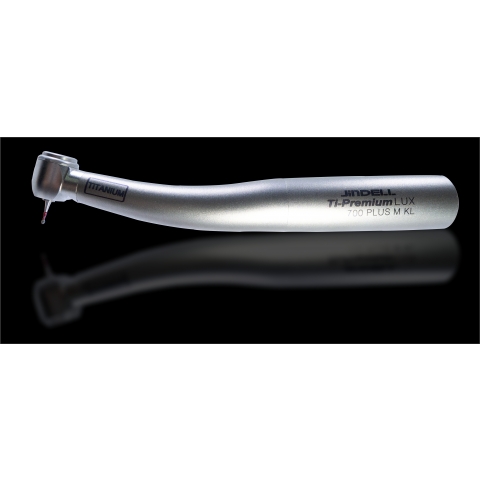

Ti-700 PLUS M KL
KaVo® MULTIflex Coupling Connection Compatible.

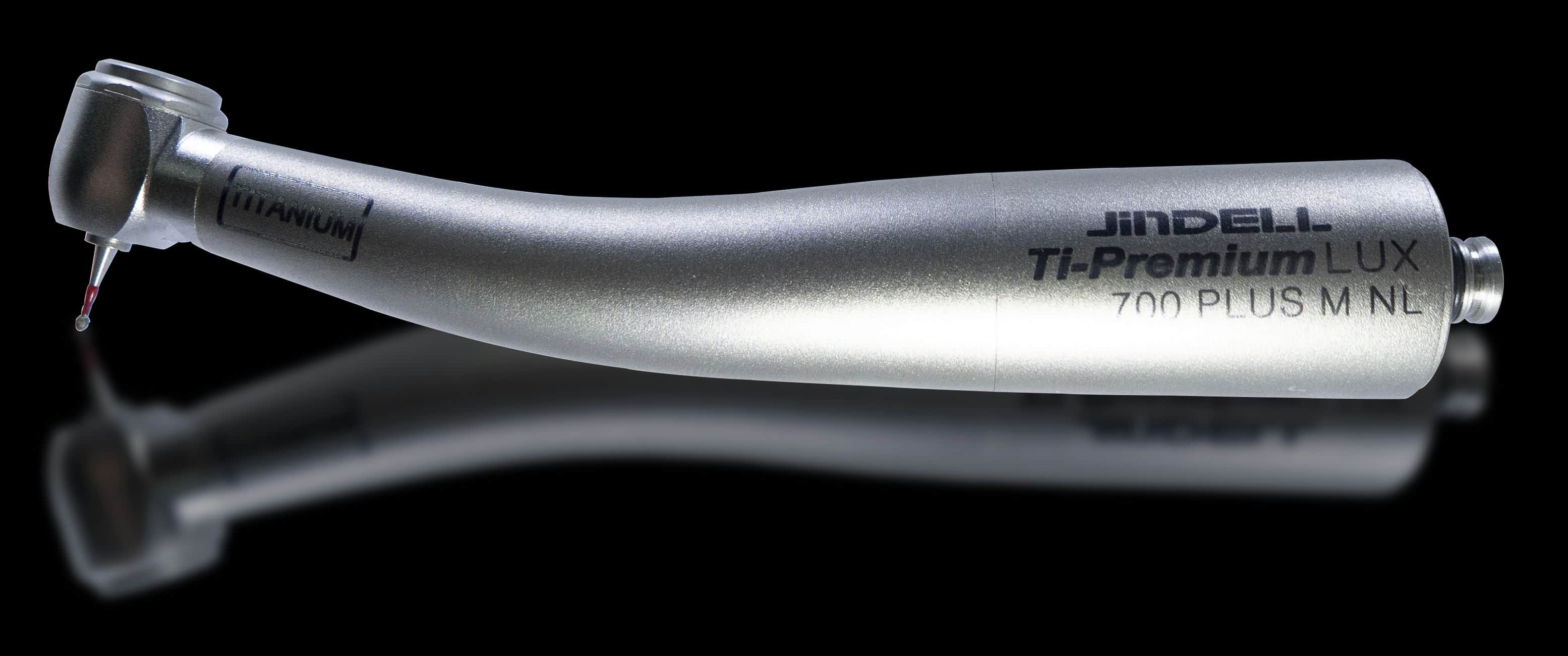

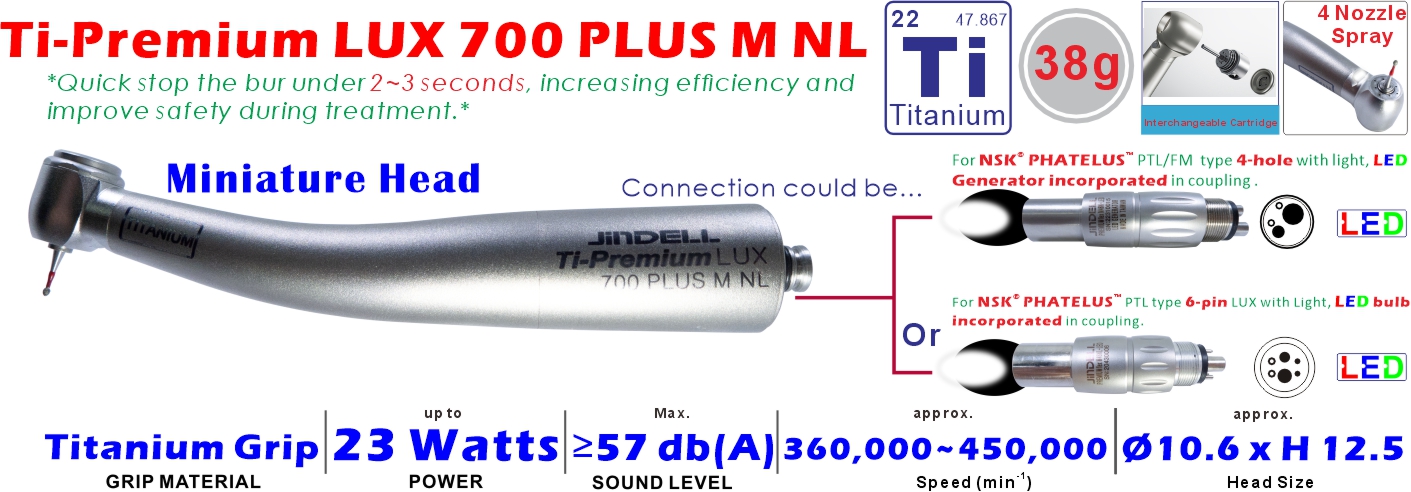

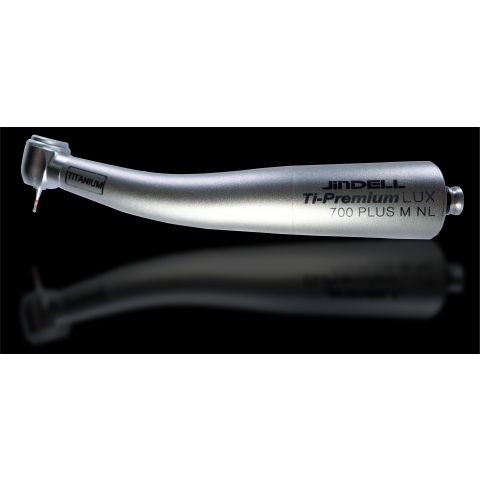

Ti-700 PLUS M NL
NSK® PHATELUS PTL Coupling Connection Compatible.
Ti-700 PLUS M SL
Sirona® Coupling Connection Compatible.
TECHNICAL SPECIFICATIONS
Built for Dependable Daily Use
| Product type | Titanium fiber-optic high-speed dental handpiece |
| Head options | Standard Head / Mini Head |
| Grip material | Titanium |
| Illumination | Fiber-optic glass rod; LED source in compatible coupling |
| Cooling | 4-nozzle asymmetrical spray |
| Bearings | Premium ceramic ball bearings |
| Bur stop | Approximately 2–3 seconds |
| Hygiene design | Anti-retraction sealed head and non-return valve |
| Sterilization | Washer-disinfectable and autoclavable up to 135°C (275°F) |
| Warranty | 24-month limited warranty |
Performance values are reference values measured under JinDELL test conditions and may vary with operating pressure, coupling configuration, and other parameters. Follow the current instructions for use.
COUPLING COMPATIBILITY OPTIONS
Designed for Global Clinical Workflows
Compatibility options are available for the following coupling or tubing systems:
- KaVo® MULTIflex couplings
- NSK® PHATELUS PTL couplings
- Sirona® couplings
- W&H® Roto Quick (RQ Type) couplings
- Bien-Air® Unifix® couplings
- Morita® main tube
- Yoshida® coupling
Compatibility depends on the selected JinDELL configuration. Third-party names and trademarks belong to their respective owners and do not imply endorsement or affiliation. Please confirm the exact connection with JinDELL before ordering.
ENGINEERED IN TAIWAN
Why JinDELL?
JinDELL has developed and manufactured dental instruments in Taiwan since 1971, supporting dental professionals, international distributors, and OEM/ODM partners.
- Dental instrument manufacturing experience since 1971
- Made in Taiwan
- ISO 13485 quality management system
- OEM/ODM and international distributor support
- Technical guidance and after-sales support
FREQUENTLY ASKED QUESTIONS
Product Questions
What is the difference between the Standard and Mini Head?
The Standard Head is designed for stronger general cutting performance. The Mini Head has a smaller profile for improved access and visibility in posterior and pediatric procedures.
How quickly does the bur stop?
The bur stops in approximately 2–3 seconds under the specified operating conditions.
Which coupling systems are available?
JinDELL offers configuration options compatible with several widely used coupling and tubing systems. Confirm your exact connection type with JinDELL before ordering.
Can the handpiece be sterilized at 135°C?
Yes. The handpiece is washer- and disinfectant-disinfectable and autoclavable up to 135°C (275°F). Always follow the current instructions for use, cleaning, and lubrication procedures.
Does JinDELL support distributors and OEM/ODM projects?
Yes. JinDELL supports international distributor inquiries, bulk orders, and qualified OEM/ODM cooperation.
