PRIME LINE TURBINES with Light Handpiece

PRIME LINE Turbines Handpiece

JinDELL PRIME LINE HANDPIECE
● Titanium Grip & Stainless Steel Head / Stainless Steel...
Detail
JinDELL PRIME LINE HANDPIECE

Prime Line OPTICS AIR DRIVEN COLLECTION


Prime Line Turbines & Accessories

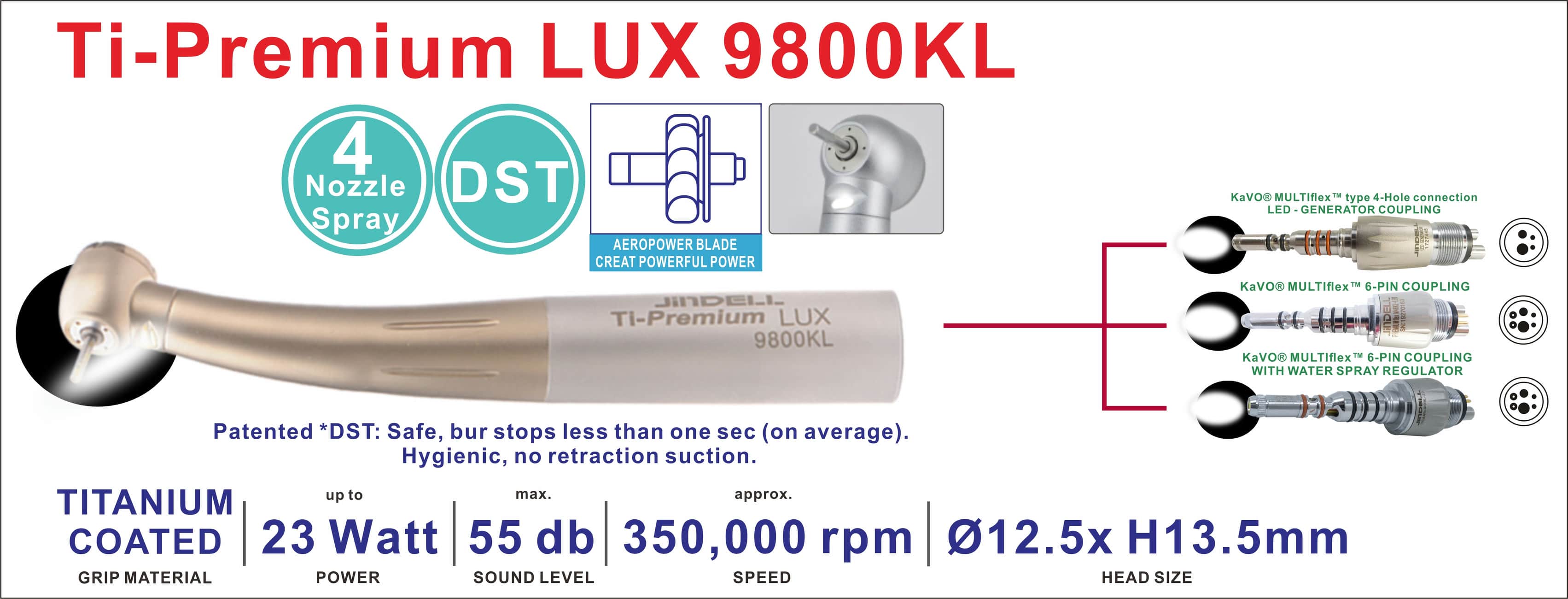

  • Ti-Premium LUX 9800KL
Ti-Premium LUX 9800KL
Ti-Premium LUX 9800KL
  • Compact Head (Ø12.5 mm x H13.5mm) / Patented Direct Stop Technology (DST) stops the bur in less than one second* and thus ensures increased safety during treatments. DST allows immediate re-commencement of work after lifting of the bur e.g. for checking of the preparation or changing of burs.  / Zero-SuctionAnti-Retraction Suction hygiene head - effectively prevent contaminated dirt and particles from penetrating the head casing. / 5 surface coating layers -Twin Colors of Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / Powerful Output- 23 watt power / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation ≦55 db(A) Sound level. / Max speed 375,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / Weight 68g. / Available to KaVo® Coupling.

  • Ti-Premium LUX 800KL
Ti-Premium LUX 800 KL
Ti-Premium LUX 800KL
  • Compact Head (Ø12.5 mm x H13.5mm) / Anti-Retraction Suction hygiene head. / High robustness and Lightweight due to make of Titanium Grip and stainless steel strong head and surface finish. / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation ≦57 db(A) Sound level./ Max speed 350,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic /  23 watt power / Light Weight 54g. / Available to KaVo® Coupling.

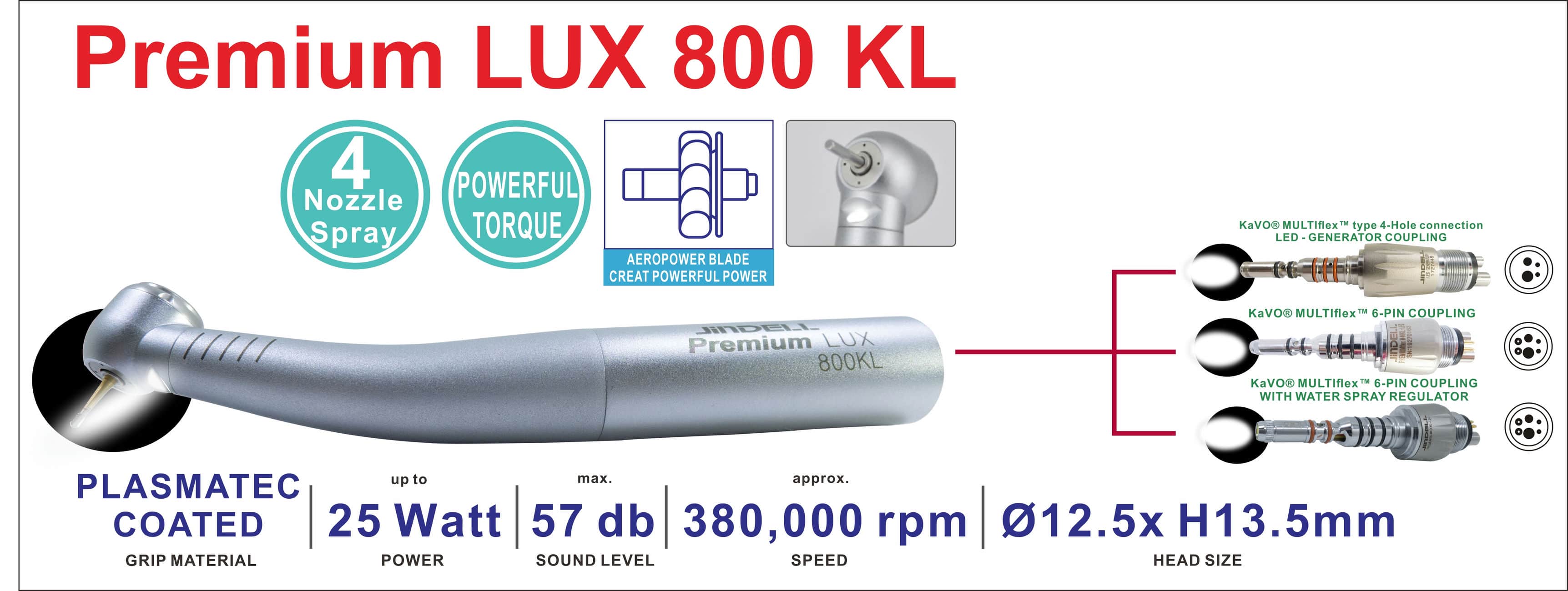

  • Premium LUX 800 KL
Premium LUX 800 KL
Premium LUX 800KL
  • Compact Head (Ø12.5 mm x H13.5mm) / Anti-Retraction Suction hygiene head. / The long-term stable High hardness chrome plated Grip and Head ensure easy to clean and have a good grip due to a surface finish. (PLASMATEC COATED) / Powerful Output- 25 watt power / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation ≦57 db(A) Sound level. / Max speed 400,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / Weight 68g. / Available to KaVo® Coupling.

  • Premium LUX 800 NL
Premium LUX 800NL
Premium LUX 800NL
  • Compact Head (Ø12.5 mm x H13.5mm) / Anti-Retraction Suction hygiene head. / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / Powerful Output- 25 watt power / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation ≦57 db(A) Sound level. / Max speed 400,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / Weight 65g. / Available to NSK® Coupling.

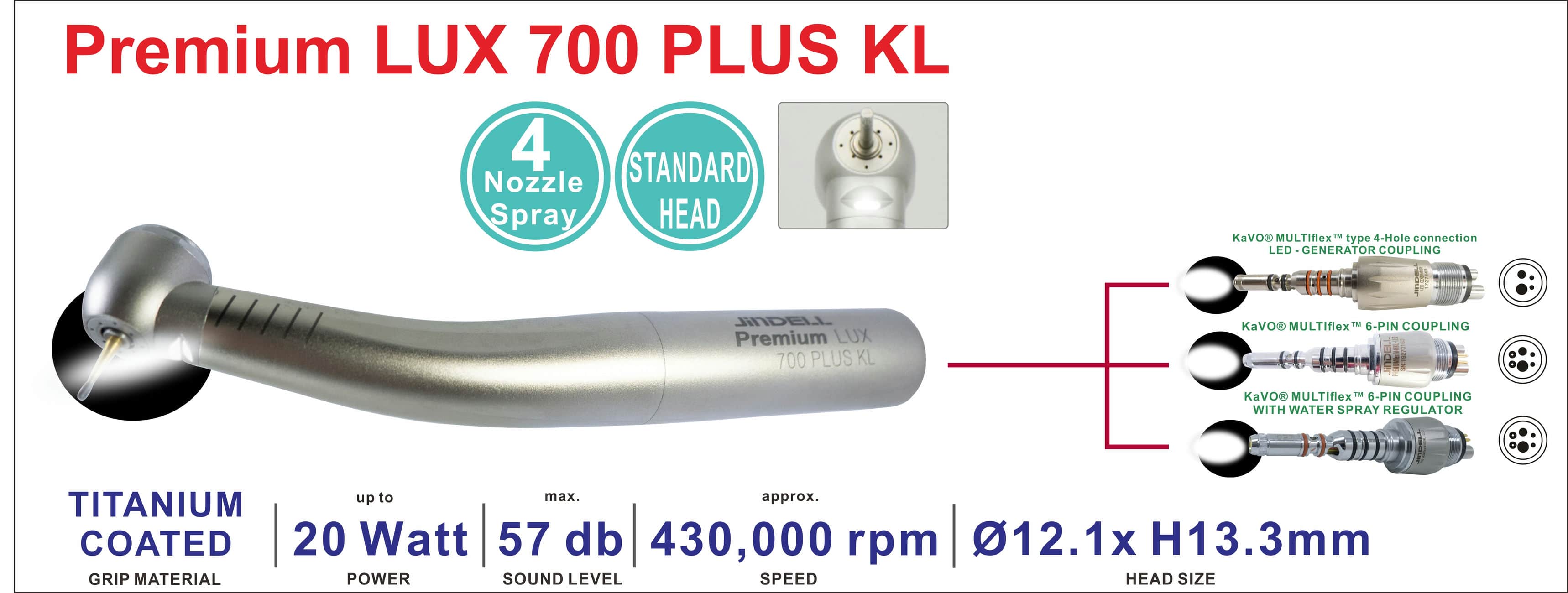

  • Premium LUX 700 PLUS KL
Premium LUX 700 KL
Premium LUX 700 PLUS KL
  • Standard Head  (Ø12.1 mm x H13.3mm) / Canister Turbine cartridge easily to replacement / Anti-Retraction Suction hygiene head. / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / 4-nozzle asymmetrical mixed optimally cooling spray. / Quiet, vibration-free operation≦57 db(A) Sound level. / Max speed 430,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 20 watt power / Weight 68g. / Available to KaVo® Coupling.

  • Premium LUX 700 PLUS NL
Premium LUX 700 PLUS NL
Premium LUX 700 PLUS NL
  • Standard Head (Ø12.1 mm x H13.3mm) / Canister Turbine cartridge easily to replacement / Anti-Retraction Suction hygiene head. / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / 4-nozzle asymmetrical mixed optimally cooling spray / Quiet, vibration-free operation≦57 db(A) Sound level. / Max speed 430,000 rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 20 watt power / Weight 65g. / Available to NSK® Coupling.

  • Premium LUX 700 PLUS M KL
Premium LUX 700 PLUS M KL
Premium LUX 700+ KL
  • Miniature Head (Ø10.6 mm x H12.4mm) / Canister Turbine cartridge easily to replacement / Anti-Retraction Suction hygiene head. / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles.  / 4-nozzle asymmetrical mixed optimally cooling spray. / Quiet, vibration-free operation ≦57 db Sound level. / Max speed 450k rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 16 watt power / Weight 68g. / Available to KaVo® Coupling.

  • Premium LUX 700 PLUS M NL
Premium LUX 700 PLUS M NL
Premium LUX 700+ NL
  • Miniature Head (Ø10.6 mm x H12.4mm) / Canister Turbine cartridge easily to replacement / Anti-Retraction Suction hygiene head. / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles.  / 4-nozzle asymmetrical mixed optimally cooling spray. / Quiet, vibration-free operation ≦57 db Sound level. / Max speed 450k rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 16 watt power / Weight 65g. / Available to NSK® Coupling.

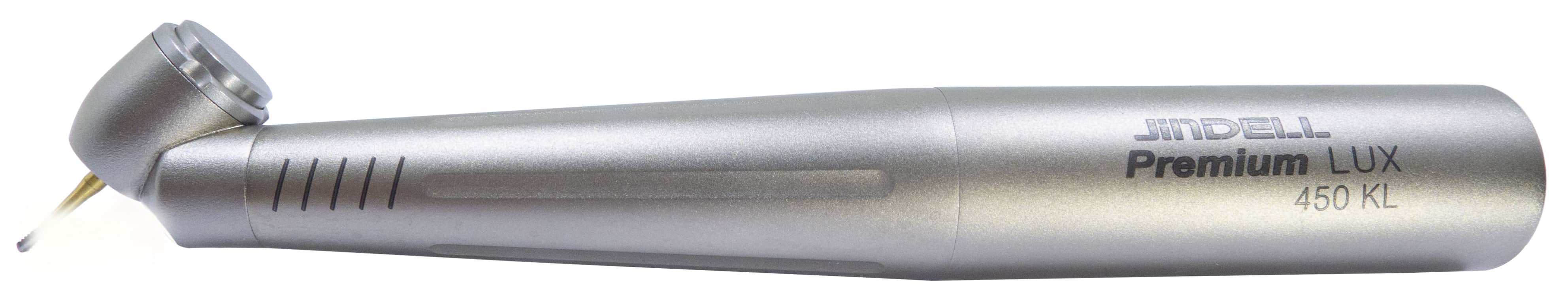

  • Premium LUX 450 KL
Premium LUX 450 KL
Premium LUX 450KL
  • Miniature Head (Ø10.6 mm x H12.4mm) / Canister Turbine cartridge easily to replacement  / Anti-Retraction Suction hygiene head. / The unique 45-degree angled head - Ergonomic handling and ease of use and to access hard-to-reach areas for sectioning and extraction of third molars and other impacted teeth. / Air is exhausted through rear of handpiece-No air contamination into cutting area / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / Single directs a pure water jet (not Mist)- ensure safe and effective treatment during a variety of surgical procedures./ Quiet, vibration-free operation≦60 db(A) Sound level. / Max speed 450k rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 16 watt power / Weight 68g. / Available to KaVo® Coupling.

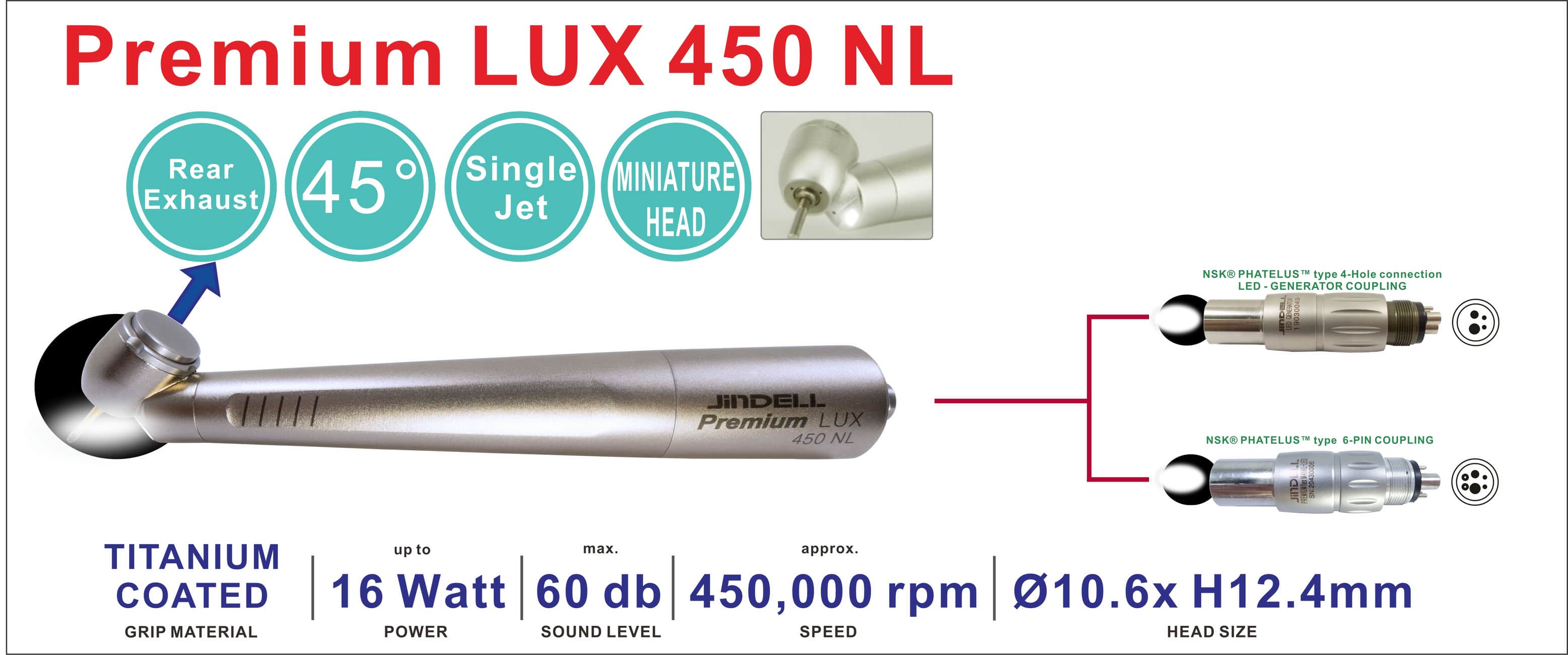

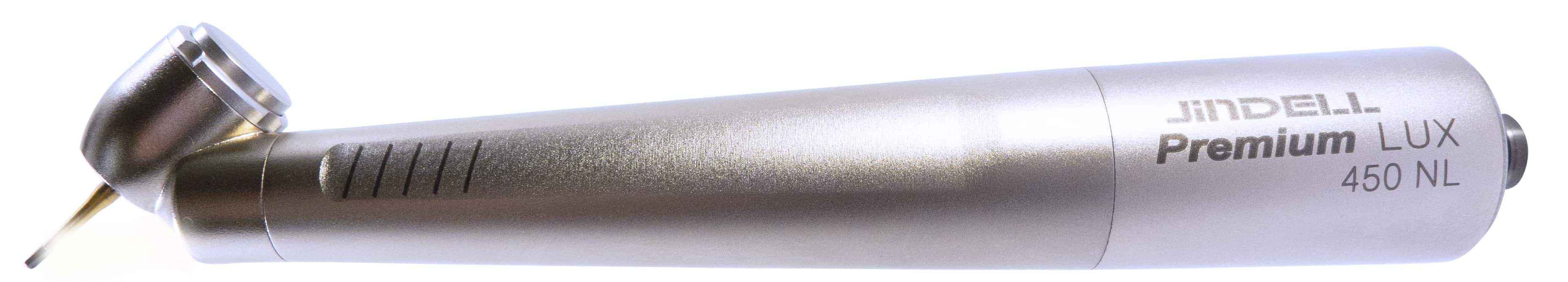

  • Premium LUX 450 NL
Premium LUX 450 NL
Premium LUX 450NL
  • Miniature Head (Ø10.6 mm x H12.4mm) / Canister Turbine cartridge easily to replacement  / Anti-Retraction Suction hygiene head. / The unique 45-degree angled head - Ergonomic handling and ease of use and to access hard-to-reach areas for sectioning and extraction of third molars and other impacted teeth. / Air is exhausted through rear of handpiece-No air contamination into cutting area / 5 surface coating layers -Titanium Coating for Scratch-resistant surface and for over 1000 sterilization cycles. / Single directs a pure water jet (not Mist)- ensure safe and effective treatment during a variety of surgical procedures./ Quiet, vibration-free operation≦60 db(A) Sound level. / Max speed 450k rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 16 watt power / Weight 65g. / Available to NSK® Coupling.

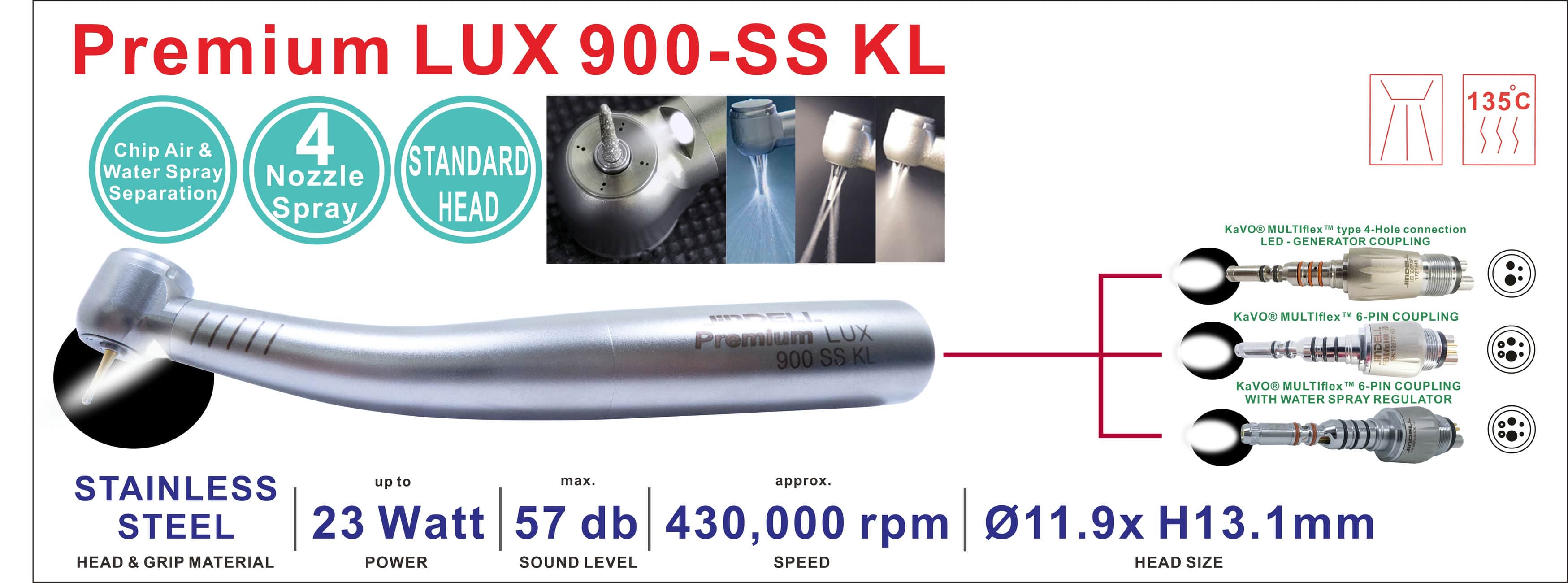

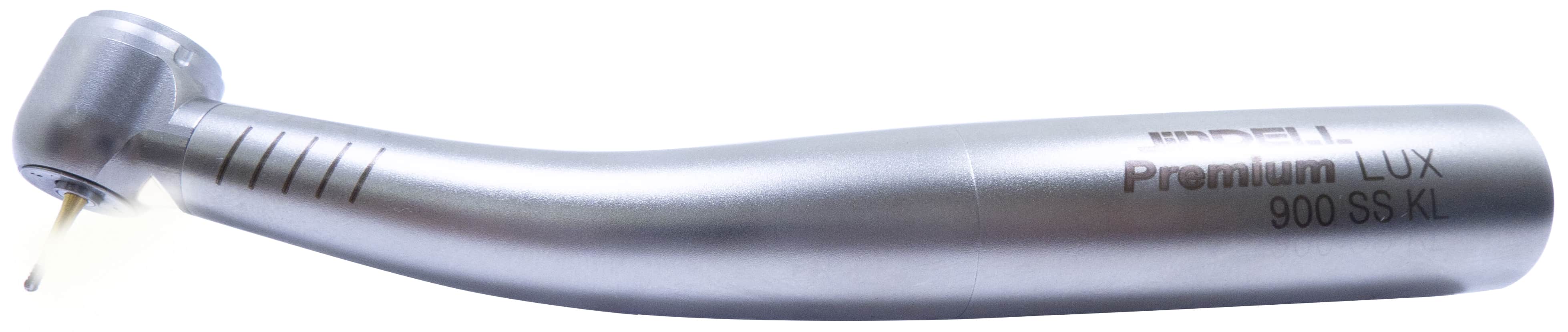

  •  Premium LUX 900-SS KL
Premium LUX 900-SS KL
Premium LUX 900-SS KL
  • Standard Head (Ø11.9 mm x H13.1mm) / Anti-Retraction Suction hygiene head. / High robustness due to make of Stainless Steel Grip and One piece design head and surface finish. / 4-nozzle chip air & water separation optimally cooling spray- also available to water jet spray- Reducing the Aerosols. / Quiet, vibration-free operation≦57 db(A) Sound level. / Max speed 430k rpm / Push button Chuck & Back cap / Robust Ceramic ball bearings / Glass rod Fiber optic / 23 watt power / Light Weight 63g. / Available to KaVo® Coupling.

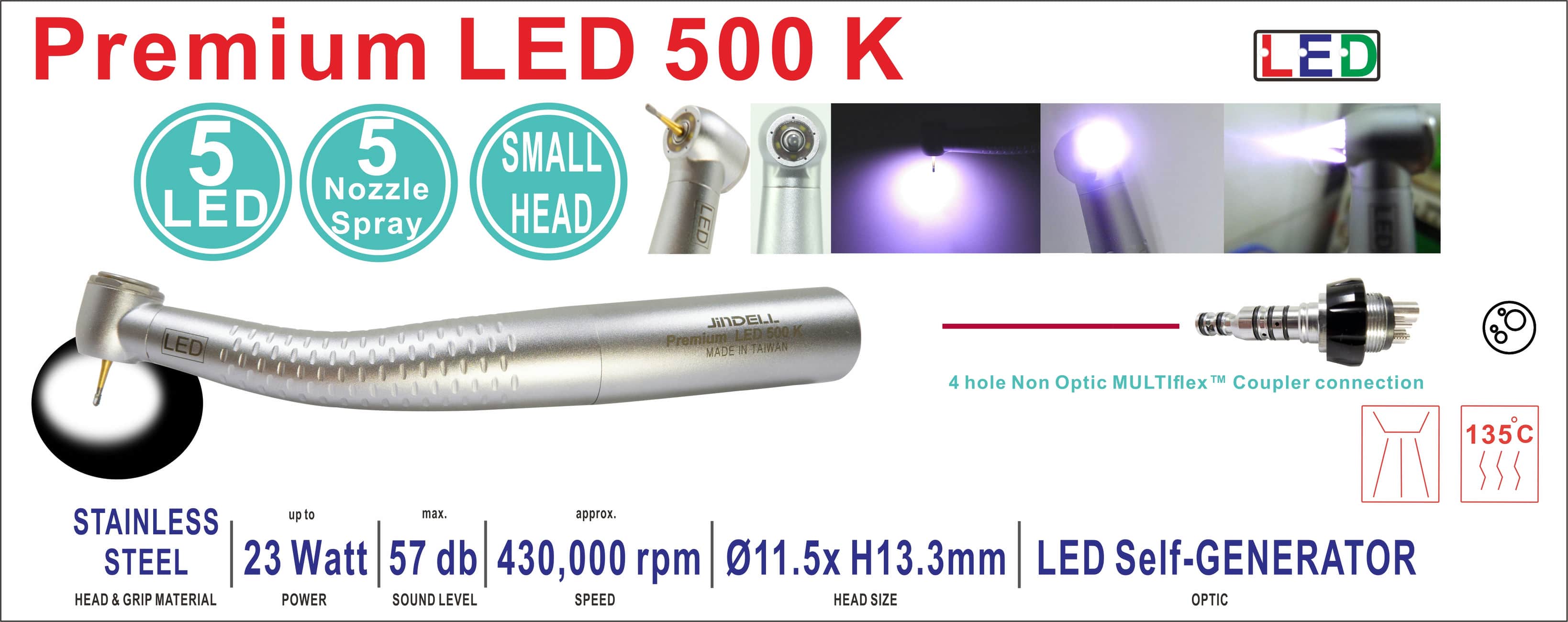

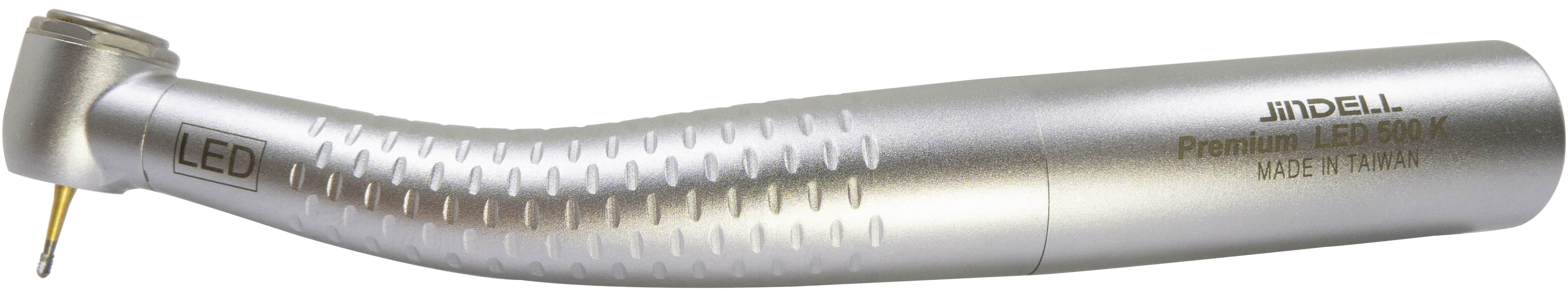

  • Premium LED 500 K
Premium LED 500-K  PREMIUMflex M46K
Premium LED 500K
  • Optimal illumination view with Ring type 5- LED. / High-brightness and shadow-free. / Higher brightness than normally Fiber Optic Handpiece. / LED Self-Generator Inside. / 5-nozzle optimally colling spray. / Small Head (Ø11.5 x H 13.3 mm) design with 21W high torque. / Direct 4 hole connection handpiece tubing connection to enjoy the light source. / High-strength, impact-resistant stainless steel grip & head. / Non-slip grip increases control. / Anti-Retraction Hygiene Head / Max speed 430, 000 rpm / Robust Ceramic ball bearings / Push Button / Quiet, vibration-free operation≤57 db(A) Sound level.

ACCESSORIES
  • KaVo® Type 6-Pin LED Couplings
  • PREMIUMflex M46KWL- LED
PREMIUMflex M46KWL-LED
PREMIUMflex M46KWL-LED
  • For KaVo® Fiber Optic MULTIflex 6-pin LUX fiber optic Tubing / with Water Spray Regulator /with water filter / Anti-Retraction Valve  / Stainless Steel Grip /  Titanium coating / LED bulb incorporated in coupling / Not Sterilizable.

  • PREMIUMflex M46KL- LED
PREMIUMflex M46KL-LED
PREMIUMflex M46KL-LED
  • For KaVo® Fiber Optic MULTIflex 6-pin LUX fiber optic Tubing / Anti-Retraction Valve /with water filter / Stainless Steel Grip /  Titanium coating / LED Bulb incorporated in coupling / Not Sterilizable.

  • KaVo® Type 4-pin LED Generator Coupling
  • PREMIUMflex M46K- LED
PREMIUMflex M46K-LED
PREMIUMflex M46K-LED
  • 4-hole connection tubing / For KaVo® Fiber Optic MULTIflex LUX type Handpiece / Anti-Retraction Valve  / Stainless Steel Grip /  Titanium coating / LED Bulb and Generator incorporated in coupling / Not Sterilizable.

  • KaVo® Type 4-pin  Generator Coupling
  • PREMIUMflex M46K
PREMIUMflex M46K

PREMIUMflex M46K
  • 4-hole connection tubing / For KaVo® Non-Optic MULTIflex™ type Handpiece / Anti-Retraction Valve /with water filter / Stainless Steel Grip / Not Sterilizable.

  • NSK® Type 6-Pin LED Couplings
  • PREMIUMflex M46NL- LED
PREMIUMflex M46NL-LED
PREMIUMflex M46NL-LED
  • For NSK® PHATELUS 6-pin fiber optic tubing / Anti-Retraction Valve  / Stainless Steel Grip /  Titanium coating / LED Bulb incorporated in coupling / Not Sterilizable.

  • NSK® Type 4-pin LED Generator Coupling
  • PREMIUMflex M46N- LED
PREMIUMflex M46N-LED
PREMIUMflex M46N-LED
  • 4-hole connection tubing / For Fiber Optic NSK® PHATELUS LUX type Handpiece / Anti-Retraction Valve  / Stainless Steel Grip /  Titanium coating / LED Bulb and Generator incorporated in coupling / Not Sterilizable.
REPLACEMENT LIGHT BULBS
K-Xeon Bulb
KaVo type Replacement Xeon Bulb
  • Replacement XENON bulb for use with all KaVo® MULTIflex™ lux 6-pin couplers. / It is made out of high lux Xenon for brighter output than original brand / Higher spot intensity / Excellent Brightness / Longer life and performance reliability / Made in Japan.

  • K-LED Bulb
K-LED Bulb KaVo type Replacement LED Bulb
  • Replacement LED bulb for use with all KaVo® MULTIflex™ lux 6-pin couplers. / Simply, Less self-heating, Lesser Wattage, Durable.
    Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.

  • N-LED Bulb
N-LED Bulb NSK type Replacement LED Bulb
  • Replacement LED bulb for use with all NSK® Mach™/ Phatelus™/ FlexiQuick™ PTL-CL-III/ 4HV style lux 6-pin couplers. / Simply, Less self-heating, Lesser Wattage, Durable. / Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.

  • WT-LED Bulb
WT-LED Bulb W&H Turbine type Replacement LED Bulb
  • Replacement LED bulb for use with all W&H®  / A-dec® lux Turbine 6-pin old style couplers. / Simply, Less self-heating, Lesser Wattage, Durable. / Semiconductor white Daylight color LED. / Over Optimal 40,000+ LUX illumination. / Daylight neutral: below 6500K Avg. color temperature. / Recommand voltage: below 3.2VDC.







KaVo® and MULTIflex™ are trademark of KaVo Dental GmbH, Germany.
NSK® PHATELUS™ PTL are trademark of NSK Nakanishi Inc., Japan.
